PIC18F2585/2680/4585/4680

DS39625C-page 158

Preliminary

13.2

Timer2 Interrupt

Timer2 also can generate an optional device interrupt.

The Timer2 output signal (TMR2-to-PR2 match)

provides the input for the 4-bit output counter/

postscaler. This counter generates the TMR2 match

interrupt flag which is latched in TMR2IF (PIR1<1>).

The interrupt is enabled by setting the TMR2 Match

Interrupt Enable bit, TMR2IE (PIE1<1>).

A range of 16 postscale options (from 1:1 through 1:16

inclusive) can be selected with the postscaler control

bits, T2OUTPS3:T2OUTPS0 (T2CON<6:3>).

13.3

TMR2 Output

The unscaled output of TMR2 is available primarily to

the CCP1 modules, where it is used as a time base for

operations in PWM mode.

Timer2 can be optionally used as the shift clock source

for the MSSP module operating in SPI mode.

Additional information is provided in Section 17.0

“Master Synchronous Serial Port (MSSP) Module”.

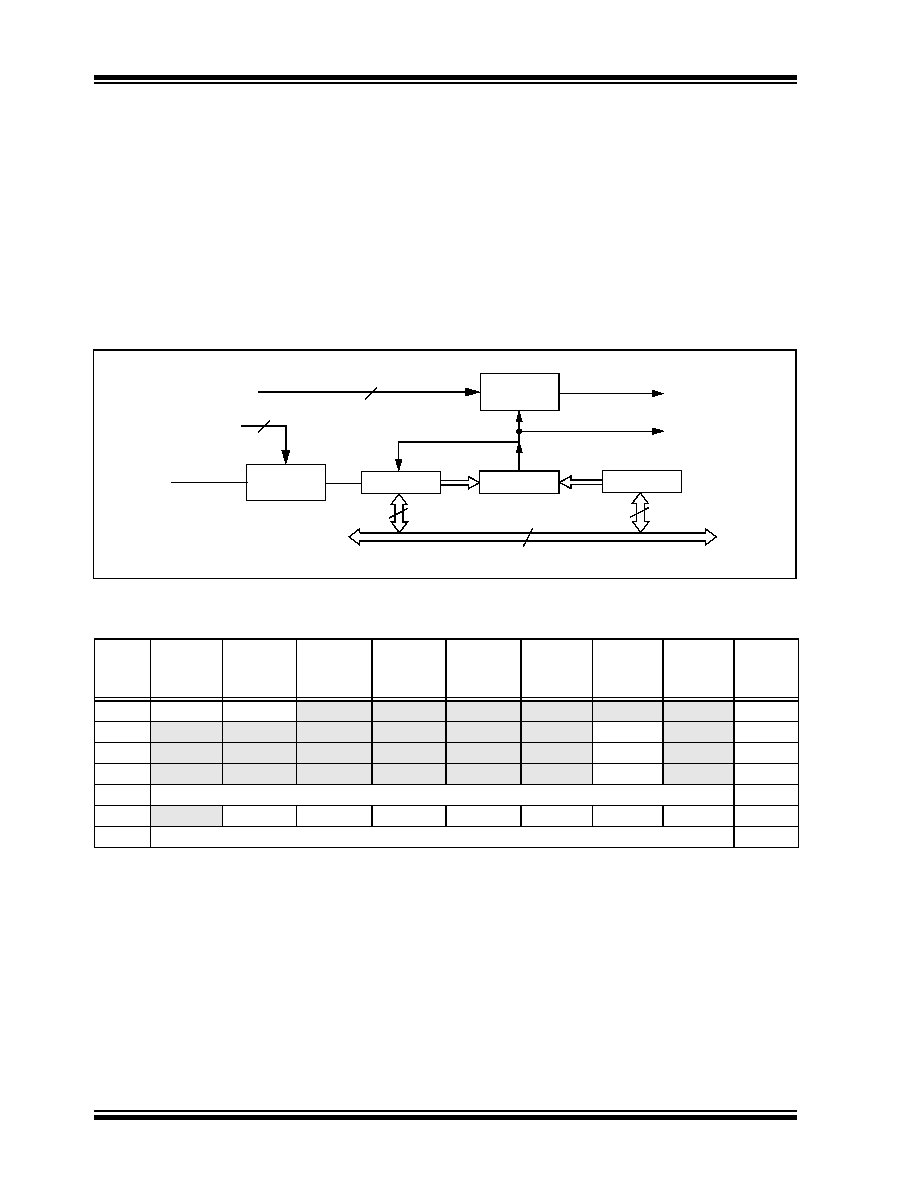

FIGURE 13-1:

TIMER2 BLOCK DIAGRAM

TABLE 13-1:

REGISTERS ASSOCIATED WITH TIMER2 AS A TIMER/COUNTER

Comparator

TMR2 Output

TMR2

Postscaler

Prescaler

PR2

FOSC/4

1:1 to 1:16

1:1, 1:4, 1:16

T2OUTPS3:T2OUTPS0

T2CKPS1:T2CKPS0

Set TMR2IF

Internal Data Bus

Reset

TMR2/PR2

(to PWM or MSSP)

Match

Name

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

Reset

Values

on page

INTCON GIE/GIEH

PEIE/GIEL

TMR0IE

INT0IE

RBIE

TMR0IF

INT0IF

RBIF

PIR1

PSPIF(1)

ADIF

RCIF

TXIF

SSPIF

CCP1IF

TMR2IF

TMR1IF

PIE1

PSPIE(1)

ADIE

RCIE

TXIE

SSPIE

CCP1IE

TMR2IE

TMR1IE

IPR1

PSPIP(1)

ADIP

RCIP

TXIP

SSPIP

CCP1IP

TMR2IP

TMR1IP

TMR2

Timer2 Register

T2CON

—

T2OUTPS3 T2OUTPS2 T2OUTPS1 T2OUTPS0 TMR2ON

T2CKPS1 T2CKPS0

PR2

Timer2 Period Register

Legend: — = unimplemented, read as ‘0’. Shaded cells are not used by the Timer2 module.

Note 1:

These bits are unimplemented on PIC18F2X8X devices; always maintain these bits clear.
