DS39625C-page 23

PIC18F2585/2680/4585/4680

2.0

OSCILLATOR

CONFIGURATIONS

2.1

Oscillator Types

PIC18F2585/2680/4585/4680 devices can be operated

in ten different oscillator modes. The user can program

the Configuration bits, FOSC3:FOSC0, in Configuration

Low-Power Crystal

Crystal/Resonator

High-Speed Crystal/Resonator

HSPLL High-Speed Crystal/Resonator

with PLL enabled

External Resistor/Capacitor with

FOSC/4 output on RA6

RCIO

External Resistor/Capacitor with I/O

on RA6

INTIO1 Internal Oscillator with FOSC/4 output

on RA6 and I/O on RA7

INTIO2 Internal Oscillator with I/O on RA6

and RA7

External Clock with FOSC/4 output

10. ECIO

External Clock with I/O on RA6

2.2

Crystal Oscillator/Ceramic

Resonators

In XT, LP, HS or HSPLL Oscillator modes, a crystal or

ceramic resonator is connected to the OSC1 and

OSC2 pins to establish oscillation. Figure 2-1 shows

the pin connections.

The oscillator design requires the use of a parallel cut

crystal.

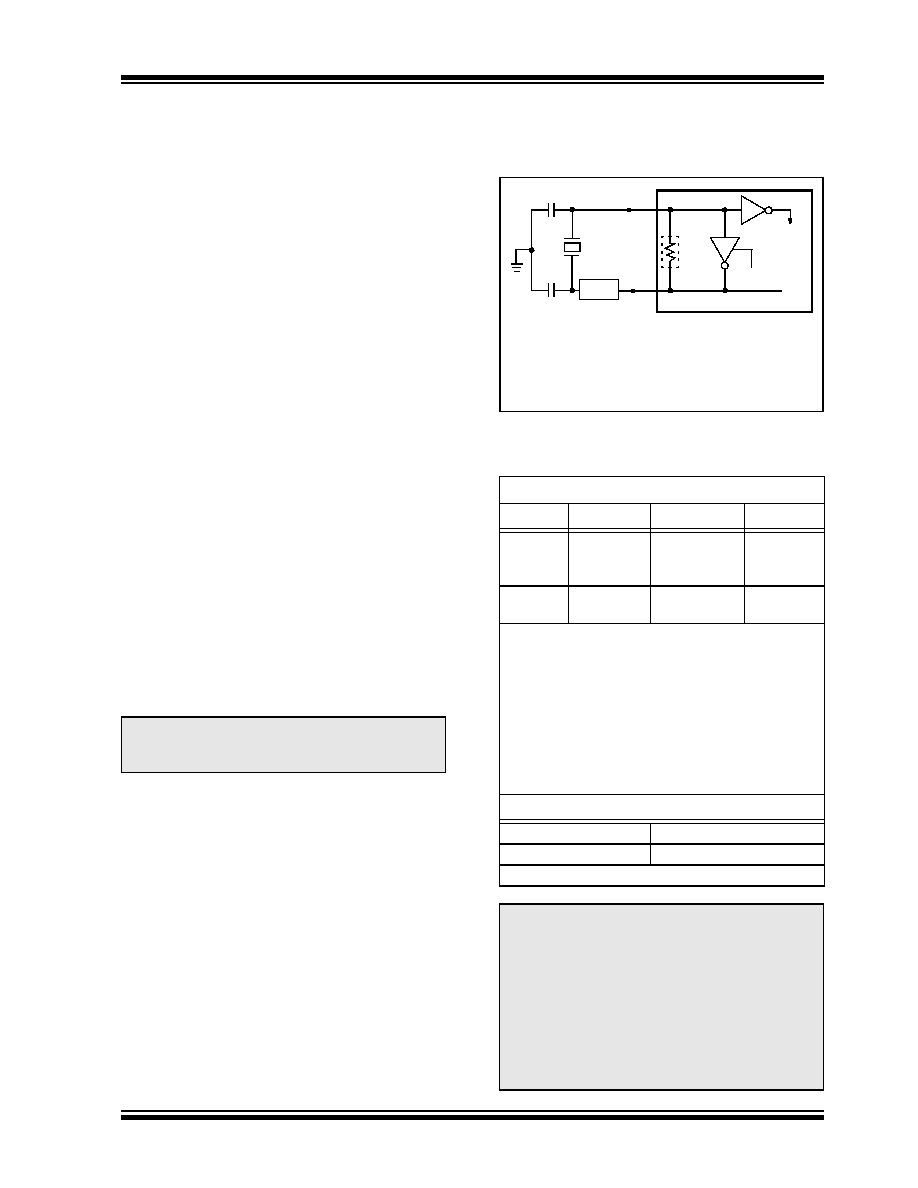

FIGURE 2-1:

CRYSTAL/CERAMIC

RESONATOR OPERATION

(XT, LP, HS OR HSPLL

CONFIGURATION)

TABLE 2-1:

CAPACITOR SELECTION FOR

CERAMIC RESONATORS

Note:

Use of a series cut crystal may give a

frequency out of the crystal manufacturer’s

specifications.

Typical Capacitor Values Used:

Mode

Freq

OSC1

OSC2

455 kHz

2.0 MHz

4.0 MHz

56 pF

47 pF

33 pF

56 pF

47 pF

33 pF

8.0 MHz

16.0 MHz

27 pF

22 pF

27 pF

22 pF

Capacitor values are for design guidance only.

These capacitors were tested with the resonators

listed below for basic start-up and operation. These

values are not optimized.

Different capacitor values may be required to produce

acceptable oscillator operation. The user should test

the performance of the oscillator over the expected

VDD and temperature range for the application.

See the notes on page 24 for additional information.

Resonators Used:

455 kHz

4.0 MHz

2.0 MHz

8.0 MHz

16.0 MHz

Note:

When using resonators with frequencies

above 3.5 MHz, the use of HS mode,

rather than XT mode, is recommended.

HS mode may be used at any VDD for

which the controller is rated. If HS is

selected, it is possible that the gain of the

oscillator will overdrive the resonator.

Therefore, a series resistor should be

placed between the OSC2 pin and the

resonator. As a good starting point, the

recommended value of RS is 330

Ω.

Note 1:

See Table 2-1 and Table 2-2 for initial values of

C1 and C2.

2: A series resistor (RS) may be required for AT

strip cut crystals.

3: RF varies with the oscillator mode chosen.

C1(1)

C2(1)

XTAL

OSC2

OSC1

(3)

Sleep

Logic

PIC18FXXXX

RS(2)

Internal
