DS39625C-page 61

PIC18F2585/2680/4585/4680

5.0

MEMORY ORGANIZATION

There are three types of memory in PIC18 Enhanced

microcontroller devices:

• Program Memory

• Data RAM

• Data EEPROM

As Harvard architecture devices, the data and program

memories use separate busses; this allows for con-

current access of the two memory spaces. The data

EEPROM, for practical purposes, can be regarded as

a peripheral device, since it is addressed and accessed

through a set of control registers.

Additional detailed information on the operation of the

Flash program memory is provided in Section 6.0

“Flash

Program

Memory”.

Data

EEPROM

discussed separately in Section 7.0 “Data EEPROM

Memory”.

5.1

Program Memory Organization

PIC18 microcontrollers implement a 21-bit program

counter, which is capable of addressing a 2-Mbyte

program memory space. Accessing a location between

the upper boundary of the physically implemented

memory and the 2-Mbyte address will return all ‘0’s (a

NOP

instruction).

The

PIC18F2585

and

PIC18F4585

each

have

48 Kbytes of Flash memory and can store up to 24,576

single-word

instructions.

The

PIC18F2680

and

PIC18F4680 each have 64 Kbytes of Flash memory

and can store up to 32,768 single-word instructions.

PIC18 devices have two interrupt vectors. The Reset

vector address is at 0000h and the interrupt vector

addresses are at 0008h and 0018h.

The program memory maps for PIC18FX585 and

PIC18FX680 devices are shown in Figure 5-1.

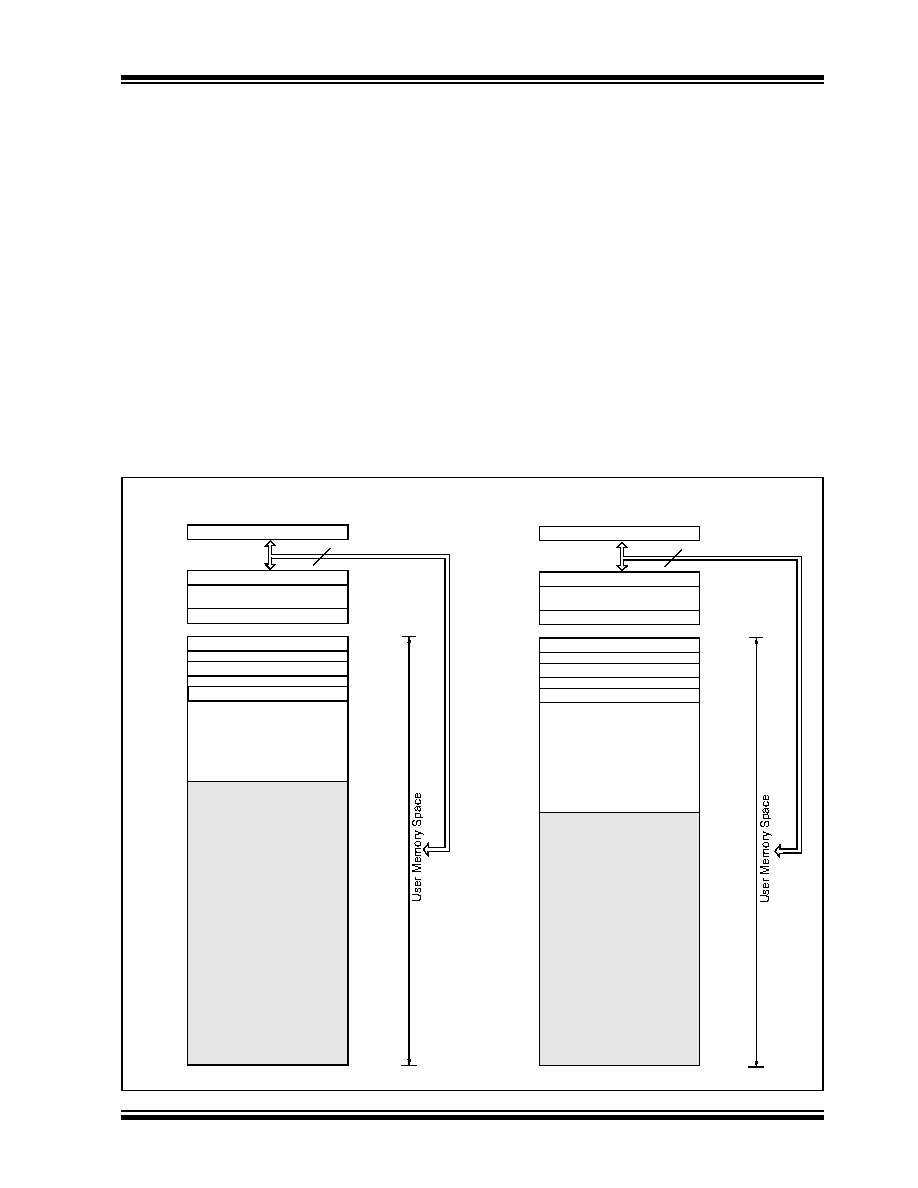

FIGURE 5-1:

PROGRAM MEMORY MAP AND STACK FOR

PIC18F2585/2680/4585/4680 DEVICES

PC<20:0>

Stack Level 1

•

Stack Level 31

Reset Vector

Low Priority Interrupt Vector

•

CALL,RCALL,RETURN

RETFIE,RETLW

0000h

0018h

On-Chip

Program Memory

High Priority Interrupt Vector 0008h

1FFFFFh

C000h

BFFFh

Read ‘0’

200000h

PC<20:0>

Stack Level 1

•

Stack Level 31

Reset Vector

Low Priority Interrupt Vector

•

CALL,RCALL,RETURN

RETFIE,RETLW

0000h

0018h

10000h

FFFFh

On-Chip

Program Memory

High Priority Interrupt Vector 0008h

Read ‘0’

1FFFFFh

200000h

PIC18X585

PIC18FX680
