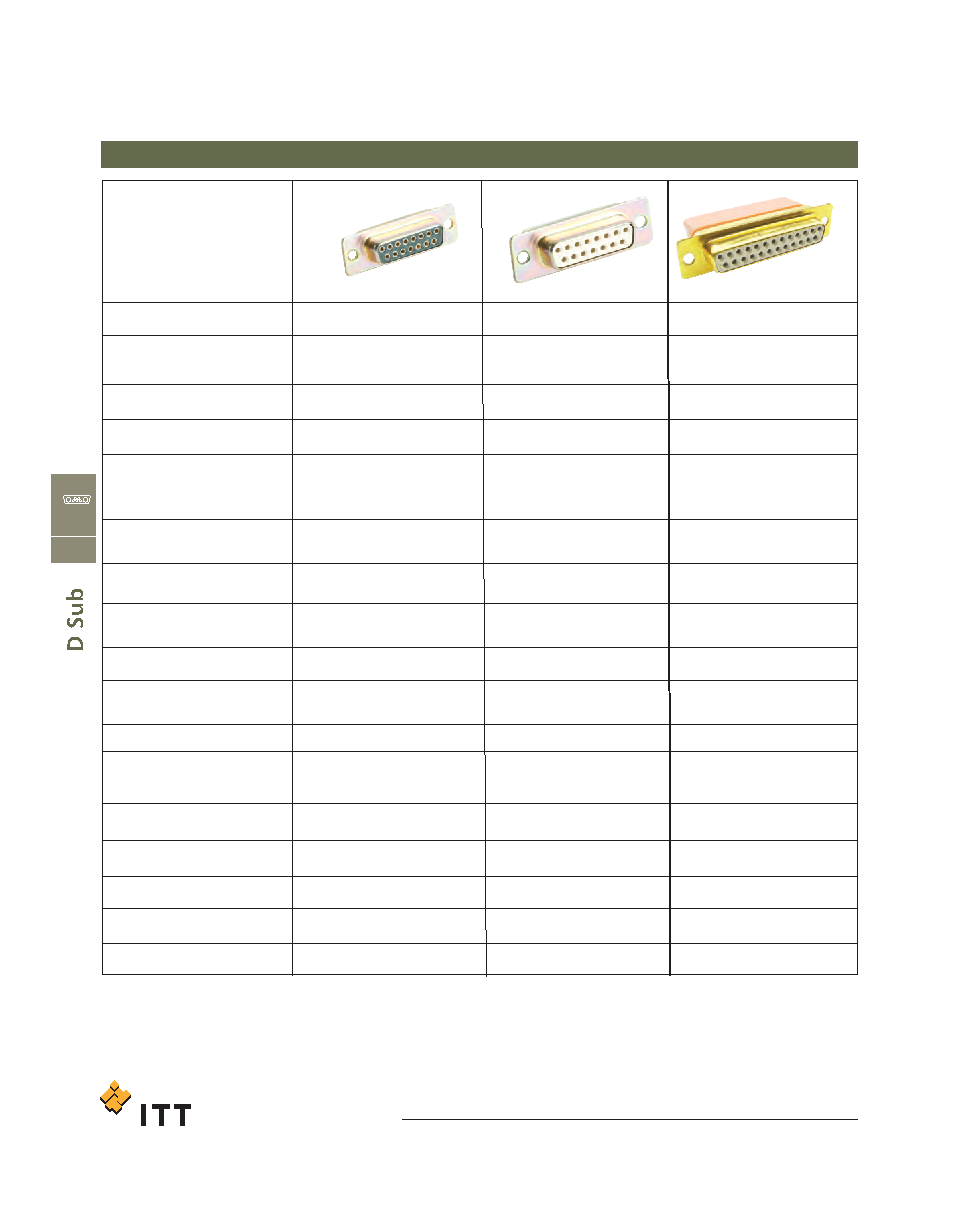

D Subminiature Selector Guide

Series

Wire Gauge Range

AWG

Mating Cycles

RoHS confirm

Layout

Operating Voltage

Current Rating

(Amps)

Contact Resistance

Operating Temperature

Mil Salt Spray Test

Resistance in hours

Shell Material

Shell Finish

Insulator

Contact Type

Contact Material

Contact Finish

Page Number

D*M

AWG 18-30

200,500

Available

9, 15, 25, 37, 50

1000 VAC*

7,5 A max

10 milli Ohm max

-55°C/125°C

20 hours (Mil:48 hours)

Steel

RoHS - Tin/Nickel

Yellow chromate over

cadmium or zinc

Thermoplastic,

PCT UL 94V-0

Turned

Copper Alloy

Gold over Nickel

C-9

D- Subminiature

D*MA

AWG 18-30

200,500

Available

9, 15, 25, 37, 50,

15, 26, 44, 62, 78, 104

(high density)

1000 VAC*

7,5 A max

10 milli Ohm max

-55°C/125°C

48 hours

Steel

RoHS - Tin/Nickel

Yellow chromate over

cadmium or zinc

Thermoplastic,

PCT UL 94V-0

Turned

Copper Alloy

Gold over Nickel

C-11

GD*

AWG 18-30

500

9, 15, 25, 37, 50,

15, 26, 44, 62, 78, 104

(high density)

1000 VAC*

7,5 A max

10 milli Ohm max

-65°C/150°C

48 hours

Steel

Yellow chromate over

cadmium or zinc

Thermoplastic,

PCT UL 94V-0

Turned

Copper Alloy

Gold over Nickel

C-37

ca_C1-C61.qxd:Layout 1

2/10/11

9:32 AM

Page 4
