DBMZ95SN101 datasheet(24/62 Pages) ITT

24 / 62 page

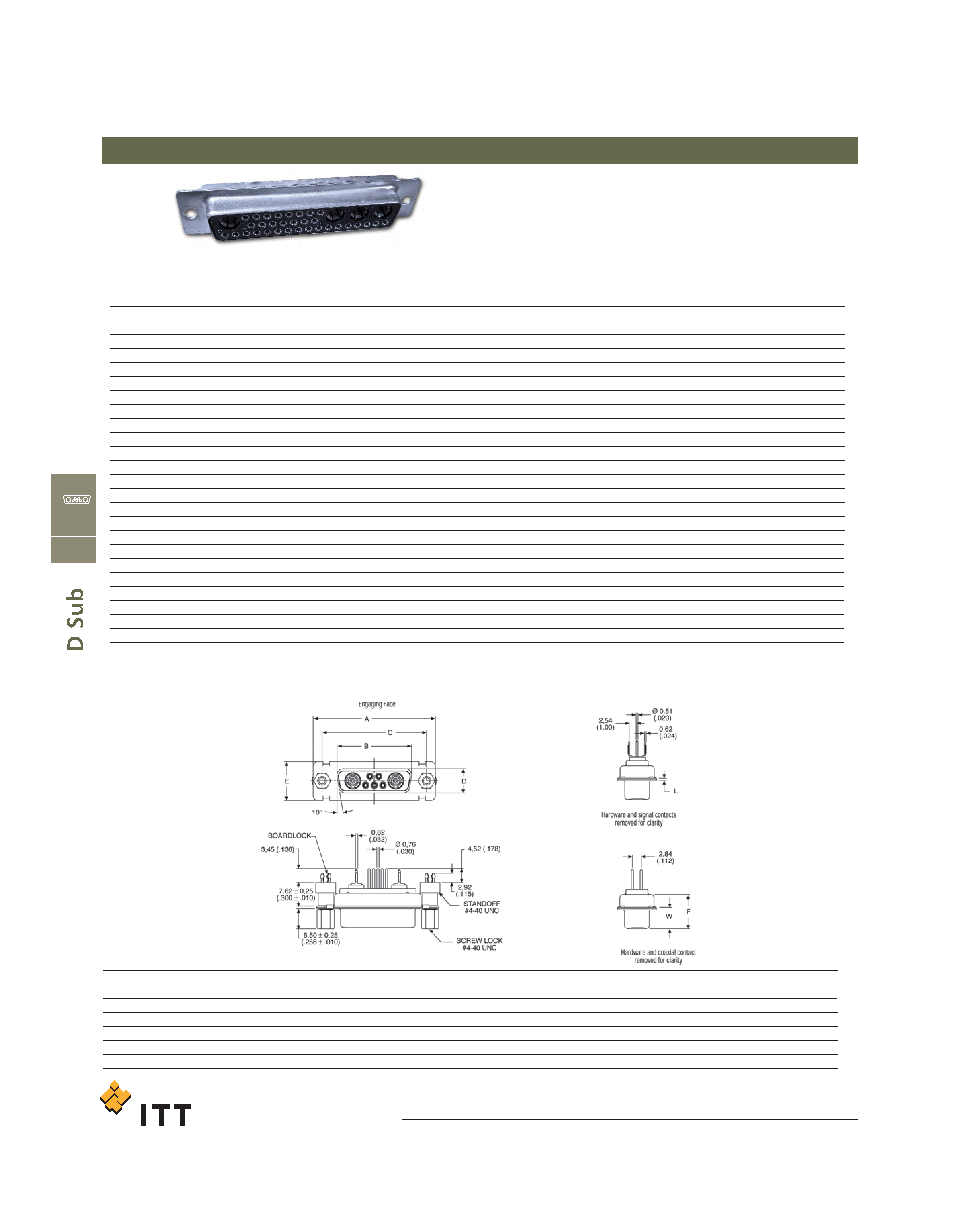

Coaxial Straight PCB Receptacle, sizes DE-DD

C-24

www.ittcannon.com

Dimensions shown in inches (mm)

Specifications and dimensions subject to change

Coax Straight PCB

Receptacle DE-DD

Receptacle

75 Ohm* coax inserted with straight contacts

and standoff with UNC 4-40 thread

75 OHM INDUSTRIAL

50 OHM MILITARY/HI-REL

50 OHM NON-MAGNETIC/LOW OUTGASSING***

Shell

Layout

P/N without

P/N with

P/N without

P/N with UNC

P/N with

size

Boardlock

Gold Plating

2W2

DEMV2C2S-NA197

DEMZ2C2S-NA197

DEMMV2X2S-N

DEMMZ2X2S-N

DEM2X2S-NNMBK52

2WK2

DEMV2CK2S-NA197

DEMZ2CK2S-NA197

DEMMV2XK2S-N

DEMMZ2XK2S-N

DEM2XK2S-NNMBK52

5W1

DEMV5C1S-NA197

DEMZ5C1S-NA197

DEMMV5X1S-N

DEMMZ5X1S-N

DEM5X1S-NNMBK52

7W2

DAMV7C2S-NA197

DAMZ7C2S-NA197

DAMMV7X2S-N

DAMMZ7X2S-N

DAM7X2S-NNMBK52

11W1

DAMV11C1S-NA197

DAMZ11C1S-NA197

DAMMV11X1S-N

DAMMZ11X1S-N

DAM11X1S-NNMBK52

3W3

DAMV3C3S-NA197

DAMZ3C3S-NA197

DAMMV3X3S-N

DAMMZ3X3S-N

DAM3X3S-NNMBK52

3WK3

DAMV3CK3S-NA197

DAMZ3CK3S-NA197

DAMMV3XK3S-N

DAMMZ3XK3S-N

DAM3XK3S-NNMBK52

5W5

DBMV5C5S-NA197

DBMZ5C5S-NA197

DBMMV5X5S-N

DBMMZ5X5S-N

DBM5X5S-NNMBK52

9W4

DBMV9C4S-NA197

DBMZ9C4S-NA197

DBMMV9X4S-N

DBMMZ9X4S-N

DBM9X4S-NNMBK52

13W3

DBMV13C3S-NA197

DBMZ13C3S-NA197

DBMMV13X3S-N

DBMMZ13X3S-N

DBM13X3S-NNMBK52

17W2

DBMV17C2S-NA197

DBMZ17C2S-NA197

DBMMV17X2S-N

DBMMZ17X2S-N

DBM17X2S-NNMBK52

21W1

DBMV21C1S-NA197

DBMZ21C1S-NA197

DBMMV21X1S-N

DBMMZ21X1S-N

DBM21X1S-NNMBK52

8W8

DCMV8C8S-NA197

DCMZ8C8S-NA197

DCMMV8X8S-N

DCMMZ8X8S-N

DCM8X8S-NNMBK52

13W6

DCMV13C6S-NA197

DCMZ13C6S-NA197

DCMMV13X6S-N

DCMMZ13X6S-N

DCM13X6S-NNMBK52

17W5

DCMV17C5S-NA197

DCMZ17C5S-NA197

DCMMV17X5S-N

DCMMZ17X5S-N

DCM17X5S-NNMBK52

21WA4

DCMV21CA4S-NA197

DCMZ21CA4S-NA197

DCMMV21XA4S-N

DCMMZ21XA4S-N

DCM21XA4S-NNMBK52

25W3

DCMV25C3S-NA197

DCMZ25C3S-NA197

DCMMV25X3S-N

DCMMZ25X3S-N

DCM25X3S-NNMBK52

27W2

DCMV27C2S-NA197

DCMZ27C2S-NA197

DCMMV27X2S-N

DCMMZ27X2S-N

DCM27X2S-NNMBK52

24W7

DDMV24C7S-NA197

DDMZ24C7S-NA197

DDMMV24X7S-N

DDMMZ24X7S-N

DDM24X7S-NNMBK52

36W4

DDMV36C4S-NA197

DDMZ36C4S-NA197

DDMMV36X4S-N

DDMMZ36X4S-N

DDM36X4S-NNMBK52

43W2

DDMV43C2S-NA197

DDMZ43C2S-NA197

DDMMV43X2S-N

DDMMZ43X2S-N

DDM43X2S-NNMBK52

47W1

DDMV47C1S-NA197

DDMZ47C1S-NA197

DDMMV47X1S-N

DDMMZ47X1S-N

DDM47X1S-NNMBK52

* For 50 ohm coaxial inserts replace C with X, e.g.:DDMZ43C2S-N becomes DDMZ43X2S-N.

**For M-3 and other hardware options, see Combo D Catalog.

*** Hardware Modifier not allowed with Non Magnetic/ Low Outgassing Combo-D- Contact factory for more information

Shell

size

± 0,38 (.015)

± 0,13 (.005)

± 0,38 (.015)

± 0,25 (.010)

± 0,38 (.015)

± 0,25 (.010)

30,81 (1.213)

16,33 (.643)

24,99 (.984)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

0,76 (.030)

39,14 (1.541)

24,65 (.971)

33,32 (1.312)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

0,76 (.030)

53,04 (2.088)

38,38 (1.511)

47,04 (1.852)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

0,76 (.030)

69,32 (2.729)

54,84 (2.159)

63,50 (2,500)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

0,76 (.030)

66,93 (2.635)

52,42 (2.064)

61,11 (2,406)

10,74 (.423)

15,37 (.605)

10,90 (.429)

6,94 (.273)

0,76 (.030)

Dimensions

• For contact cavity arrangements, see page C-43.

• For pcb hole pattern, see Combo D Catalog.
