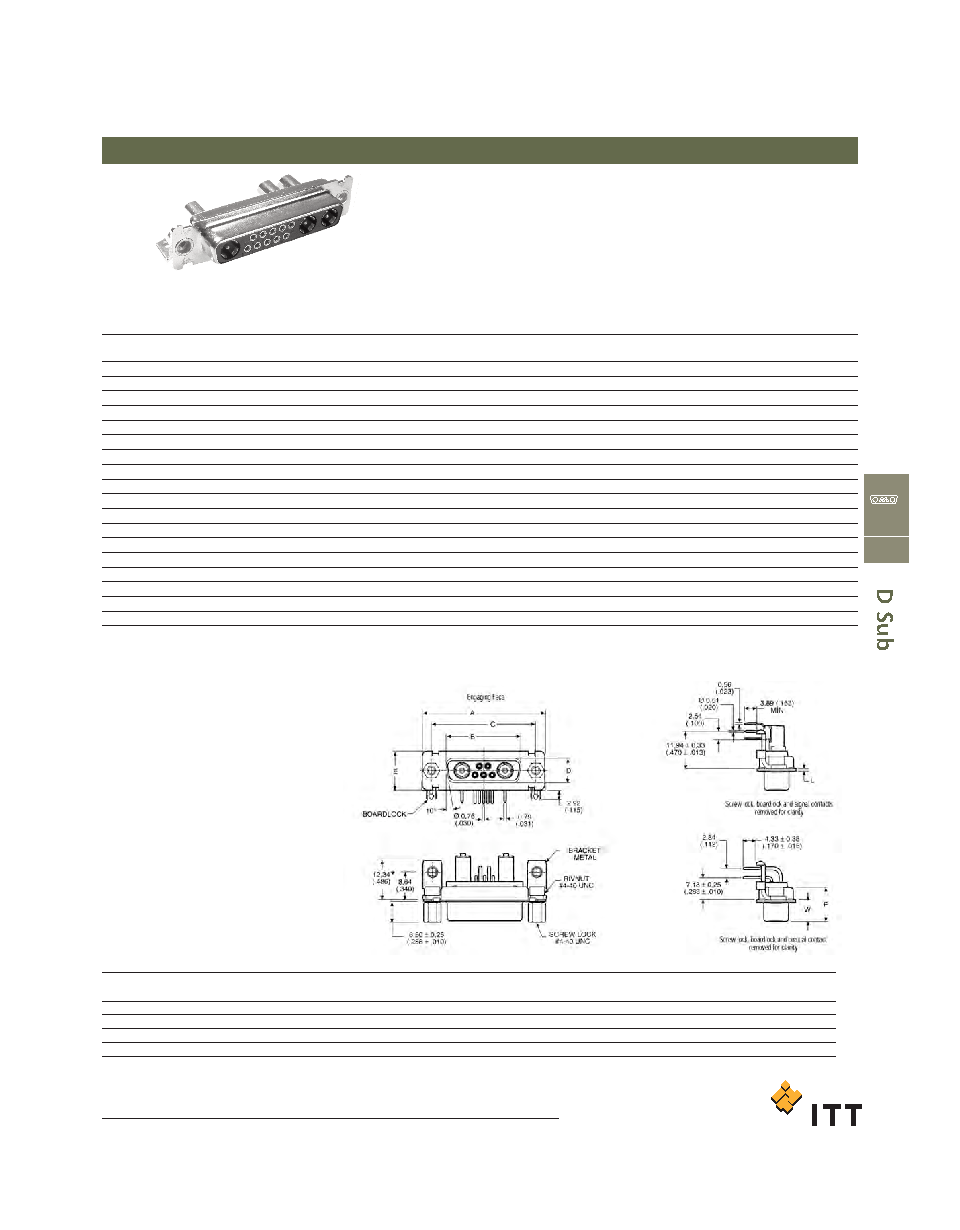

31 / 62 page  www.ittcannon.com Dimensions shown in inches (mm) Specifications and dimensions subject to change C C-31 Cannon Combo D® Coax 90° PCB Receptacle DE-DC Military/High Reliability Coaxial 90° PCB Receptacle, Sizes DE-DC, with metal bracket INDUSTRIAL – US INDUSTRIAL – EU** MILITARY/HI-REL – US NON-MAGNETIC/LOW OUTGASSING – US*** 75 Ohm* coax inserted with 75 Ohm* coax inserted with 50 Ohm* coax inserted with 50 Ohm* coax inserted with US Footprint metal bracket EU Footprint metal bracket US Footprint metal bracket US Footprint metal bracket and UNC 4-40 captive nut and UNC 4-40 captive nut and UNC 4-40 screw lock and UNC 4-40 screw lock Shell Layout P/N without P/N with P/N without P/N with P/N without P/N with P/N with size Boardlock Boardlock Boardlock Boardlock Boardlock Boardlock Gold Plating DE 2W2 DEMP2C2S-JA197 DEMC2C2S-JA197 DEMP2C2S-VA197 DEMC2C2S-VA197 DEMMP2X2S-J DEMMC2X2S-J DEM2X2S-JNMBK52 DE 2WK2 DEMP2CK2S-JA197 DEMC2CK2S-JA197 DEMP2CK2S-VA197 DEMC2CK2S-VA197 DEMMP2XK2S-J DEMMC2XK2S-J DEM2XK2S-JNMBK52 DE 5W1 DEMP5C1S-JA197 DEMC5C1S-JA197 DEMP5C1S-VA197 DEMC5C1S-VA197 DEMMP5X1S-J DEMMC5X1S-J DEM5X1S-JNMBK52 DA 7W2 DAMP7C2S-JA197 DAMC7C2S-JA197 DAMP7C2S-VA197 DAMC7C2S-VA197 DAMMP7X2S-J DAMMC7X2S-J DAM7X2S-JNMBK52 DA 11W1 DAMP11C1S-JA197 DAMC11C1S-JA197 DAMP11C1S-VA197 DAMC11C1S-VA197 DAMMP11X1S-J DAMMC11X1S-J DAM11X1S-JNMBK52 DA 3W3 DAMP3C3S-JA197 DAMC3C3S-JA197 DAMP3C3S-VA197 DAMC3C3S-VA197 DAMMP3X3S-J DAMMC3X3S-J DAM3X3S-JNMBK52 DA 3WK3 DAMP3CK3S-JA197 DAMC3CK3S-JA197 DAMP3CK3S-VA197 DAMC3CK3S-VA197 DAMMP3XK3S-J DAMMC3XK3S-J DAM3XK3S-JNMBK52 DB 5W5 DBMP5C5S-JA197 DBMC5C5S-JA197 DBMP5C5S-VA197 DBMC5C5S-VA197 DBMMP5X5S-J DBMMC5X5S-J DBM5X5S-JNMBK52 DB 9W4 DBMP9C4S-JA197 DBMC9C4S-JA197 DBMP9C4S-VA197 DBMC9C4S-VA197 DBMMP9X4S-J DBMMC9X4S-J DBM9X4S-JNMBK52 DB 13W3 DBMP13C3S-JA197 DBMC13C3S-JA197 DBMP13C3S-VA197 DBMC13C3S-VA197 DBMMP13X3S-J DBMMC13X3S-J DBM13X3S-JNMBK52 DB 17W2 DBMP17C2S-JA197 DBMC17C2S-JA197 DBMP17C2S-VA197 DBMC17C2S-VA197 DBMMP17X2S-J DBMMC17X2S-J DBM17X2S-JNMBK52 DB 21W1 DBMP21C1S-JA197 DBMC21C1S-JA197 DBMP21C1S-VA197 DBMC21C1S-VA197 DBMMP21X1S-J DBMMC21X1S-J DBM21X1S-JNMBK52 DC 8W8 DCMP8C8S-JA197 DCMC8C8S-JA197 DCMP8C8S-VA197 DCMC8C8S-VA197 DCMMP8X8S-J DCMMC8X8S-J DCM8X8S-JNMBK52 DC 13W6 DCMP13C6S-JA197 DCMC13C6S-JA197 DCMP13C6S-VA197 DCMC13C6S-VA197 DCMMP13X6S-J DCMMC13X6S-J DCM13X6S-JNMBK52 DC 17W5 DCMP17C5S-JA197 DCMC17C5S-JA197 DCMP17C5S-VA197 DCMC17C5S-VA197 DCMMP17X5S-J DCMMC17X5S-J DCM17X5S-JNMBK52 DC 21WA4 DCMP21CA4S-JA197 DCMC21CA4S-JA197 DCMP21CA4S-VA197 DCMC21CA4S-VA197 DCMMP21XA4S-J DCMMC21XA4S-J DCM21XA4S-JNMBK52 DC 25W3 DCMP25C3S-JA197 DCMC25C3S-JA197 DCMP25C3S-VA197 DCMC25C3S-VA197 DCMMP25X3S-J DCMMC25X3S-J DCM25X3S-JNMBK52 DC 27W2 DCMP27C2S-JA197 DCMC27C2S-JA197 DCMP27C2S-VA197 DCMC27C2S-VA197 DCMMP27X2S-J DCMMC27X2S-J DCM27X2S-JNMBK52 * For 50 ohm coaxial inserts replace C with X, e.g.:DCM13C6S-J becomes DCM13X6S-J. **For M-3 and other hardware options, see Combo D Catalog. *** Hardware Modifier not allowed with Non Magnetic/ Low Outgassing Combo-D- Contact factory for more information Shell A B C D E F W L size ± 0,38 (.015) ± 0,13 (.005) ± 0,13 (.005) ± 0,13 (.005) ± 0,38 (.015) ± 0,25 (.010) ± 0,38 (.015) ± 0,25 (.010) DE 30,81 (1.213) 16,33 (.643) 24,99 (.984) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 0,76 (.030) DA 39,14 (1.541) 24,65 (.971) 33,32 (1.312) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 0,76 (.030) DB 53,04 (2.088) 38,38 (1.511) 47,04 (1.852) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 0,76 (.030) DC 69,32 (2.729) 54,84 (2.159) 63,50 (2,500) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 0,76 (.030) Dimensions US version shown, for EU version please see Combo D Catalog. For 50 ohm coaxial version, see Combo D Catalog. Receptacle • For contact cavity arrangements, see page C-43. • For pcb hole pattern, see Combo D Catalog. ca_C1-C61.qxd:Layout 1 2/10/11 9:32 AM Page 31 |
|
