CC1110

CC1110 PRELIMINARY Datasheet (Rev. 1.01) SWRS033A

Page 81 of 202

3. Transfer

number

bytes/words

commanded by first byte/word + 2

(transfers length byte/word, and then

as many bytes/words as dictated by

length byte/word + 1)

4. Transfer

number

bytes/words

commanded by first byte/word + 3

(transfers length byte/word, and then

as many bytes/words as dictated by

length byte/word + 2)

LENGTH=n

byte/word 1

byte/word 2

byte/word 3

byte/word n-1

byte/word n

LENGTH=n

byte/word 1

byte/word 2

byte/word 3

byte/word n-1

byte/word n

LENGTH=n

byte/word 1

byte/word 2

byte/word 3

byte/word n-1

byte/word n

LENGTH=n

byte/word 1

byte/word 2

byte/word 3

byte/word n-1

byte/word n

byte/word n+1

byte/word n+2

VLEN=001

VLEN=010

VLEN=011

VLEN=100

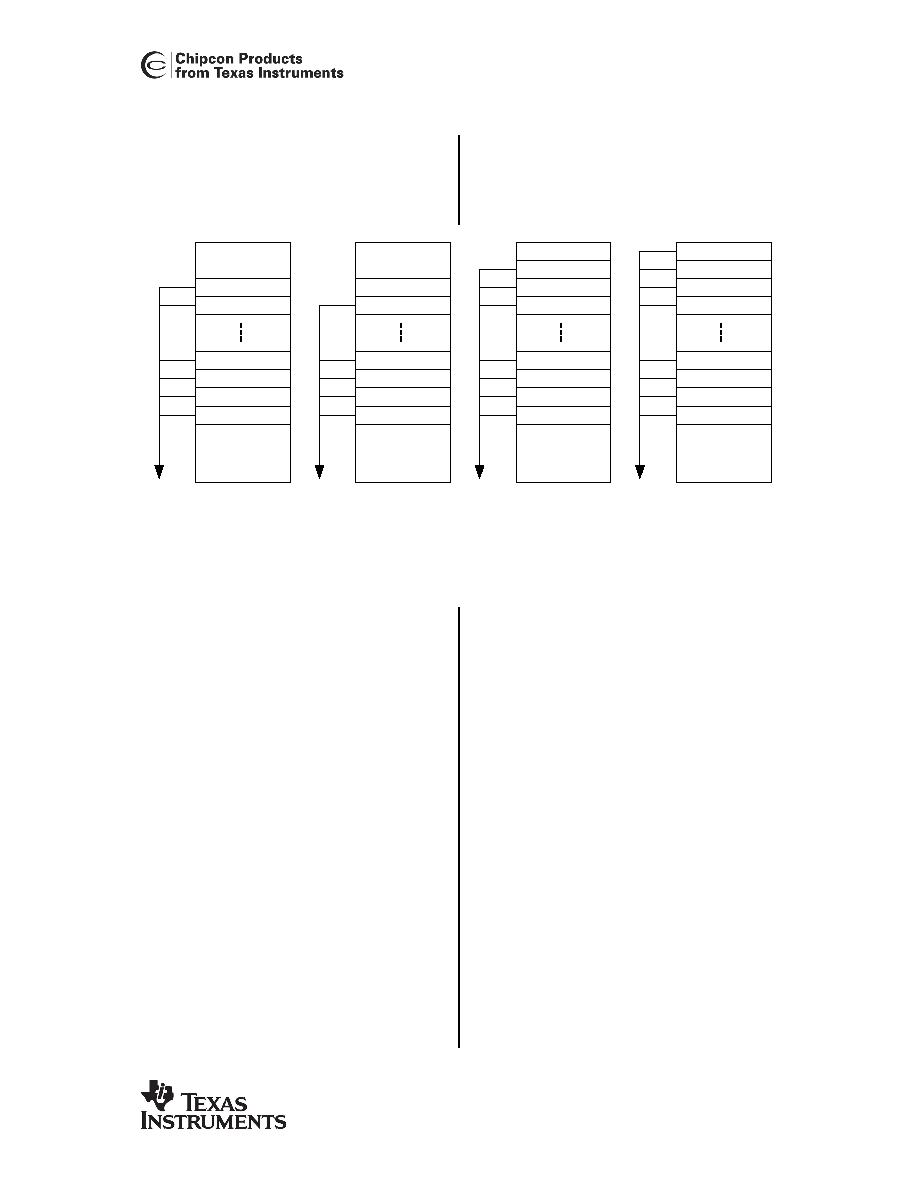

Figure 11: Variable Length (VLEN) Transfer Options

13.2.2.5 Trigger Event

Each DMA channel can be set up to sense on

a single trigger. This field determines which

trigger the DMA channel shall sense.

13.2.2.6 Source and Destination Increment

When the DMA channel is armed or rearmed

the source and destination addresses are

transferred to internal address pointers. The

possibilities for address increment are :

•

Increment by zero.

The address

pointer shall remain fixed after each

transfer.

•

Increment by one.

The address

pointer shall increment one count

after each transfer.

•

Increment by two.

The address

pointer shall increment two counts

after each transfer.

•

Decrement by one.

The address

pointer shall decrement one count

after each transfer.

13.2.2.7 DMA Transfer Mode

The transfer mode determines how the DMA

channel behaves when it starts transferring

data. There are four transfer modes described

below:

Single

. On a trigger a single DMA transfer

occurs and the DMA channel awaits the next

trigger. After the number of transfers specified

by the transfer count are completed, the CPU

is notified and the DMA channel is disarmed.

Block

. On a trigger the number of DMA

transfers specified by the transfer count is

performed as quickly as possible, after which

the CPU is notified and the DMA channel is

disarmed.

Repeated single.

On a trigger a single DMA

transfer occurs and the DMA channel awaits

the next trigger. After the number of transfers

specified by the transfer count are completed,

the CPU is notified and the DMA channel is

rearmed.

Repeated block.

On a trigger the number of

DMA transfers specified by the transfer count

is performed as quickly as possible, after
