Data Sheet
ADRF6755
Rev. B | Page 15 of 48

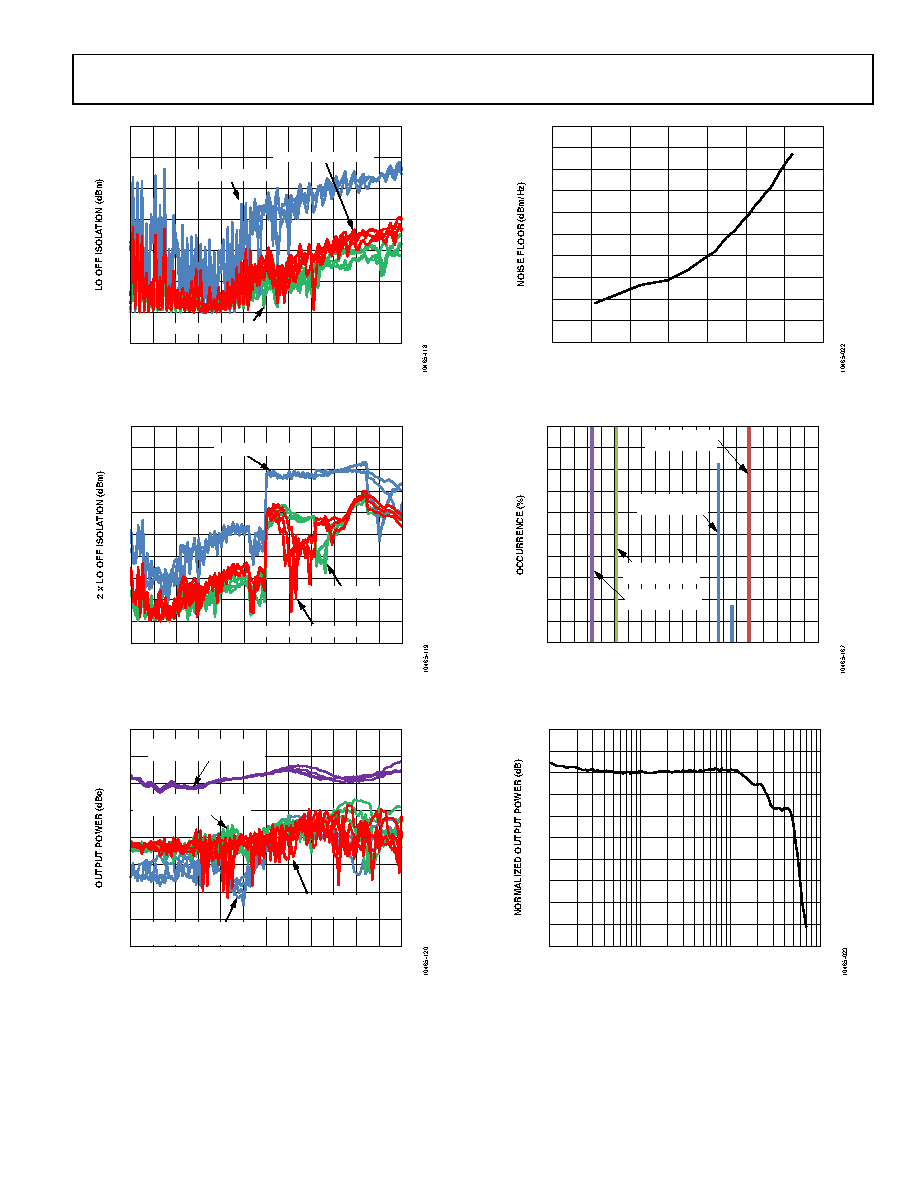

Figure 17. LO Off Isolation vs. LO Frequency, Attenuation, Supply,
and Temperature
Figure 18. 2 × LO Off Isolation vs. LO Frequency, Attenuation, Supply,
and Temperature
Figure 19. Second-Order and Third-Order Harmonic Distortion vs.
LO Frequency, Supply, and Temperature
Figure 20. Noise Floor at 0 dB Attenuation vs. Output Power
at Nominal Conditions
Figure 21. Noise Floor at 10 MHz Offset Frequency Distribution at
Worst-Case Conditions and Different Attenuation Settings
Figure 22. Normalized I and Q Input Bandwidth
–130
–120
–110
–100
–90
–80
–70
–60
100 300 500 700 900 1100 1300 1500 1700 1900 2100 2300 2500
LO FREQUENCY (MHz)
ATTENUATION = 0dB
ATTENUATION = 21dB
ATTENUATION = 47dB
–130
–120
–110
–100
–90
–80
–70
–60
–50
–40
–30
100 300 500 700 900 1100 1300 1500 1700 1900 2100 2300 2500
LO FREQUENCY (MHz)
ATTENUATION = 0dB
ATTENUATION = 47dB
ATTENUATION = 21dB
–120
–110
–100
–90
–80
–70
–60
–50
–40
100 300 500 700 900 1100 1300 1500 1700 1900 2100 2300 2500
LO FREQUENCY (MHz)
UPPER THIRD
HARMONIC (
fLO + 3 × fBB)
UPPER SECOND
HARMONIC (
fLO + 2 × fBB)
LOWER SECOND
HARMONIC (
fLO – 2 × fBB)
LOWER THIRD
HARMONIC (
fLO – 3 × fBB)
–165
–163
–161
–159
–157
–155
–153
–151
–149
–147
–145
–25
–20
–15
–10
–5
0
5
10
OUTPUT POWER (dBm)
0
10
20
30
40
50
60
70
80
90
100
–180 –176 –172 –168 –164 –160 –156 –152 –148 –144 –140
NOISE FLOOR AT 10MHz OFFSET FREQUENCY (dBm/Hz) AND (dBc/Hz)
ATTENUATION
= 21dB (dBc/Hz)
ATTENUATION
= 47dB (dBm/Hz)
ATTENUATION
= 21dB (dBm/Hz)
ATTENUATION
= 0dB (dBc/Hz)
–4.0
–3.5
–3.0
–2.5
–2.0
–1.5
–1.0
–0.5
0
0.5
1.0
1
10
100
1000
I AND Q BASEBAND INPUT FREQUENCY (MHz)
