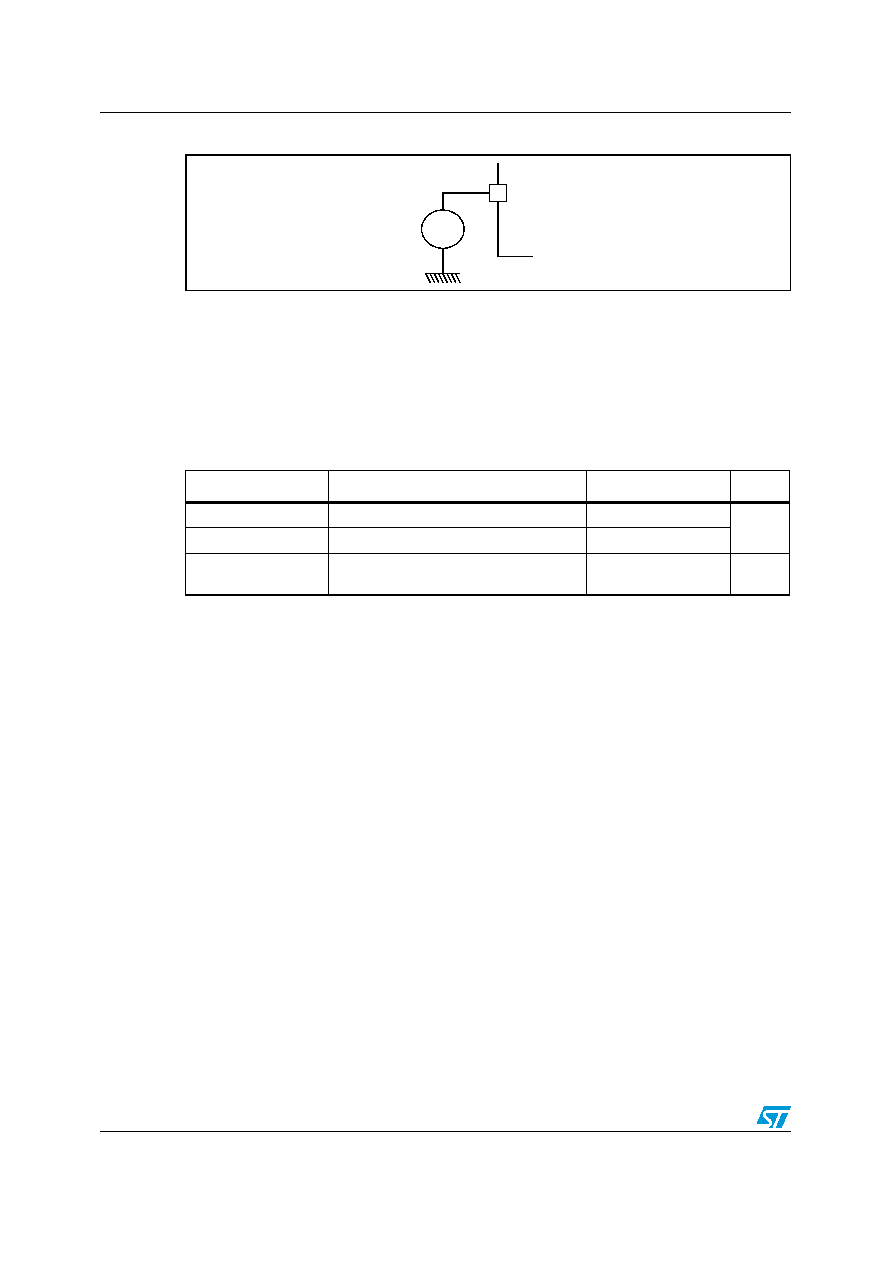

background image
Electrical characteristics
ST7DALIF2
128/171
Figure 54.
Pin input voltage
20.2
Absolute maximum ratings
Stresses above those listed as “absolute maximum ratings” may cause permanent damage
to the device. This is a stress rating only and functional operation of the device under these
conditions is not implied. Exposure to maximum rating conditions for extended periods may
affect device reliability.
VIN
ST7 PIN
Table 62.
Voltage characteristics
Symbol
Ratings
Maximum value
Unit
VDD - VSS
Supply voltage(1)
1.
All power (VDD) and ground (VSS) lines must always be connected to the external supply.
7.0
V
VIN
Input voltage on any pin (2)
2.
Directly connecting the I/O pins to VDD or VSS could damage the device if an unexpected change of the I/O
configuration occurs (for example, due to a corrupted program counter). To guarantee safe operation, this
connection has to be done through a pull-up or pull-down resistor (typical: 10kW for I/Os). Unused I/O pins
must be tied in the same way to VDD or VSS according to their reset configuration.
V
SS-0.3 to VDD+0.3
VESD(HBM)
Electrostatic discharge voltage (Human
Body Model)
see Section 20.7.3 on
page 142
V
