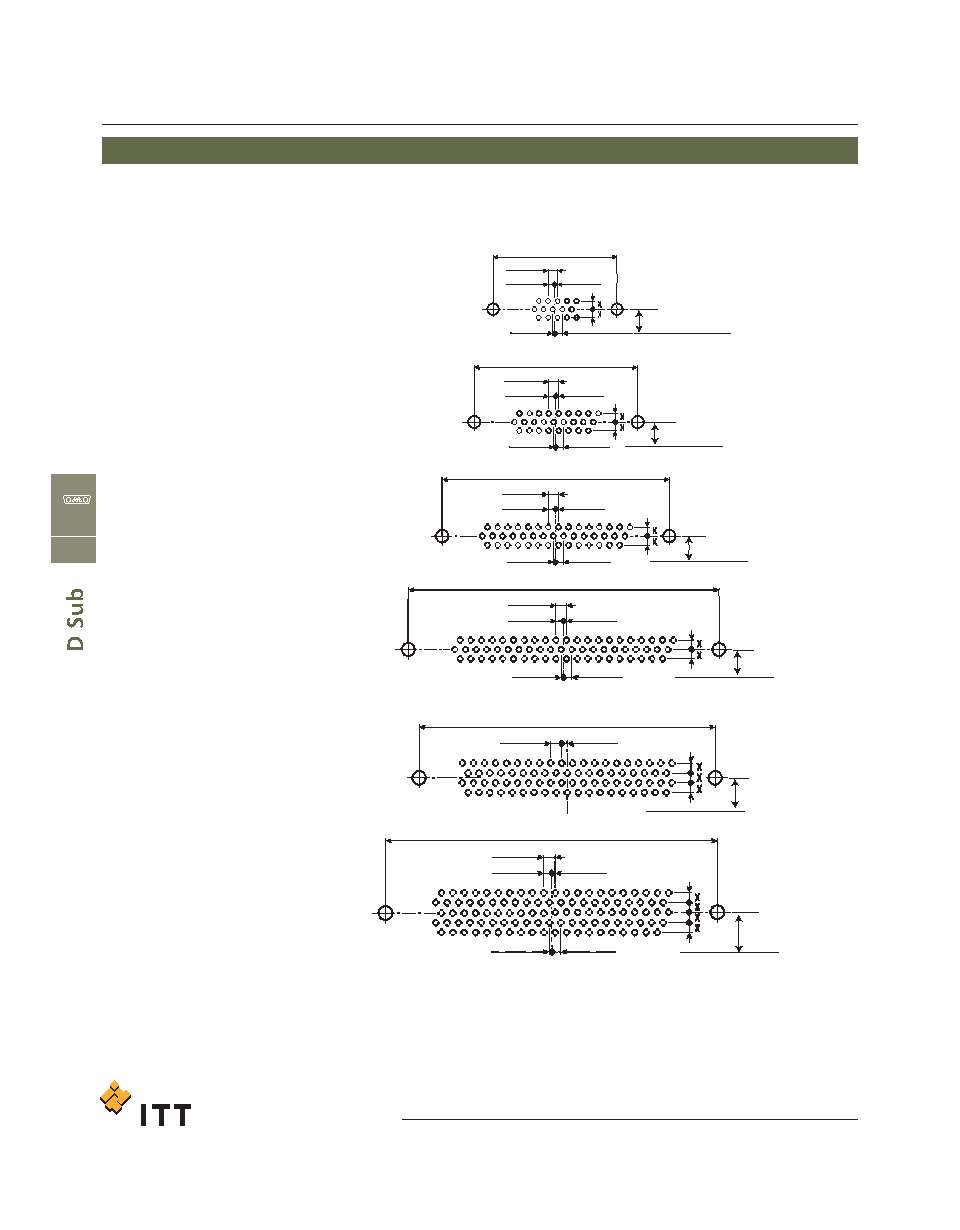

PCB Hole Pattern
D*MA High Density
C-48
www.ittcannon.com
Dimensions shown in inches (mm)
Specifications and dimensions subject to change
90° PCB Hole Pattern
24,99 (.984)
2,29 (.090)
2,04 (.080)
1,40 (.055)
0,89 (.035)
0,25 (.010)
33,32 (1.312)
2,29 (.090)
1,78 (.070)
0,51 (.020)
0,64 (.025)
1,65 (.065)
47,04 (1.852)
2,29 (.090)
1,78 (.070)
0,51 (.020)
0,64 (.025)
1,64 (.065)
63,50 (2.500)
1,63 (.064)
0,79 (.031)
0,42 (.0165)
2,41 (.095)
1,99 (0785)
61,11 (2.406)
2,41 (.095)
1,21 (.048)
63,50 (2.500)
1,83 (.072)
0,58 (.023)
0,62 (.024)
2,41 (.095
1,79 (070)
(Mating Side)
(Mating Side)
(Mating Side)
(Mating Side)
(Mating Side)
(Mating Side)
SIZE E
15 Contacts
SIZE A
26 Contacts
SIZE B
44 Contacts
SIZE C
62 Contacts
SIZE D
78 Contacts
SIZE F
104 Contacts
13,82 (0.544)
13,82 (0.544)
13,82 (0.544)
13,82 (0.544)
15.39 (0.606)
15.6 (0.614)
FROM REAR FLANGE SHELL REF
FROM REAR FLANGE SHELL REF
FROM REAR FLANGE SHELL REF
FROM REAR FLANGE SHELL REF
FROM REAR FLANGE SHELL REF
FROM REAR FLANGE SHELL REF
Face view, pin insert for plug
(use a mirror image for receptacle)
Dimension X
1,98 (.078) for sizes E, A, B, C
2,08 (.082) for size D
Recommended PC hole for signal contacts
?
0,90 (.035) min for terminations ? 0,51 (.020)
?
1,00 (.040) min for terminations ? 0,57 (.022)
Recommended PCB mounting hole
? 3.05 (.120)
