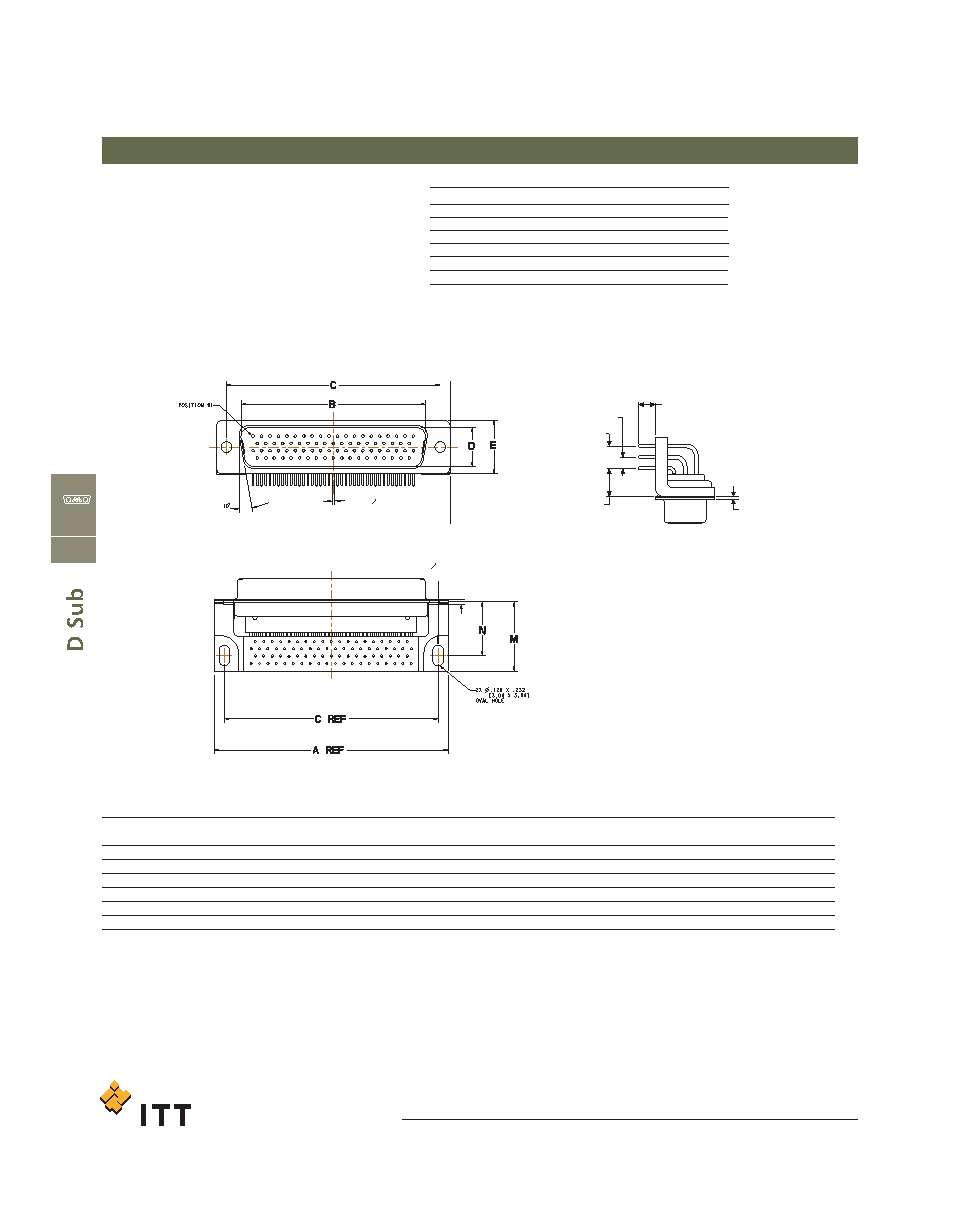

Cannon 90° PCB, High Density Receptacle

Military/High Reliability D-Subminiatures

90° High Density PC Tail with Plastic Bracket

Shell Size

Layout

Through Hole

DEMA15SL

DAMA26SL

DBMA44SL

DCMMA62SL

DDMMA78SL

104

DFMA104SLF216

Receptacle

• For contact cavity arrangements, see pages C-44.

• For P.C. hole pattern, see pages C-48.

• For panel cutouts, see page C-49.

Note: For Residual Magnetism Level of 200 gamma, add NMBK52.

Example DEMA15SLNMBK52 contacts and shells have 50 microinches gold.

Shown with bracket. For version without bracket use termination modifier "P".

"F" size shells use machined aluminum shells only.

Shell

size

± 0,38 (.015)

± 0,13 (.005)

± 0,13 (.005) ± 0,38 (.015) ± 0,25 (.010) ± 0,368 (.0145) ± 0,25 (.010)

± 0,25 (.010)

± 0,13 (.005)

30,81 (1.213)

16,33 (.643)

24,99 (8,36)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

0,76 (.030)

18,90 (.740)

13,82 (.544)

39,14 (1.541)

24,66 (.971)

33,32 (1.312)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

0,76 (.030)

18,90 (.740)

13,82 (.544)

53,04 (2.088)

38,38 (1.511)

47,04 (1.852)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

0,76 (.030)

18,90 (.740)

13,82 (.544)

69,32 (2.729)

54,84 (2.159)

63,50 (2.500)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

0,76 (.030)

18,90 (.740)

13,82 (.544)

66,93 (2.635)

52,42 (2.064)

61,11 (2.406)

10,74 (.423)

15,37 (.605)

10,90 (.429)

6,94 (.273)

0,76 (.030)

20,07 (.790)

15,39 (.606)

69,32 (2.729)

56,69 (2.232)

63,50 (2.500)

13,23 (.521)

16,97 (.668)

10,90 (.429)

6,94 (.273)

0,76 (.030)

22,14 (.872)

15.60 (.614)

0,51 (.020) O

4,01

0,69

.150

± .020

1.98

,17

(.078 .007)

3,96

,17

(.078 .007)

11,68 (max)

(.460)

O 3,05

(.120)

Sizes E, A, B, C

Size D

Dimensions

ca_C1-C61.qxd:Layout 1

2/10/11

9:32 AM

Page 20
