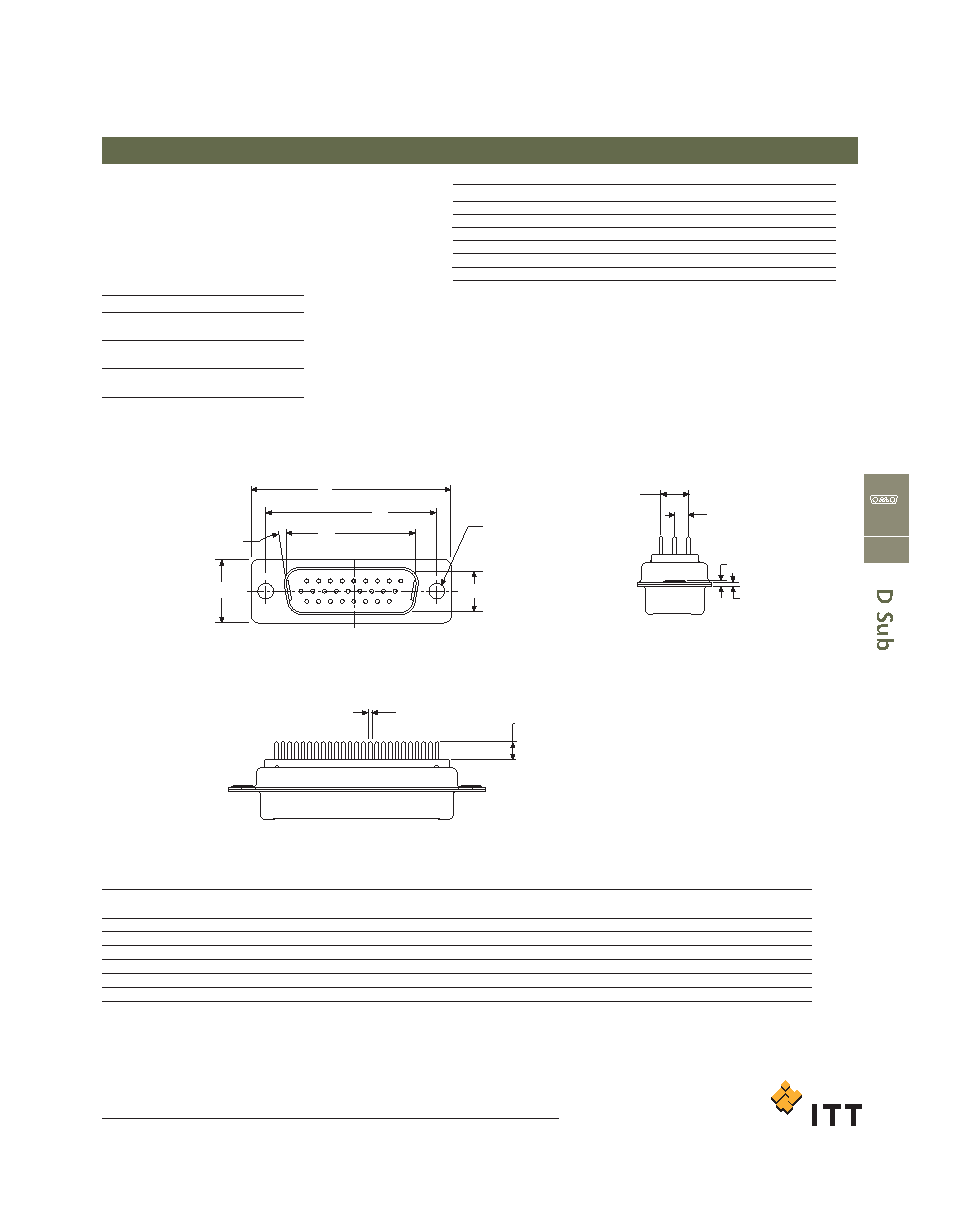

Cannon Straight PCB, High Density Receptacle

Military/High Reliability D-Subminiature

High Density Straight PC Tail

Shell Size

Layout

Through Hole

Dual Float Mount

DEMA15SM

DEMAY15SM

DAMA26SM

DAMAY26SM

DBMA26SM

DBMAY44SM

DCMA62SM

DCMAY62SM

DDMA78SM

DDMAY78SM

DF*

104

DFMA104SM

DFMAY104SM

Dimensions

Receptacle

• For contact cavity arrangements, see pages C-44.

• For P.C. hole pattern, see pages C-47.

• For panel cutouts, see page C-49.

Note: For residual magnetism level of 200 Gamma and shells and

contacts with 50 micro inches (1,27m) gold plating, add NMBK52.

Example DEMA15SMNMBK52 and shells with 50 microinches gold.

For alternate PC tail modifiers (see tabulation), replace 0L3 with M or Z.

Example: DEM9SZNM

Shell

size

± 0,38 (.015)

± 0,13 (.005)

± 0,38 (.015)

± 0,25 (.010)

± 0,368 (.0145) ± 0,317 (.0125) ± 0,25 (.010)

30,81 (1.213)

16,33 (.643)

24,99 (8,36)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

1,206 (.0475)

0,76 (.030)

39,14 (1.541)

24,66 (.971)

33,32 (1.312)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

1,206 (.0475)

0,76 (.030)

53,04 (2.088)

38,38 (1.511)

47,04 (1.852)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

1,206 (.0475)

0,76 (.030)

69,32 (2.729)

54,84 (2.159)

63,50 (2.500)

7,90 (.311)

12,55 (.494)

10,90 (.429)

6,94 (.273)

1,206 (.0475)

0,76 (.030)

66,93 (2.635)

52,42 (2.064)

61,11 (2.406)

10,74 (.423)

15,37 (.605)

10,90 (.429)

6,94 (.273)

1,206 (.0475)

0,76 (.030)

69.34 (2.73)

55,0 (2.16)

63,50 (2.50)

15,49 (0.61)

20,07 (0.79)

16,45 (.648)

6,94 (.273)

1,206 (.0475)

0.76 (.030)

1,98

(.078)

3,96

(.156)

Engaging Face

Ø 3,05 (.120)

0,51 (.020)

PC Tail Modifiers

4.01 ± 0,69

(.158 ± .027)

7,62 ± 0,5

(.300 ± .020)

0L3

4,82 ± 1,5

(.190 ± .020)

0L3 for HE501 connectors and ESA equivalents
