16. MULTI-MASTER I2C bus INTERFACE

page 286

(2) Generation of RESTART condition

In order to generate a RESTART condition after 1-byte data transfer, write E016 to the S10 register,

enter START condition standby mode and leave the SDAMM open. Generate a START condition trigger

by setting the S00 register after inserting a sufficient software wait until the SDAMM outputs a high-level

("H") signal. Figure 16.24 shows the RESTART condition generation timing.

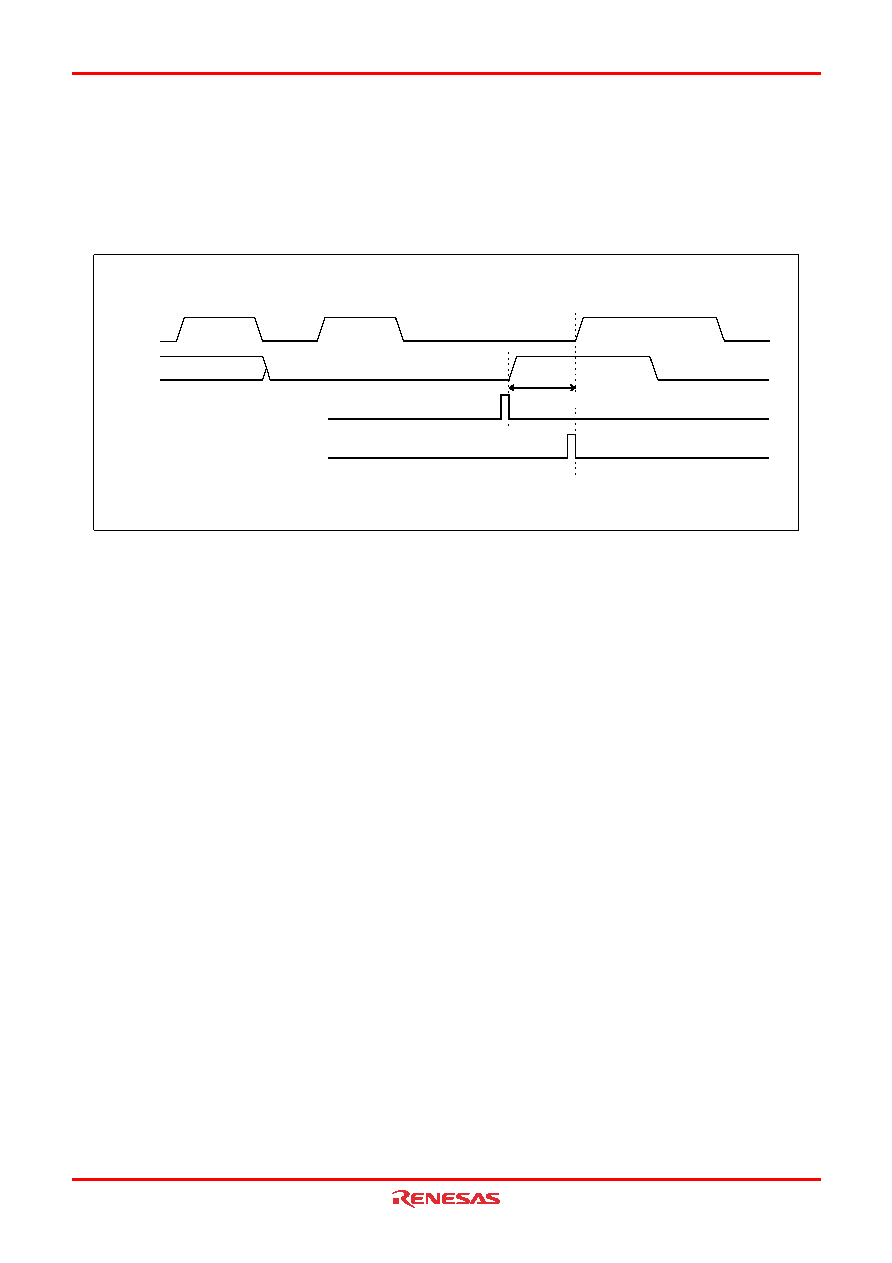

Figure 16.24 The time of generation of RESTART condition

8 clocks

ACK clock

SCL

S10 writing signal

(START condition setting standby)

SDA

S00 writing signal

(START condition triger generation)

Insert software wait

(3) Iimitation of CPU clock

When the CM07 bit in the CM0 register is set to 1 (subclock), each register of the I2C bus interface

circuit cannot be read or written. Read or write data when the CM07 bit is set to 0 (main clock, PLL

clock, or on-chip oscillator clock).
