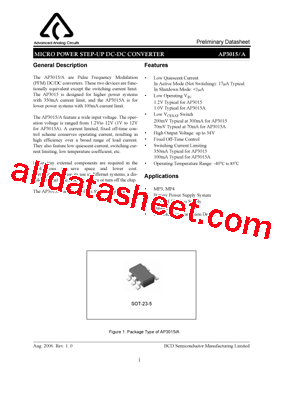

General Description

The AP3015/A are Pulse Frequency Modulation (PFM) DC/DC converters. These two devices are func

tionally equivalent except the switching current limit. The AP3015 is designed for higher power systems with 350mA current limit, and the AP3015A is for lower power systems with 100mA current limit.

Features

· Low Quiescent Current

    In Active Mode (Not Switching): 17µA Typical

    In Shutdown Mode: <1µA

· Low Operating VIN

   1.2V Typical for AP3015

   1.0V Typical for AP3015A

· Low VCESAT Switch

   200mV Typical at 300mA for AP3015

   70mV Typical at 70mA for AP3015A

· High Output Voltage: up to 34V

· Fixed Off-Time Control

· Switching Current Limiting

   350mA Typical for AP3015

   100mA Typical for AP3015A

· Operating Temperature Range: -40^oC to 85^oC



Applications

· MP3, MP4

· Battery Power Supply System

· LCD/OLED Bias Supply

· Handheld Device

· Portable Communication Device
