ADP1046A
Data Sheet
Rev. 0 | Page 12 of 88

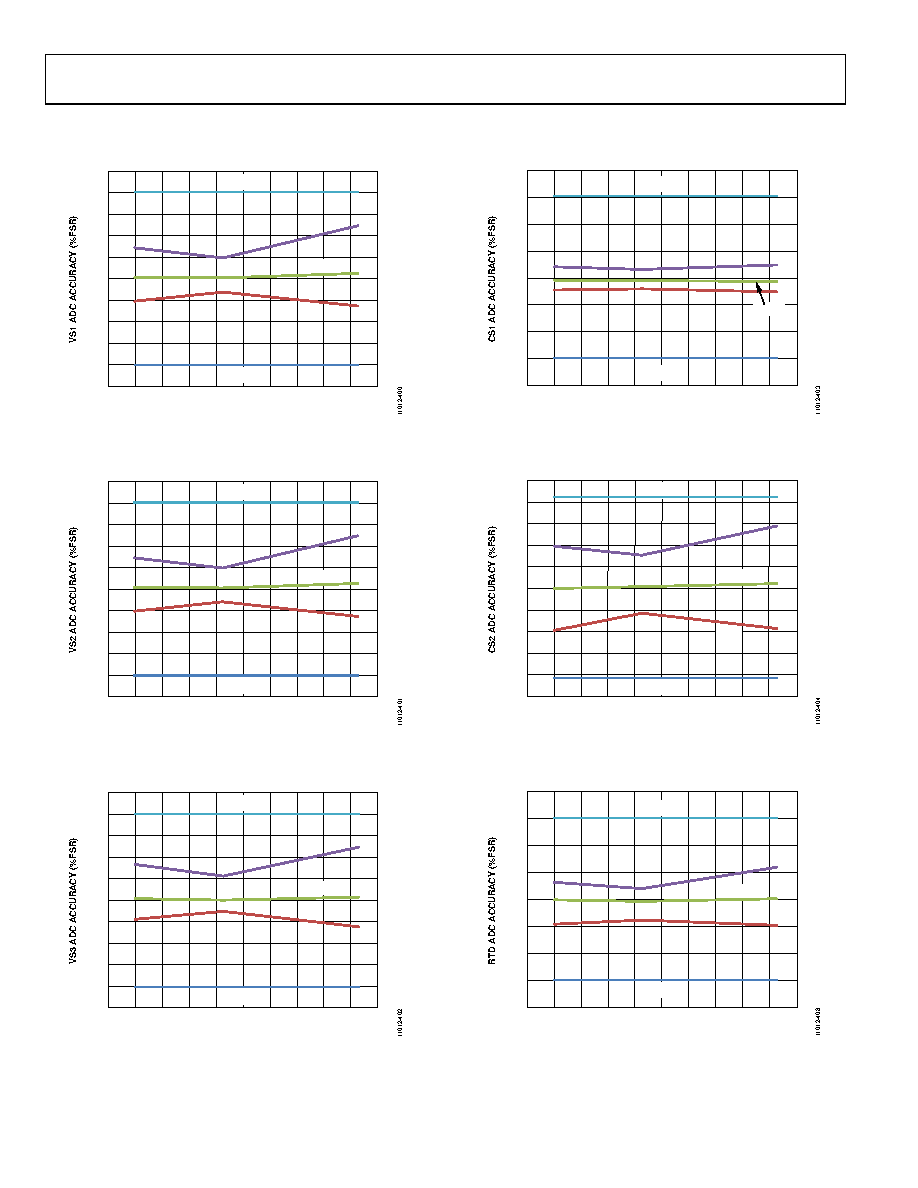

TYPICAL PERFORMANCE CHARACTERISTICS
2.5
–2.5
–2.0
–1.5
–1.0
–0.5
0
0.5
1.0
1.5
2.0
–60
–40
–20
0
20
40
60
80
100
120
140
TEMPERATURE (°C)
MAX SPEC
MIN SPEC
MIN
MEAN
MAX
Figure 4. VS1 ADC Accuracy vs. Temperature (from 10% to 90% of FSR)
2.5
–2.5
–2.0
–1.5
–1.0
–0.5
0
0.5
1.0
1.5
2.0
–60
–40
–20
0
20
40
60
80
100
120
140
TEMPERATURE (°C)
MAX SPEC
MIN SPEC
MIN
MEAN
MAX
Figure 5. VS2 ADC Accuracy vs. Temperature (from 10% to 90% of FSR)
2.5
–2.5
–2.0
–1.5
–1.0
–0.5
0
0.5
1.0
1.5
2.0
–60
–40
–20
0
20
40
60
80
100
120
140
TEMPERATURE (°C)
MAX SPEC
MIN SPEC
MIN
MEAN
MAX
Figure 6. VS3 ADC Accuracy vs. Temperature (from 10% to 90% of FSR)
4
–4
–3
–2
–1
0
1
2
3
–60
–40
–20
0
20
40
60
80
100
120
140
TEMPERATURE (°C)
MAX SPEC
MIN SPEC
MIN
MEAN
MAX
Figure 7. CS1 ADC Accuracy vs. Temperature (from 10% to 50% of FSR)
2.5
–2.5
–2.0
–1.5
–1.0
–0.5
0
1.0
0.5
1.5
2.0
–60
–40
–20
0
20
40
60
80
100
120
140
TEMPERATURE (°C)
MAX SPEC
MIN SPEC
MIN
MEAN
MAX
Figure 8. CS2 ADC Accuracy vs. Temperature (from 10% to 90% of FSR)
4
–4
–3
–2
–1
0
1
2
3
–60
–40
–20
0
20
40
60
80
100
120
140
TEMPERATURE (°C)
MAX SPEC
MIN SPEC
MIN
MAX
MEAN
Figure 9. RTD ADC Accuracy vs. Temperature (from 10% to 90% of FSR)
