IP101G
Data Sheet

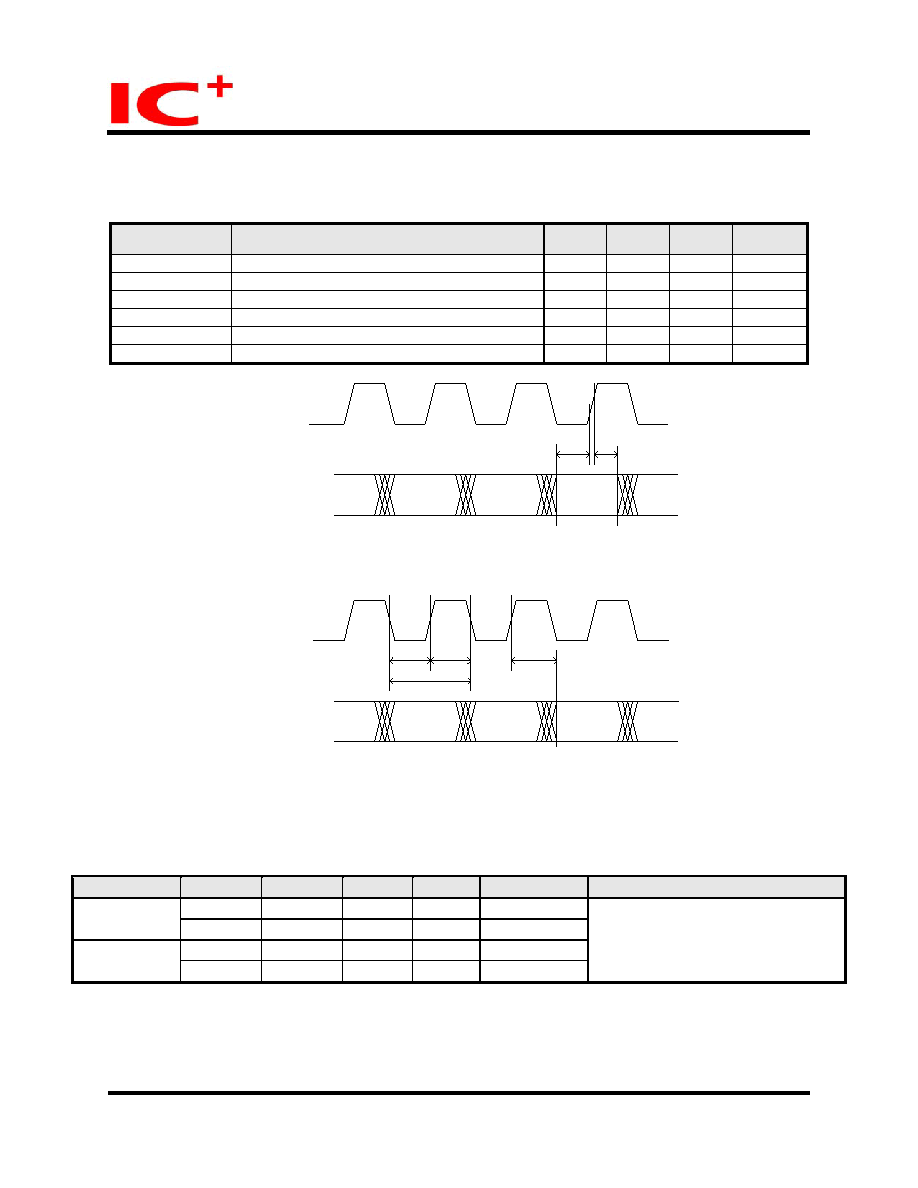

7.4.4 SMI Timing
MDC/MDIO Timing Requirements
Table 19 SMI Timing Requirements
Symbol
Description
Min.
Typ.
Max.
Unit
Tch
MDC High Time input
150
-
-
ns
Tcl
MDC Low Time input
150
-
-
ns
Tcm
MDC period input
300
-
-
ns
Tmd
MDIO output delay (read from PHY)
5
-
15
ns
Tmh
MDIO setup time (write to PHY)
10
-
-
ns
Tms
MDIO hold time (write to PHY)
10
-
-
ns
MDC
MDIO
Tms Tmh
Write Cycle
Tcl
Tch
Tcm
Tmd
MDC
MDIO
Read Cycle
Figure 23 SMI Timing Requirements
7.5 Thermal Data
Table 20 Thermal Data
Package
Theta JA
Theta JC
Psi JT
Units
PCB Layers
Conditions
83.2
42.8
10.7
oC/W
2
48-PIN LQFP
75.3
42.4
10.5
oC/W
4
49.1
30.6
13.7
oC/W
2
32-PIN QFN
35.2
26.3
5.0
oC/W
4
1) FR4 PCB size 113mm * 95.8mm,
2) 1oz Cu for each layer,
3) 1.6mm PCB thickness,
4) Air flow @ 0m/sec.
61/65
January 14, 2014
Copyright © 2011, IC Plus Corp.
