IP101G
Data Sheet

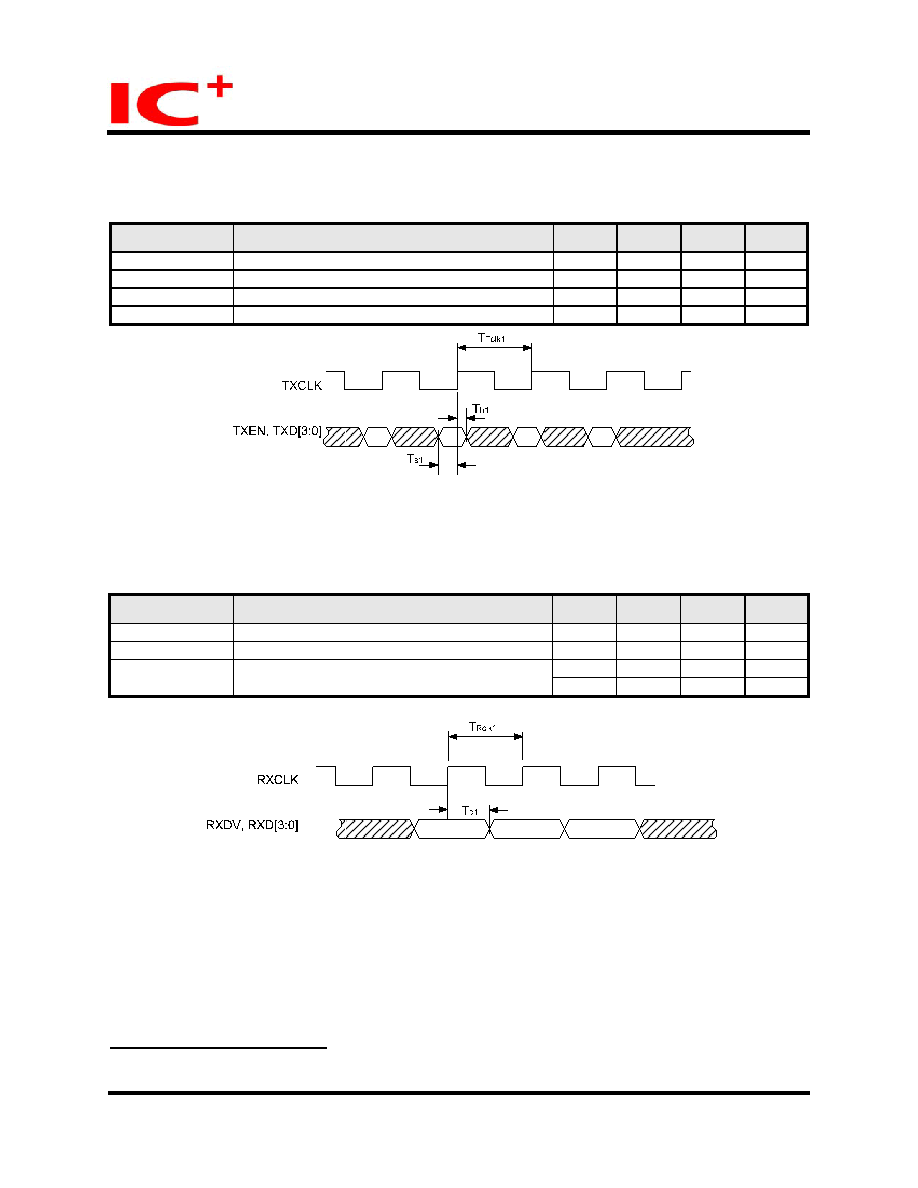

7.4.2 MII Timing
a. Transmit Timing Requirements
Table 15 MII Transmit Timing Requirements
Symbol
Description
Min.
Typ.
Max.
Unit
TTclk1
Period of transmit clock output in 100M mode
-
40
-
ns
TTclk1
Period of transmit clock output in 10M mode
-
400
-
ns
Ts1
TXEN, TXD to TX_CLK setup time
10
-
-
ns
Th1
TXEN, TXD to TX_CLK hold time
0
-
-
ns
Figure 19 MII Transmit Timing Requirements
b. Receive Timing
Table 16 MII Receive Timing Specifications
Symbol
Description
Min.
Typ.
Max.
Unit
TRclk1
Period of receive clock output in 100M mode
-
40
-
ns
TRclk1
Period of receive clock output in 10M mode
-
400
-
ns
20
22
26
ns
Td1
1 100Mbps
Td1 10Mbps
MII_RXCLK rising edge to RXDV, RXD output
delay
200
202
206
ns
Figure 20 MII Receive Timing Specifications
1 Timing was measured for the pin load TXEN and TXD[3:0] of IP101G. The reference 25MHz clock was from
output pin RXCLK of IP101G via the default driving current.
59/65
January 14, 2014
Copyright © 2011, IC Plus Corp.
IP101G-DS-R01
