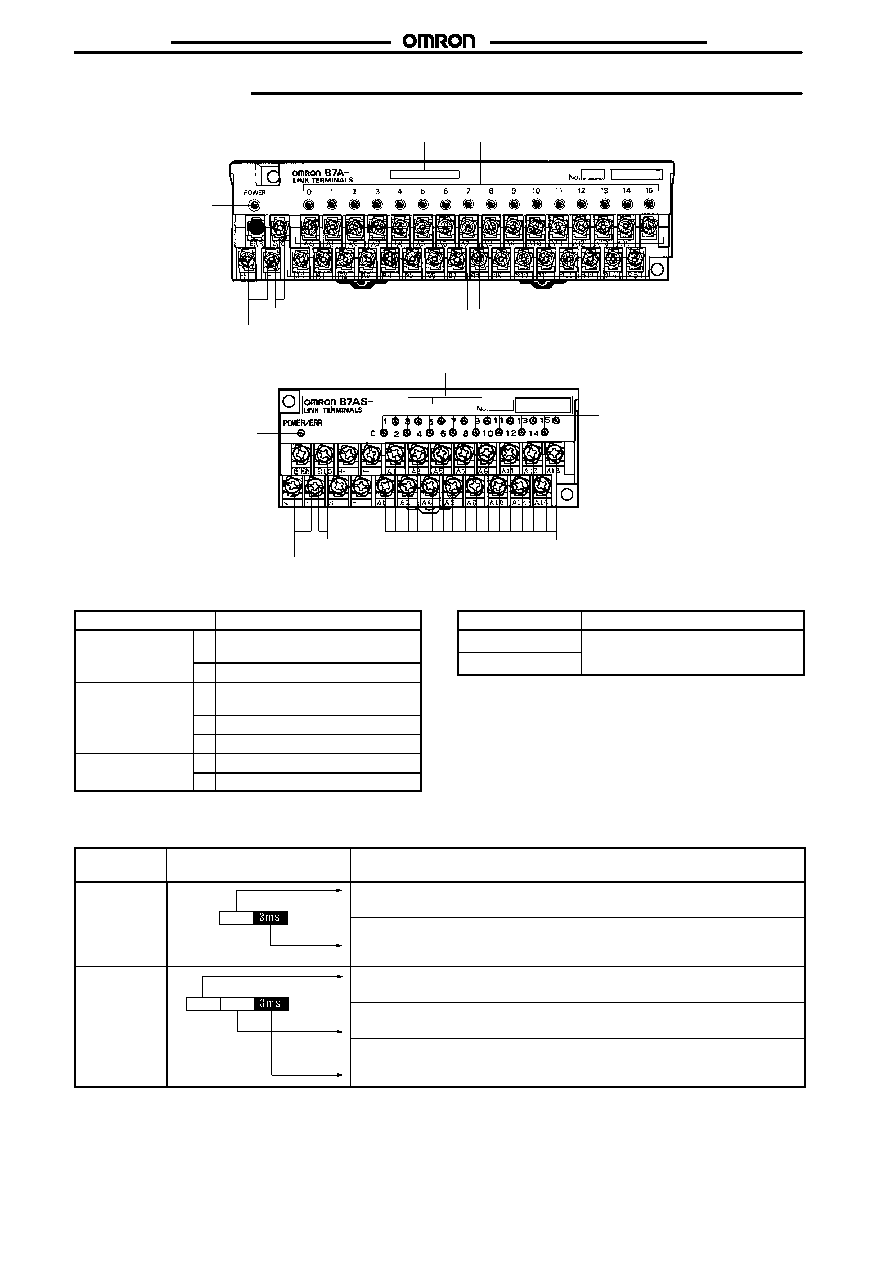

B7A/B7AS

Nomenclature

B7A

Power supply/error

indicator

Power terminals

Transmission terminals

I/O indicators

I/O terminals

Functions

B7AS

Functions

Power supply/

error indicator

Power terminals

Transmission terminals

I/O terminals

I/O indicators

Indicator Operation

Indicator

Function

POWER

(Input Terminal)

Lit when power is supplied and the

Terminal is operating.

Not lit when power is not supplied.

POWER/ERR

(Output Terminal)

Lit when power is supplied and the

Terminal is operating without error.

Lit during transmission errors.

Not lit when power is not supplied.

I/O

Lit when the input signals are ON.

Not lit when the signals are OFF.

Note:

G: Green indicator lit; R: Red indicator lit;

O: Orange indicator lit; N: Not lit

Recommended Solderless Terminals

Wire

JIS specifications

0.75 mm2 (AWG#18)

RAV 1.25 to 3.5 (vinyl-insulated round

wire) or RAP 1 25 to 3 5

1.25 mm2 (AWG#16)

wire) or RAP 1.25 to 3.5

(nylon-insulated round wire)

Functions

I/O

classification

Display

Description

Input

NPN

Input configuration

Indicates the compatible transistor type for the input device.

NPN

I/O delay time

Indicates the typical I/O delay time of the B7A. Use a combination of an Input and

an Output Link Terminal with the same I/O delay time.

Output

01A

NPN

Output configuration

Indicates the compatible transistor type for the output transistor.

0.1A

NPN

Output current

Indicates the rated output current value of the B7A per point.

I/O delay time

Indicates the typical I/O delay time of the B7A. Use a combination of an Input and

an Output Link Terminal with the same I/O delay time.
