BNC75　Series

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice.

　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

7

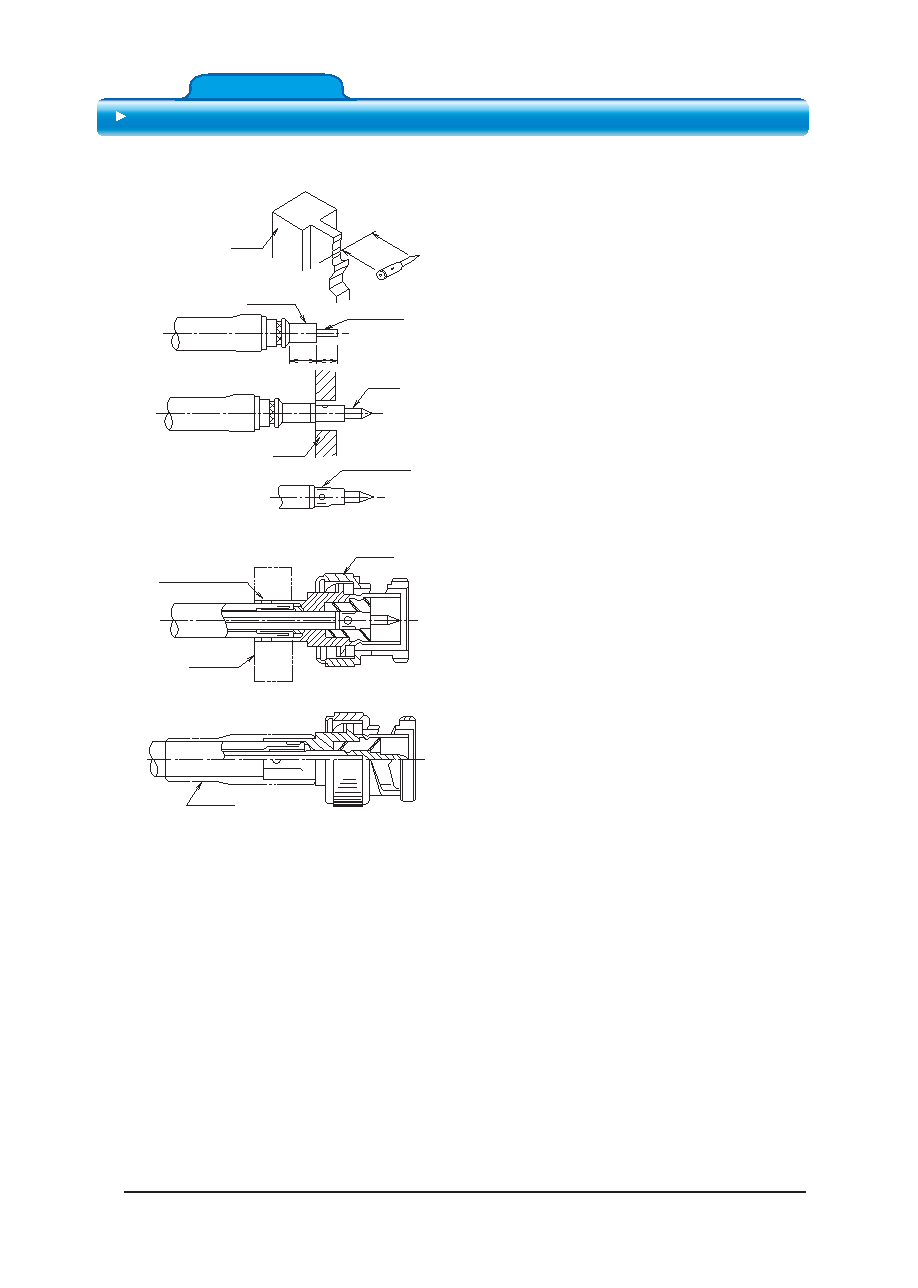

○ Assembly Instruction（2）

Boot

Ferule

Sleeve

Contact

Body

L

Boot

Cable

Sheath

Outer Conductor

15

Sleeve

Ferule

Pull out the edge

Stripper（P/N：89134）

Insulator

Cut off the outer conductor

Cut the insulator and center conductor

along this side

Center Conductor

4.8 3.4

Insulator

Center Conductor

Crimping Hole

Crimp Tool

Crimped

Contact

Crimp Tool

Crimp Position

Body

Push the crimp tool into

the root of body.

Boot

⑥

⑦

⑤

⑤ Pinch the contact in the crimping hole(center

Crimp the contact (match the side hole of contact

with the curve of crimping hole of tool.)

⑥ Insert the above contact into the body until

the top of the contact is same level of the top

of insulator.

Please do not rotate the body and cable

before crimping.

　Crimp the root of the body as fig.6.
