Unit：mm

http://www.ddknet.co.jp

BNC75　Series

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice.

　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

6

Boot

Ferule

Sleeve

Contact

Body

L

Boot

Cable

Sheath

Outer Conductor

15

Sleeve

Ferule

Pull out the edge

Stripper（P/N：89134）

Insulator

Cut off the outer conductor

Cut the insulator and center conductor

along this side

Center Conductor

4.8 3.4

Insulator

Center Conductor

Crimping Hole

Crimp Tool

Crimped

Contact

Crimp Tool

Crimp Position

Body

Push the crimp tool into

the root of body.

Boot

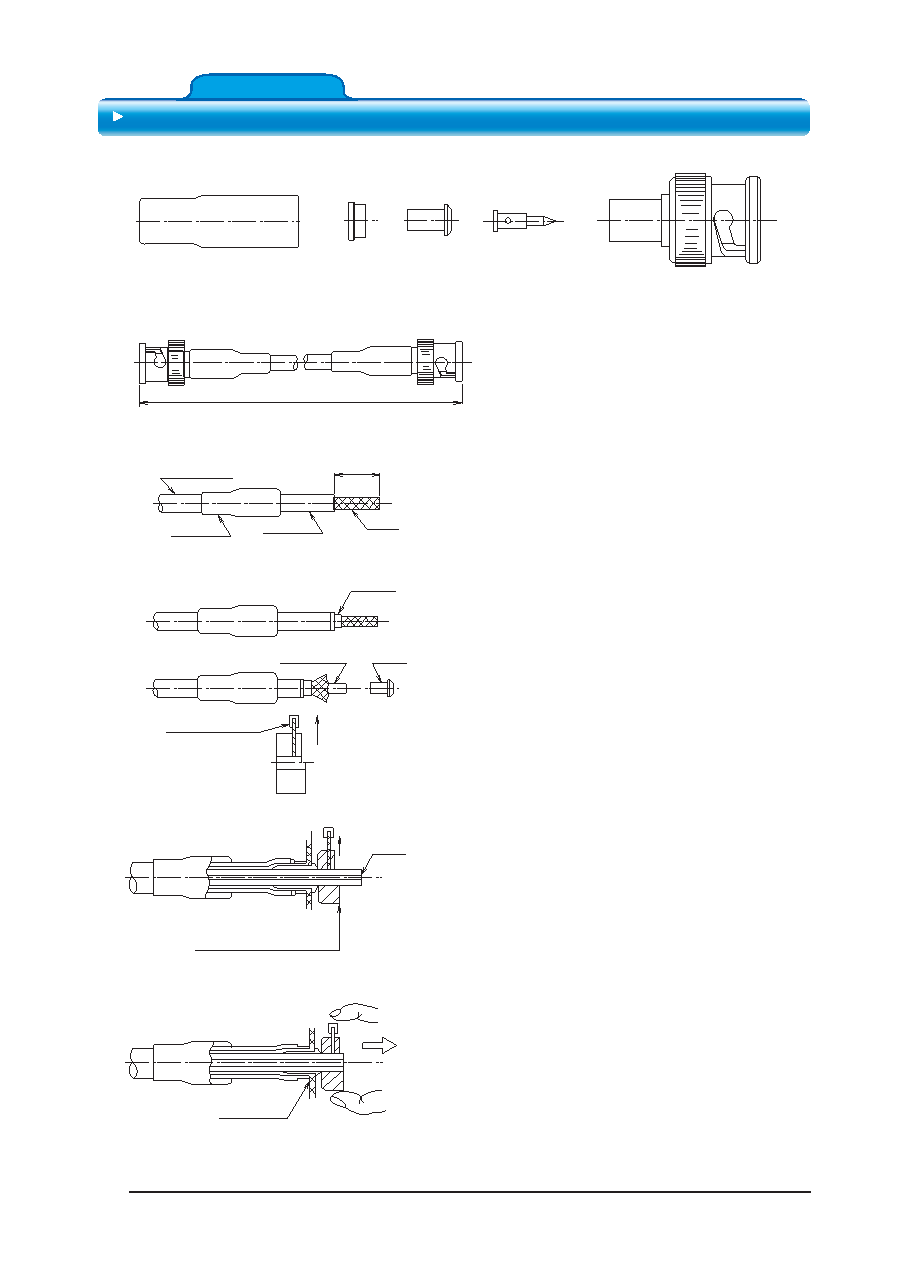

○Assembly Instruction（2）

Boot

Ferule

Sleeve

Contact

Body

L

Boot

Cable

Sheath

Outer Conductor

15

Sleeve

Ferule

Pull out the edge

Stripper（P/N：89134）

Insulator

Cut off the outer conductor

Cut the insulator and center conductor

along this side

Center Conductor

4.8 3.4

Insulator

Center Conductor

Crimping Hole

Crimp Tool

Crimped

Contact

Crimp Tool

Crimp Position

Body

Push the crimp tool into

the root of body.

Boot

①

②

③

④

The cable length require for the double-ended cable

assembly.

L-12mm

as fig.1. Please be carefule to not damage the outer

conductor.

② Insert the ferule toward outer conductor.

Spread the outer conductor and press in the

sleeve with stripper (P/N:89134).

③ Cut the extra outer conductor and insulator

from the stripper along the surface as fig.3.

④ Push the edge of the stripper and rotate.

Separate the insulator toward the arrow.

　Cut the outer conductor along the surface of sleeve.

Parts Configulration
