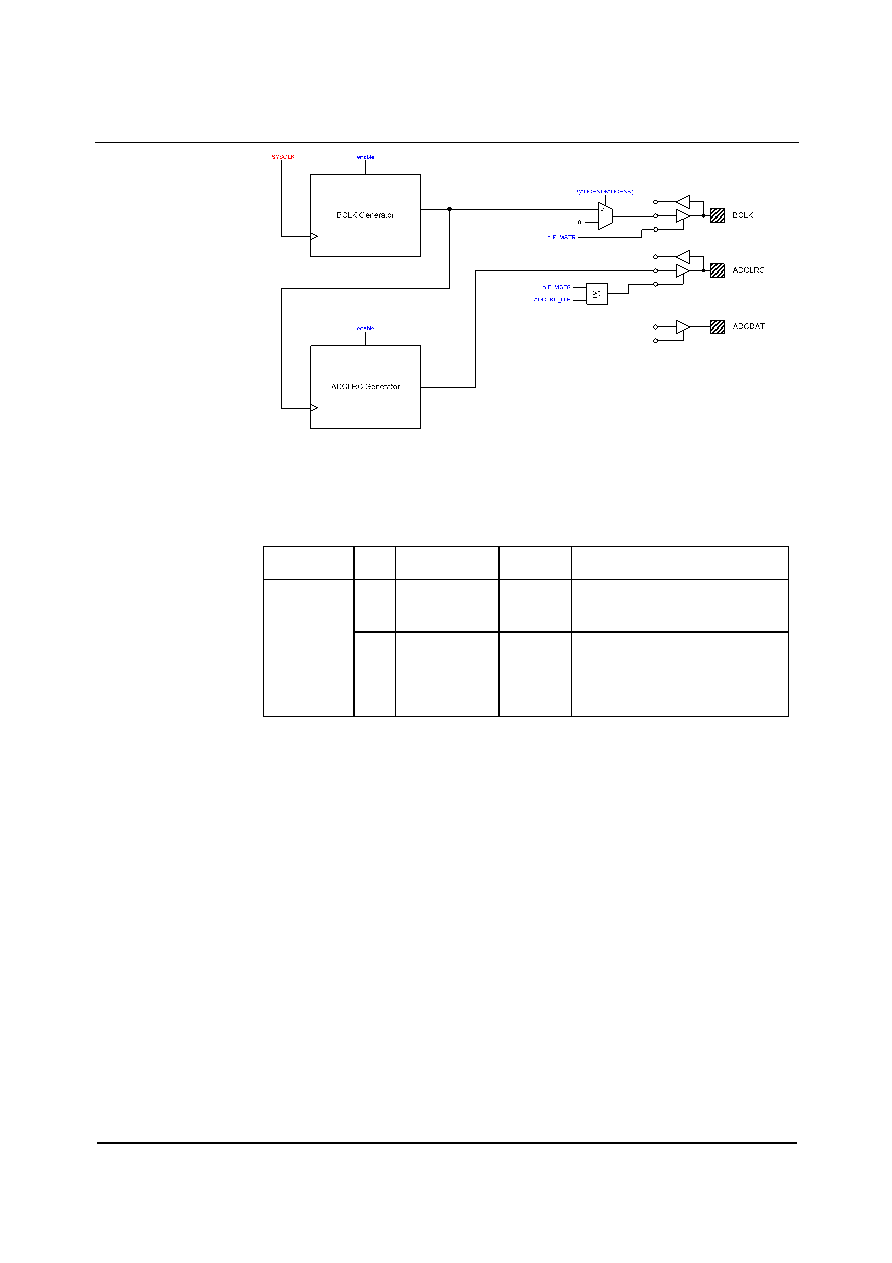

57 / 100 page ![]() Production Data WM8953 w PD, January 2009, Rev 4.0 57 Figure 31 Audio Interface Output Control The Audio Interface output control is illustrated above. The master mode control register AIF_MSTR and the left-right clock control register ADCLRC_DIR determine whether the WM8953 generates the associated clocks. These registers are described in Table 32 below. REGISTER ADDRESS BIT LABEL DEFAULT DESCRIPTION 15 AIF_MSTR 0b Audio Interface Master Mode Select 0 = Slave mode 1 = Master mode R8 (08h) 11 ADCLRC_DIR 0b ADCLRC Direction (Forces ADCLRC clock to be output in slave mode) 0 = ADCLRC normal operation 1 = ADCLRC clock output enabled Table 32 Audio Interface Output Function Control OPERATION WITH TDM Time division multiplexing (TDM) allows multiple devices to transfer data simultaneously on the same bus. The WM8953 supports TDM in master and slave modes for all data formats and word lengths. TDM is enabled using register bit AIFADC_TDM. The TDM data slot is programmed using register bit AIFADC_TDM_CHAN. |
|
