Data Sheet

ADL8142

GaAs, pHEMT, MMIC, Low Noise Amplifier, 23 GHz to 31 GHz

Rev. 0

DOCUMENT FEEDBACK

TECHNICAL SUPPORT

Information furnished by Analog Devices is believed to be accurate and reliable "as is". However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to

change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective owners.

FEATURES

►

Low noise figure: 1.6 dB typical at 27 GHz to 31 GHz

►

Single positive supply (self biased)

►

High gain: 27 dB typical at 27 GHz to 31 GHz

►

High OIP3: 29 dBm typical at 27 GHz to 31 GHz

►

RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP

APPLICATIONS

►

Satellite communication

►

Telecommunications

►

Civilian radar

GENERAL DESCRIPTION

The ADL8142 is a gallium arsenide (GaAs), monolithic microwave

integrated circuit (MMIC), pseudomorphic high electron mobility

transistor (pHEMT), low noise wideband amplifier that operates

from 23 GHz to 31 GHz. The ADL8142 provides a typical gain of

27 dB, a 1.6 dB typical noise figure, and a typical output third-order

intercept (OIP3) of 29 dBm at 27 GHz to 31 GHz, requiring only

25 mA from a 2 V supply voltage. Note that the OIP3 can be

improved with larger drain currents. The ADL8142 also features

inputs and outputs that are ac-coupled and internally matched to

50 Ω, making it ideal for high capacity microwave radio applica-

tions.

The ADL8142 is housed in a RoHS-compliant, 2 mm × 2 mm,

8-lead LFCSP.

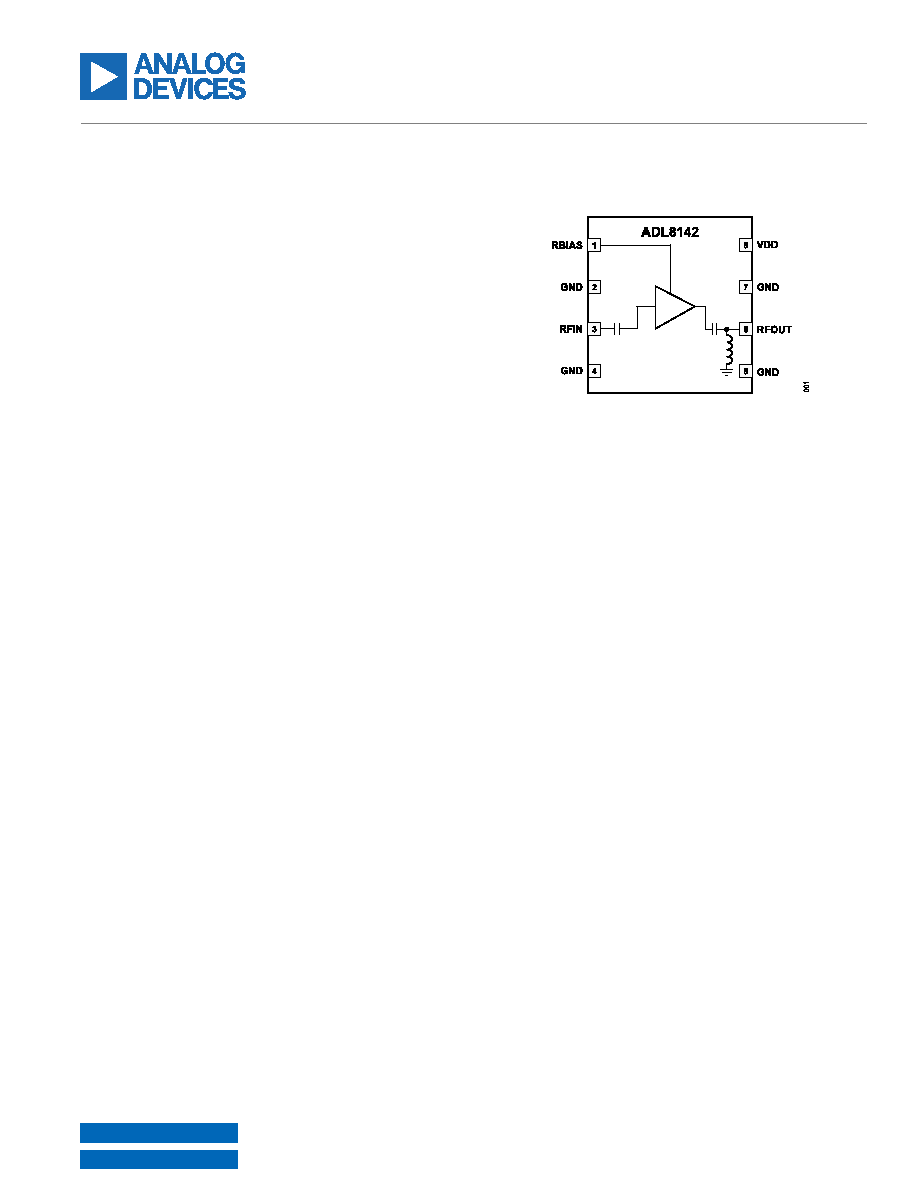

FUNCTIONAL BLOCK DIAGRAM

Figure 1.
