ADRF6614
Data Sheet
Rev. 0 | Page 20 of 61
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700 2900
RF FREQUENCY (MHz)
LPF = 0
LPF = 2
LPF = 4
LPF = 6

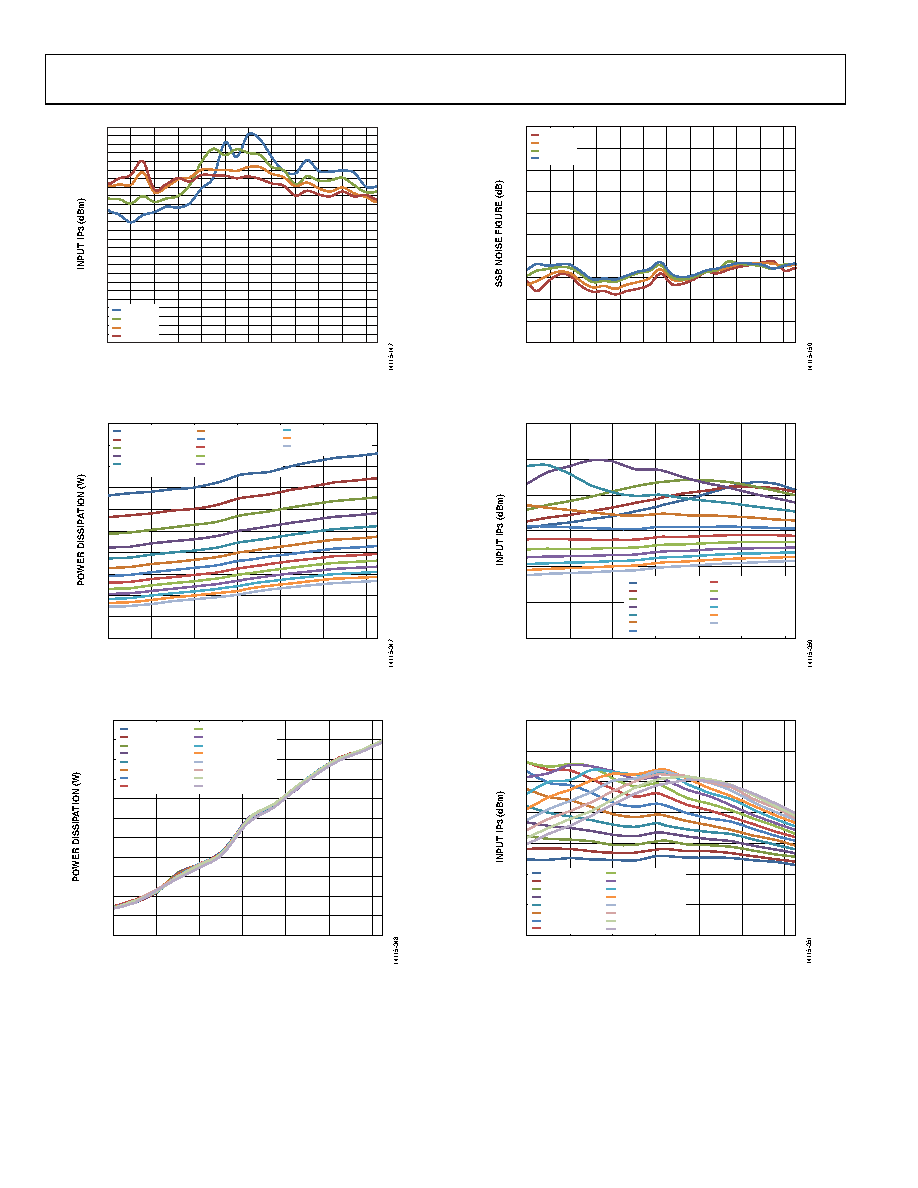

Figure 46. Input IP3 vs. RF Frequency for All LPF Settings,
RFB and VGS Bit Use Optimum Settings
TEMPERATURE (°C)
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
–40
–20
0
20
40
60
80
IFA_MAINBIAS = 3
IFA_MAINBIAS = 4
IFA_MAINBIAS = 5
IFA_MAINBIAS = 6
IFA_MAINBIAS = 7
IFA_MAINBIAS = 8
IFA_MAINBIAS = 9
IFA_MAINBIAS = 10
IFA_MAINBIAS = 11
IFA_MAINBIAS = 12
IFA_MAINBIAS = 13
IFA_MAINBIAS = 14
IFA_MAINBIAS = 15
Figure 47. Power Dissipation vs. Temperature for Various IFA_MAINBIAS Settings
TEMPERATURE (°C)
2.16
2.18
2.20
2.22
2.24
2.26
2.28
2.30
2.32
2.34
2.36
2.38
–40
–20
0
20
40
60
80
IFA_LINBIAS = 0
IFA_LINBIAS = 1
IFA_LINBIAS = 2
IFA_LINBIAS = 3
IFA_LINBIAS = 4
IFA_LINBIAS = 5
IFA_LINBIAS = 6
IFA_LINBIAS = 7
IFA_LINBIAS
= 8
IFA_LINBIAS
= 9
IFA_LINBIAS
= 10
IFA_LINBIAS
= 11
IFA_LINBIAS
= 12
IFA_LINBIAS
= 13
IFA_LINBIAS
= 14
IFA_LINBIAS
= 15
Figure 48. Power Dissipation vs. Temperature for Various IFA_LINBIAS Settings
8
9
10
11
12
13
14
15
16
17
18
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700 2900
RF FREQUENCY (MHz)
LPF = 0
LPF = 2
LPF = 4
LPF = 6
Figure 49. SSB Noise Figure vs. RF Frequency for All LPF Settings,
RFB and VGS Bit Use Optimum Settings
TEMPERATURE (°C)
10
15
20
25
30
35
40
–40
–20
0
20
40
60
80
IFA_MAINBIAS = 3
IFA_MAINBIAS = 4
IFA_MAINBIAS = 5
IFA_MAINBIAS = 6
IFA_MAINBIAS = 7
IFA_MAINBIAS = 8
IFA_MAINBIAS = 9
IFA_MAINBIAS = 10
IFA_MAINBIAS = 11
IFA_MAINBIAS = 12
IFA_MAINBIAS = 13
IFA_MAINBIAS = 14
IFA_MAINBIAS = 15
Figure 50. Input IP3 vs. Temperature for Various IFA_MAINBIAS Settings
22
24
26
28
30
32
34
36
–40
–20
0
20
40
60
80
TEMPERATURE (°C)
IFA_LINBIAS = 0
IFA_LINBIAS = 1
IFA_LINBIAS = 2
IFA_LINBIAS = 3
IFA_LINBIAS = 4
IFA_LINBIAS = 5
IFA_LINBIAS = 6
IFA_LINBIAS = 7
IFA_LINBIAS = 8
IFA_LINBIAS = 9
IFA_LINBIAS = 10
IFA_LINBIAS = 11
IFA_LINBIAS = 12
IFA_LINBIAS = 13
IFA_LINBIAS = 14
IFA_LINBIAS = 15
Figure 51. Input IP3 vs. Temperature for Various IFA_LINBIAS Settings
