Data Sheet

ADRF6614

Rev. 0 | Page 51 of 61

Bits

Bit Name

Settings

Description

Reset

Access

[4:2]

CPCTRL

Set charge pump control.

0x4

000

Both on.

001

Pump down.

010

Pump up.

011

Tristate.

100

PFD.

101

Unused.

110

Unused.

111

Unused.

[1:0]

CLKEDGE

Set PFD edge sensitivity.

0x0

Divider and reference down edge.

Divider down edge, reference up edge.

Divider up edge, reference down edge.

Divider and reference up edge.

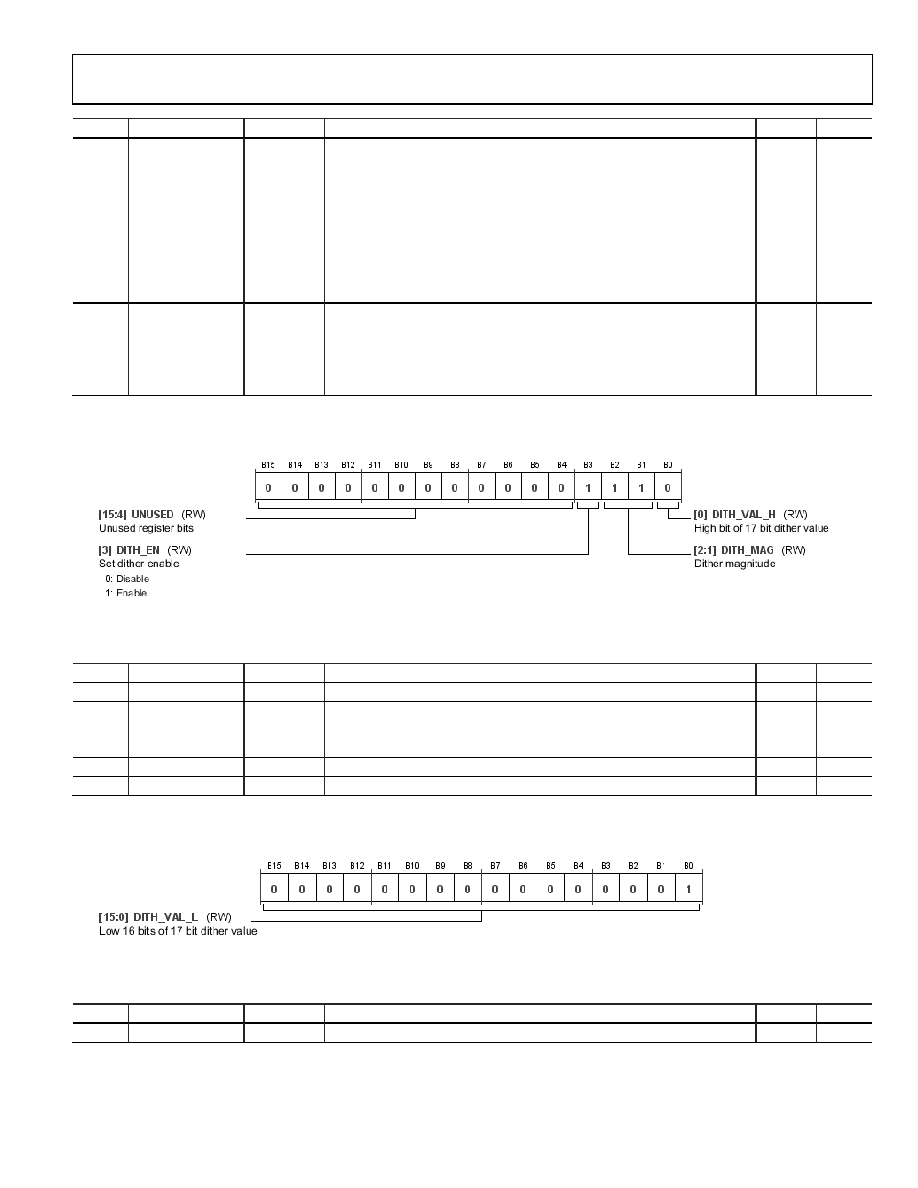

Address: 0x42, Reset: 0x000E, Name: DITH_CTRL1

Table 38. Bit Descriptions for DITH_CTRL1

Bits

Bit Name

Settings

Description

Reset

Access

[15:4]

UNUSED

Unused register bits.

0x0

DITH_EN

Set dither enable.

0x1

Disable.

Enable.

[2:1]

DITH_MAG

Dither magnitude.

0x3

DITH_VAL_H

Highest bit of 17-bit dither value.

0x0

Address: 0x43, Reset: 0x0001, Name: DITH_CTRL2

Table 39. Bit Descriptions for DITH_CTRL2

Bits

Bit Name

Settings

Description

Reset

Access

[15:0]

DITH_VAL_L

Lowest 16 bits of 17-bit dither value.

0x1
