Data Sheet
ADRF6614
Rev. 0 | Page 11 of 61
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
1
2
3
4
5
6
7
8
9
10
11
12
35
36
34
33
32
31
30
29
28
27
26
25
ADRF6614
TOP VIEW
(Not to Scale)
GND
VCOVTUNE
GND
EXTVCOIN+
EXTVCOIN–
GND
VCC1
DECL1
DECL2
DECL3
DECL4
DECL5
RFIN1
VCC10
VCC9
VCC8
VCC7
LDO2
VCC6
VCC5
VCC4
RFIN2
RFBCT2
RFBCT1
NOTES
1. DNC = DO NOT CONNECT.
2. THE EXPOSED PAD MUST BE CONNECTED TO A GROUND
PLANE WITH LOW THERMAL IMPEDANCE.

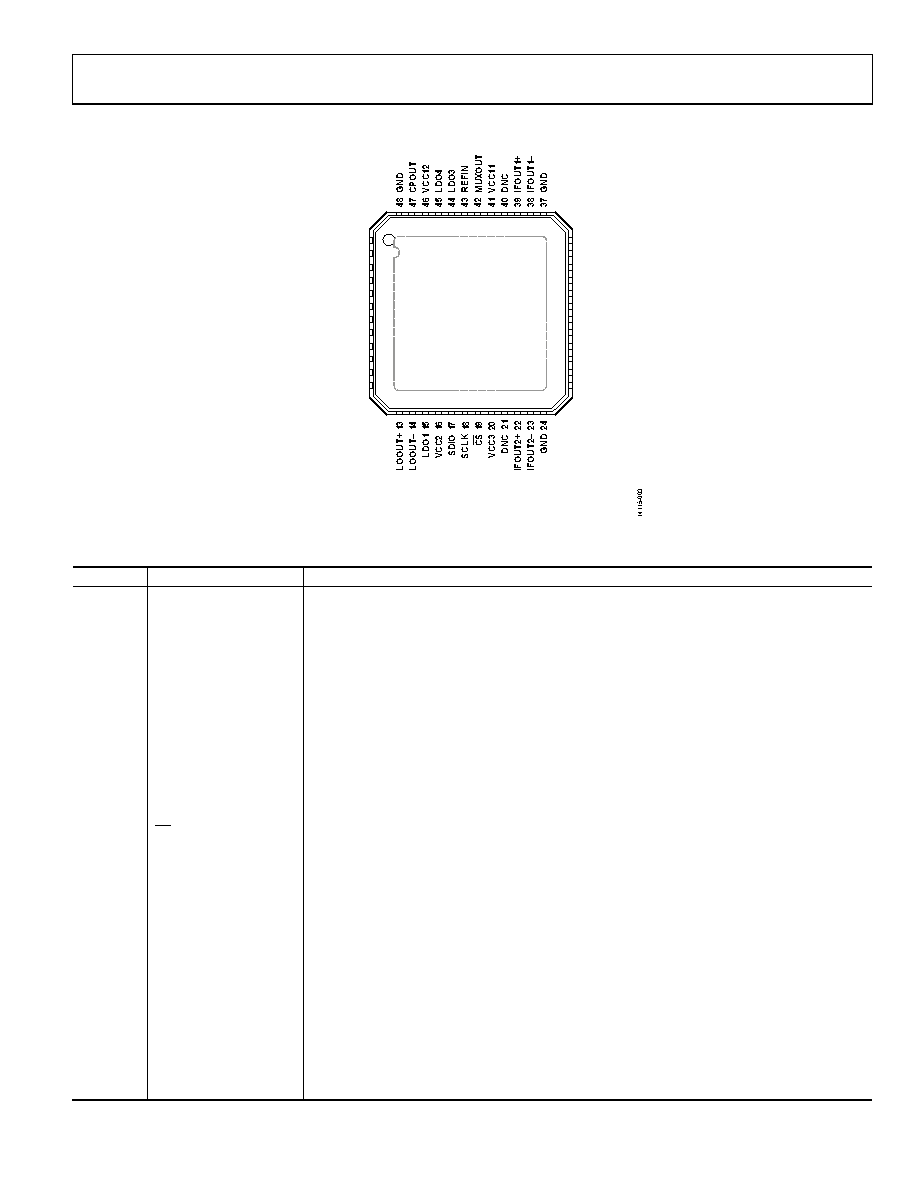

Figure 3. Pin Configuration
Table 10. Pin Function Descriptions
Pin No.
Mnemonic
Description
1
GND
Common Ground Connection for External Loop Filter.
2
VCOVTUNE
Control Voltage for Internal VCO.
3, 6
GND
Common Ground for External VCO.
4, 5
EXTVCOIN+, EXTVCOIN−
Inputs from External VCO to Internal Divider.
7
VCC1
3.7 V VCO Supply.
8, 9
DECL1, DECL2
LDO Output Decouplers for VCO.
10, 11
DECL3, DECL4
External Decouplers for VCO Buffer.
12
DECL5
External Decoupler for VCO Circuitry.
13, 14
LOOUT+, LOOUT−
Differential Outputs of Internally Generated LO.
15
LDO1
External Decoupling for Internal 2.5 V SPI Port LDO.
16
VCC2
3.7 V Supply for Programmable SPI Port.
17
SDIO
Serial Data Input/Output for Programmable SPI Port.
18
SCLK
Clock for Programmable SPI Port.
19
CS
SPI Chip Select, Active Low.
20, 41
VCC3, VCC11
5 V Biases for Channel 1 and Channel 2 IF.
21, 40
DNC
Do Not Connect. Do not connect these pins externally.
22, 23
IFOUT2+, IFOUT2−
Channel 2 Differential IF Outputs.
24, 37
GND
Ground Connections for Channel 1 and Channel 2 IF Stage.
25
RFBCT2
Balun Center Tap Connection for Channel 2 RF Input.
26
RFIN2
Channel 2 RF Input.
27, 28, 29
VCC4, VCC5, VCC6
5 V Supplies for Mixer LO Amplifiers.
30
LDO2
External Decoupling for Internal 3.3 V PLL/Divider LDO.
31
VCC7
3.7 V Supply for Mixer LO Divider Chain.
32, 33, 34
VCC8, VCC9, VCC10
5 V Supplies for Mixer LO Amplifiers.
35
RFIN1
Channel 1 RF Input.
36
RFBCT1
Balun Center Tap Connection for Channel 1 RF Input.
38, 39
IFOUT1−, IFOUT1+
Channel 1 Differential IF Outputs.
42
MUXOUT
Internal Multiplexer Output.
