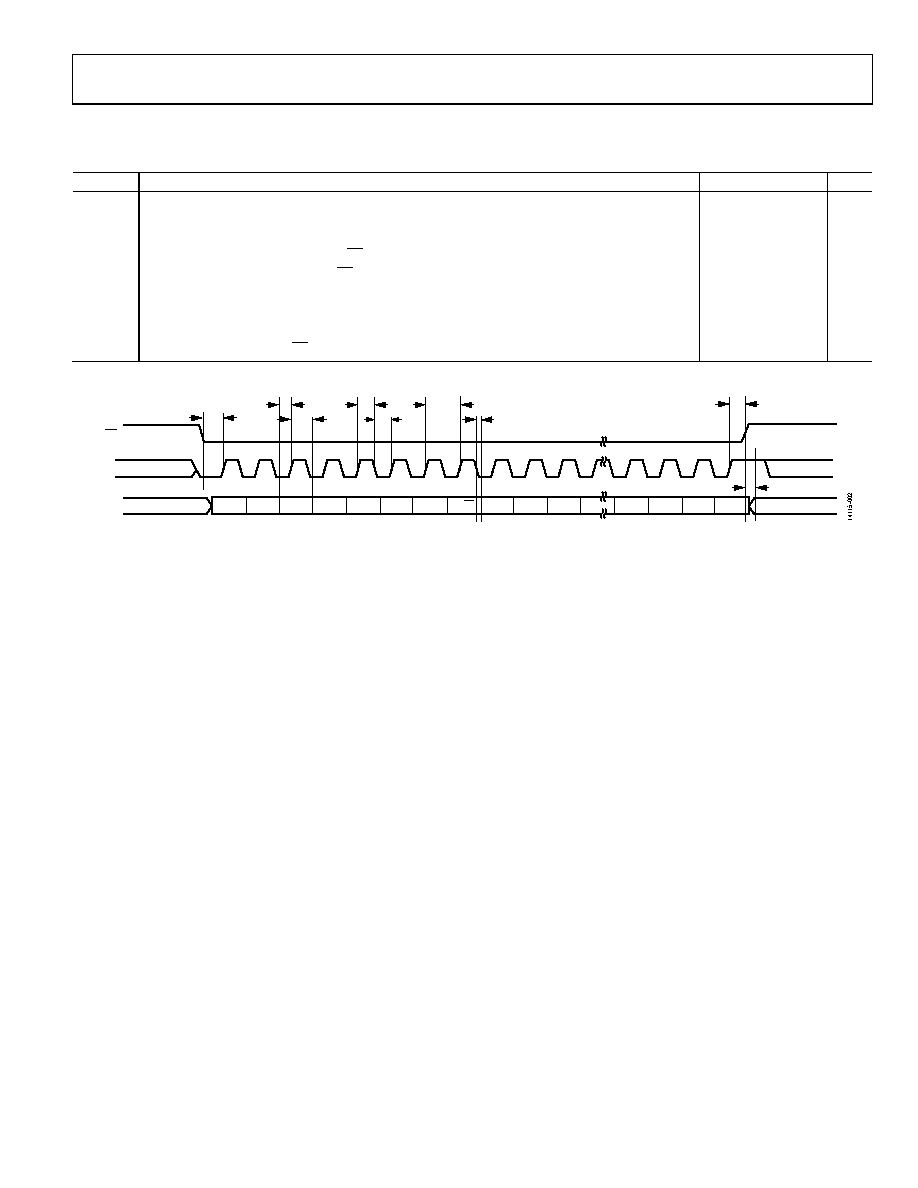

9 / 61 page ![]() Data Sheet ADRF6614 Rev. 0 | Page 9 of 61 DIGITAL LOGIC SPECIFICATIONS Table 7. Symbol Description Min Typ Max Unit tCLK Serial clock period 38 ns tDS Setup time between data and rising edge of SCLK 8 ns tDH Hold time between data and rising edge of SCLK 8 ns tS Setup time between falling edge of CS and SCLK 10 ns tH Hold time between rising edge of CS and SCLK 10 ns tHIGH Minimum period for SCLK to be in a logic high state 10 ns tLOW Minimum period for SCLK to be in a logic low state 10 ns tACCESS Maximum delay between falling edge of SCLK and output data Valid for a read operation 231 ns tZ Maximum delay between CS deactivation and SDIO bus return to high impedance 5 ns tS tDS tDH tHIGH tLOW tCLK tH DON'T CARE DON'T CARE A5 A4 A3 A2 A1 A0 D15 D14 D13 D3 D2 D1 D0 DON'T CARE DON'T CARE SCLK SDIO R/W tZ tACCESS A6 CS Figure 2. Setup and Hold Timing Measurements |
|
