07 | Keysight | Infiniium Z-Series Oscilloscopes - Data Sheet

The Optical Modulation Analyzer

Z-Series oscilloscopes are also available

in combination with the N4391A

optical modulation analyzer as a fully

specified turn-key instrument. This

compact solution offers the highest

bandwidth available on the market and

is the most advanced test solution for

advanced research on 400G and terabit

transmission. Even for the lower 20 GHz

bandwidth range, this compact and

easy-to-use solution is a reference system

for 100G transmission required by R&D

labs working at 100G and beyond. By

providing four channels of up to 63 GHz

bandwidth, the Z-Series saves you the

expense of a second instrument to analyze

dual polarization.

If you prefer to operate with your own

optical receivers but want to benefit from

the enormous analysis capability, you can

get the N4391A’s analysis software as a

standalone package.

Features and benefits

– Up to 63 GHz true analog

bandwidth on four channels by time

synchronizing two 2-channel, 63 GHz

scopes

– Up to 33 GHz true analog bandwidth

on four channels in one scope

– Up to 120 Gbaud symbol rate analysis

– Four times better EVM noise floor

than typical QPSK transmitter

– Compact four channels in turn-key

solution

– Up to four 160 GSa/s real-time

sampling for optimal phase tracking

– Well-defined interface to include your

own MATLAB algorithms

– Customer-configurable APSK and

OFDM decoders

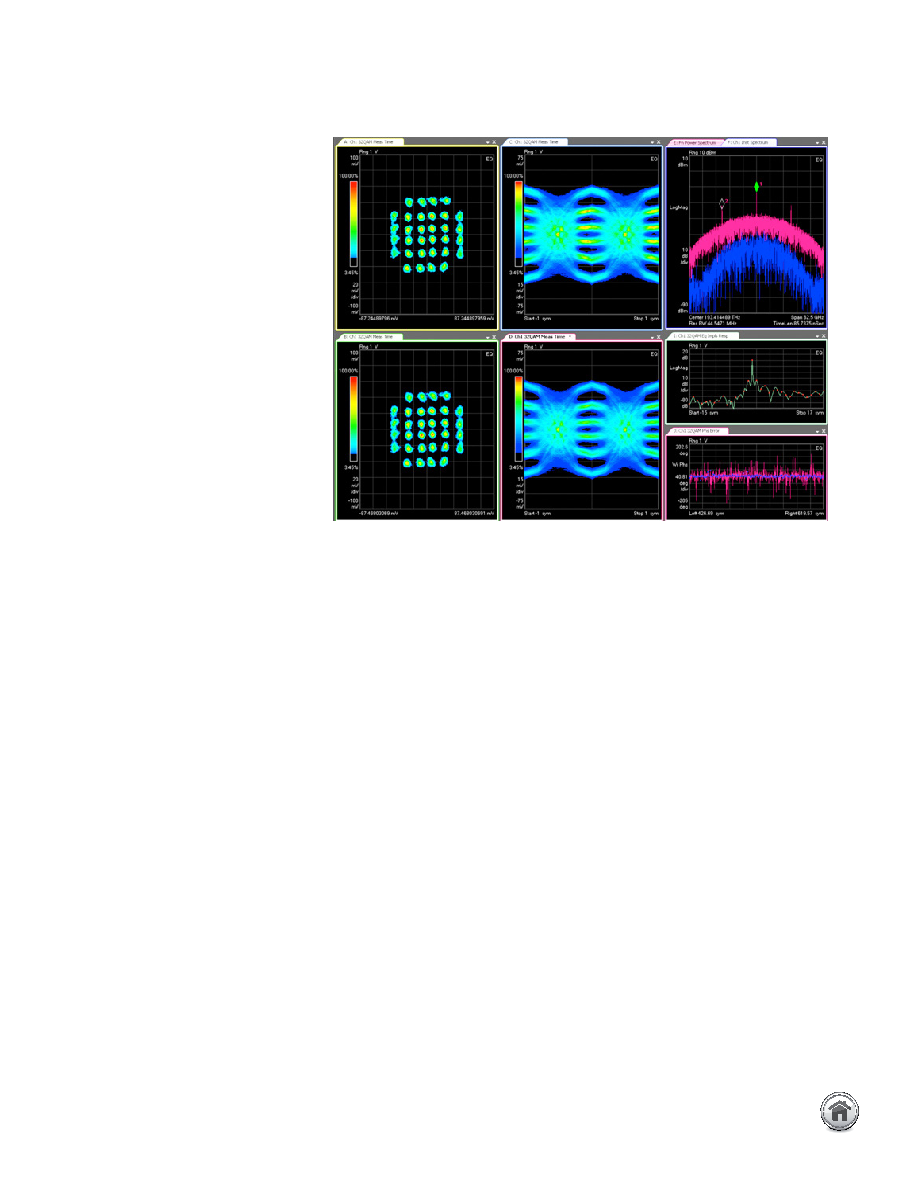

The N4391A offers a powerful toolset to debug the most challenging errors, with tools proven by

thousands of RF engineers.
