06 | Keysight | Infiniium Z-Series Oscilloscopes - Data Sheet

You need to easily compute both

magnitude and phase

Infiniium Z-Series oscilloscopes include

a Fast Fourier Transform (FFT) for

frequency domain (spectrum) analysis. The

integrated FFT offers an alternative to a

dedicated spectrum analyzer. Use the FFT

to compute both magnitude and phase

and take advantage of several useful

features to assist in spectral analysis.

The FFT can control span and resolution

bandwidth. Automatic measurements

and markers measure spectral peak

frequencies and magnitudes as well as

deltas between peaks. Use the amplitude

demodulation (envelope mode) to measure

rise and fall times on the entire envelope.

Z-Series features the following

to enable extreme RealEdge

analysis

– Multiple FFT windows including

Hanning, rectangular, Blackman-

Harris, flattop, and Hamming

– Peak search and navigation for fast

analysis

– Amplitude modulation (envelope

mode) — create radar envelopes

– FFT mask trigger

– Gated FFT measurements

The Spectrum Analyzer — Radar and Satellite Communications Analysis

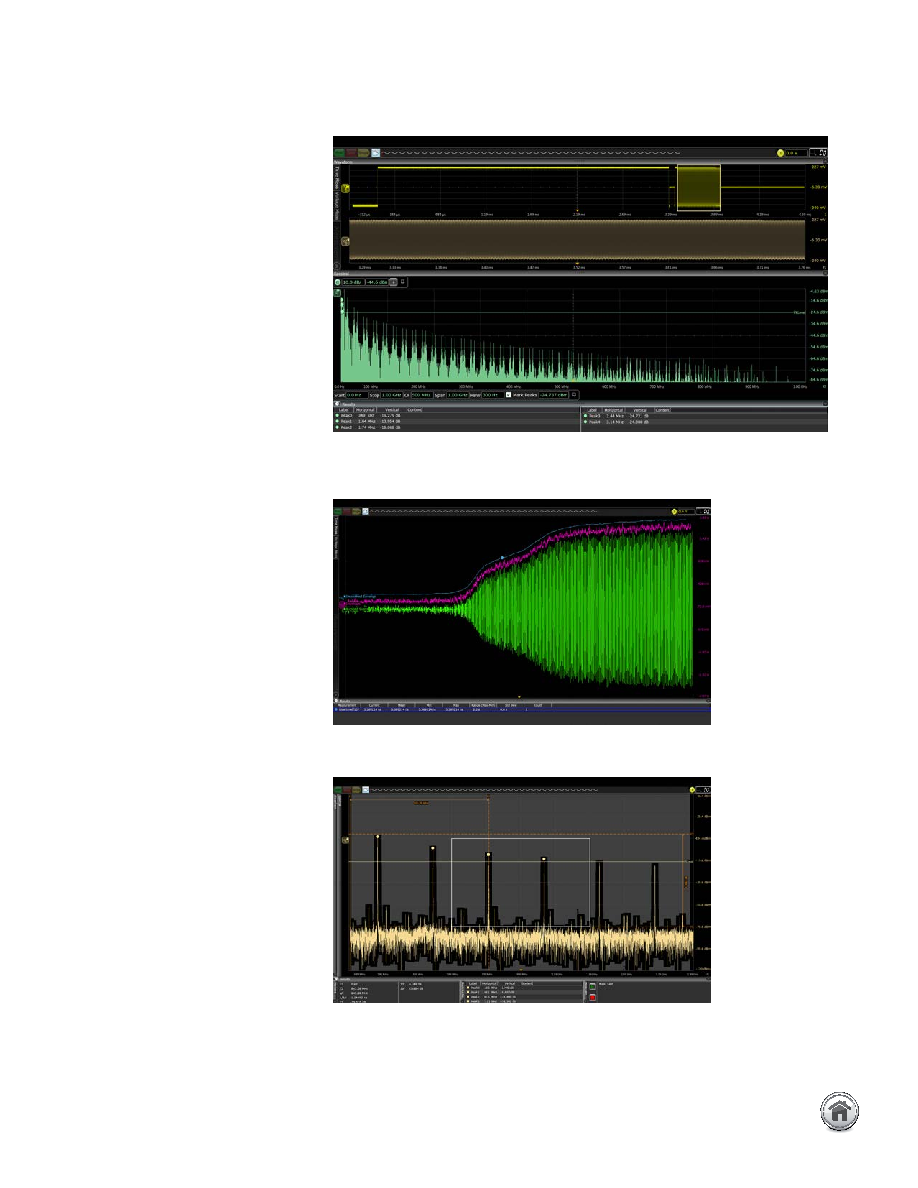

The Z-Series FFT quickly identifies peaks and has key controls such as span, start and stop, which

make the oscilloscope behave more like a spectrum analyzer.

Ampltitude demodulation makes it possible to analyze difficult waveforms such as envelopes.

Use the FFT mask to test frequency margins and capture rare events.
