Analysis Tools: Serial Data Equalization (N5461A)

Significantly reduce receiver

errors by opening even tightly

shut eyes through equalization

emulation

Serial data equalization for the Z-Series

provides fast and accurate equalization

using decision feedback equalization

(DFE), feed-forward equalization (FFE),

and continuous-time linear equalization

(CTLE) modeling in real-time. Serial data

equalization software allows you to input

your own self-designated tap values

to verify your design. If you prefer, the

software will find the optimal tap values

for you. CTLE allows DC gain and two-pole

modeling.

Analysis Tools: InfiniiScan

(N5414B)

Trigger on events that hardware

triggers can’t handle

InfiniiScan software allows you to use an

oscilloscope to identify signal integrity

issues that hardware triggering is unable

to find in your electronic designs. This

innovative software scans through

thousands of acquired waveforms

per second to help you isolate signal

anomalies, saving you time and improving

designs.

Innovative triggers

The zone qualify finder allows you to draw

a “must intersect” or “must not intersect”

zone on the oscilloscope screen to visually

determine the event identify condition. If

you can see the event of interest on the

screen, you can create a trigger that will

isolate it, saving significant time over some

complicated hardware triggers.

Other triggers include non-monotonic

edge, measurement limit search, runt and

pulse width.

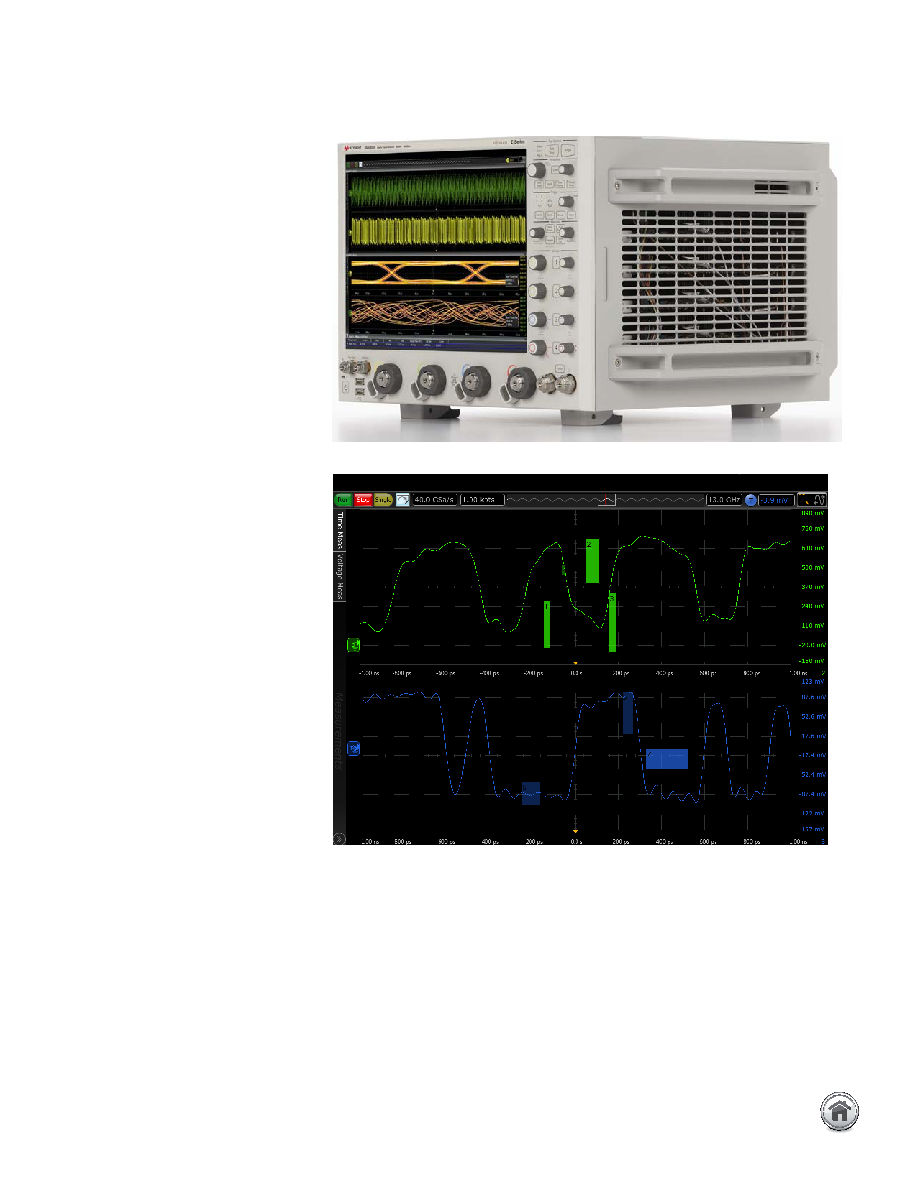

Draw zones on your screen for a unique triggering experience.
