Preliminary

TTP259

TonTouch

2015/05/25

Page 45 of 81

Ver: 1.1

IICRDATL1[228H]: IIC fast read data low nibble register 1 [R/W], default value [0000]

Bit3

Bit2

Bit1

Bit0

Bit Name

RDAT13

RDAT12

RDAT11

RDAT10

Read/Write

R/W

RDAT13~RDAT10: IIC fast read low nibble data 1.

IICRDATH1[229H]: IIC fast read data high nibble register 1 [R/W], default value [0000]

Bit3

Bit2

Bit1

Bit0

Bit Name

RDAT17

RDAT16

RDAT15

RDAT14

Read/Write

R/W

RDAT17~RDAT14: IIC fast read high nibble data 1.

.IIC operation

IIC support normal mode and fast read mode. Normal mode is

compatible to standard IIC bus. Fast read mode is support fast read data, for

reduce CPU wait time.

In normal mode, IIC device address match and completion of one byte of

data transfer, interrupt will occur. It is set at the falling edge of the 9th clock in

normal mode. if master read last data, master does not send acknowledge to

IIC device, it can let IIC device know don’t need to send data, and do dummy

write for release data bus to avoid bus error.

When an interrupt occurs, MCU must first determine the current mode

will be receive or transmit, and then determine whether the command mode

by MAASF flag. Due to the process by software, so before entering the

interrupt will pull low the SCL, to notify the Master waits. In receive mode

when reading IICDATL and the transfer mode when writing IICDATL, the SCL

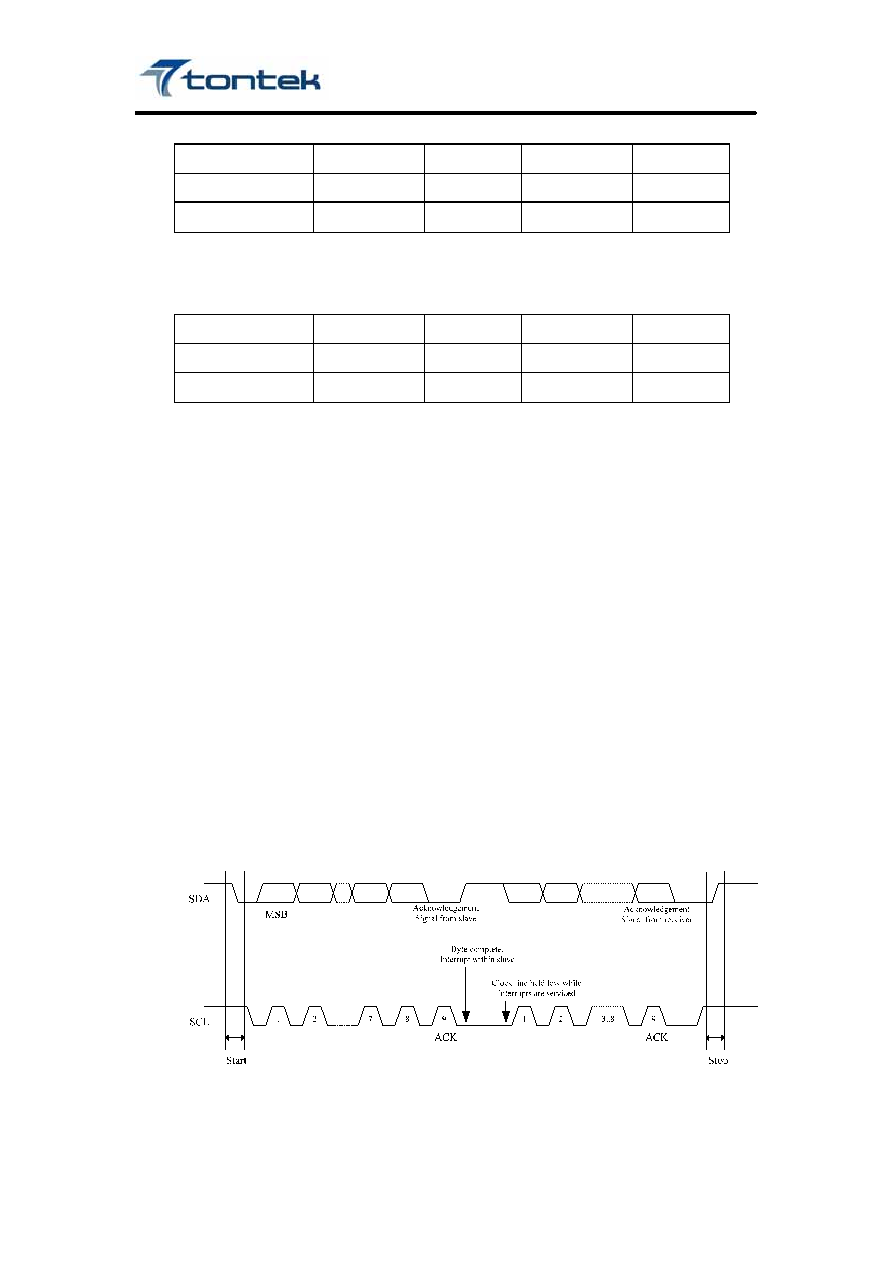

pull low will be release. The timing as follow:
