ADP1290ACBZ-R7 bảng dữ liệu(PDF) 5 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
ADP1290ACBZ-R7 bảng dữ liệu(HTML) 5 Page - Analog Devices |
|

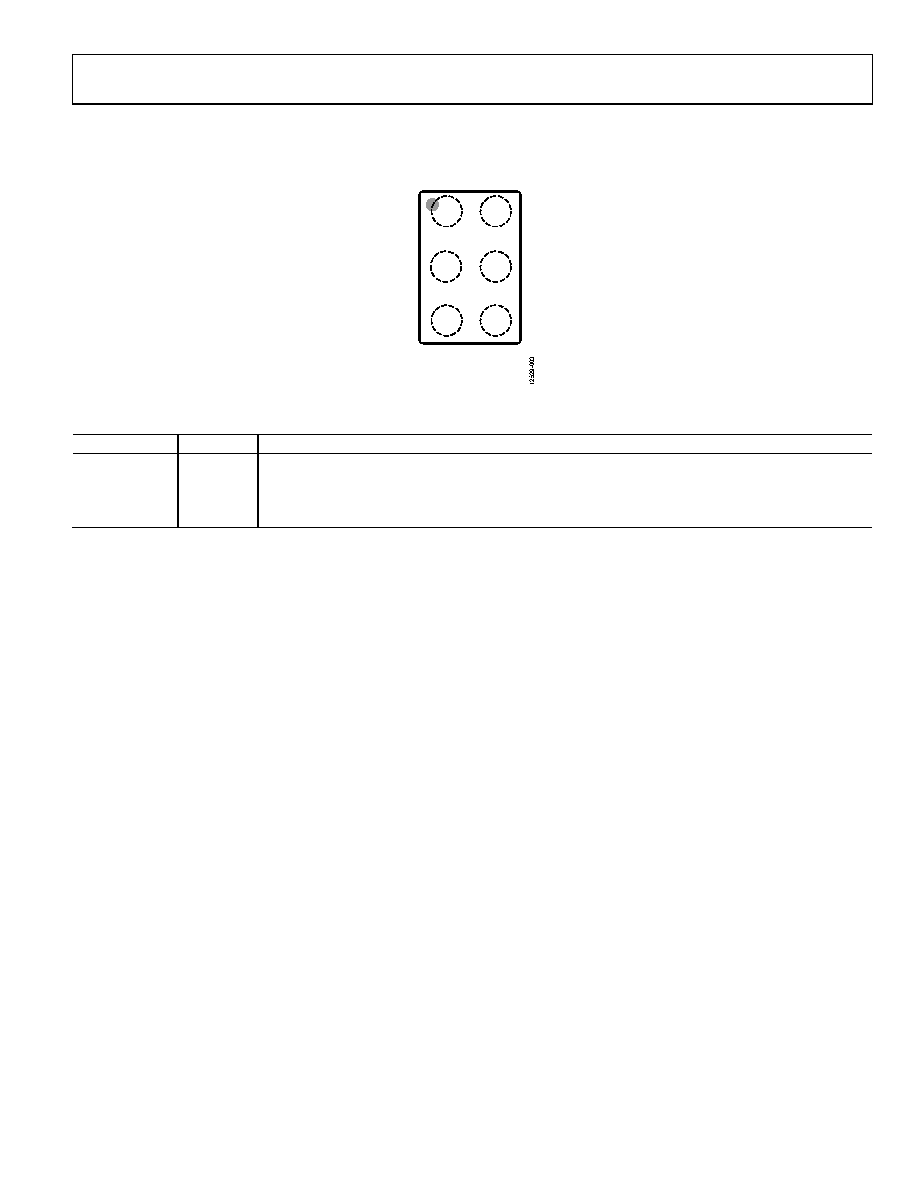

5 / 12 page ![]() Data Sheet ADP1290 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS VIN VOUT 1 2 VIN A B VOUT EN C GND TOP VIEW (Not to Scale) ADP1290 Figure 3. Pin Configuration Table 4. Pin Function Descriptions Pin No. Mnemonic Description A1, B1 VIN Input Voltage. A2, B2 VOUT Output Voltage. C1 EN Enable Input. Drive the EN pin high to turn on the switch. Drive the EN pin low to turn off the switch. C2 GND Ground. Rev. 0 | Page 5 of 12 |
|
|
