ADRF6807
Data Sheet
Rev. B | Page 30 of 36
ADRF6807 SOFTWARE
The ADRF6807 evaluation board can be controlled from PCs
using a USB adapter board, which is also available from Analog
Devices, Inc. The USB adapter evaluation documentation and
ordering information can be found on the EVAL-ADF4XXXZ-USB
product page. The basic user interfaces are shown in Figure 48 and
Figure 49.
The software allows the user to configure the ADRF6807 for
various modes of operation. The internal synthesizer is controlled
by clicking any of the numeric values listed in RF Section.
Attempting to program Ref Input Frequency, PFD Frequency,
VCO Frequency (2×LO)
, LO Frequency, or other values in RF
Section
launches the Synth Form window shown in Figure 49.
Using Synth Form, the user can specify values for Local Oscillator
Frequency (MHz)
and External Reference Frequency (MHz).
The user can also enable the LO output buffer and divider options
from this menu. After setting the desired values, it is important
to click Upload all registers for the new setting to take effect.

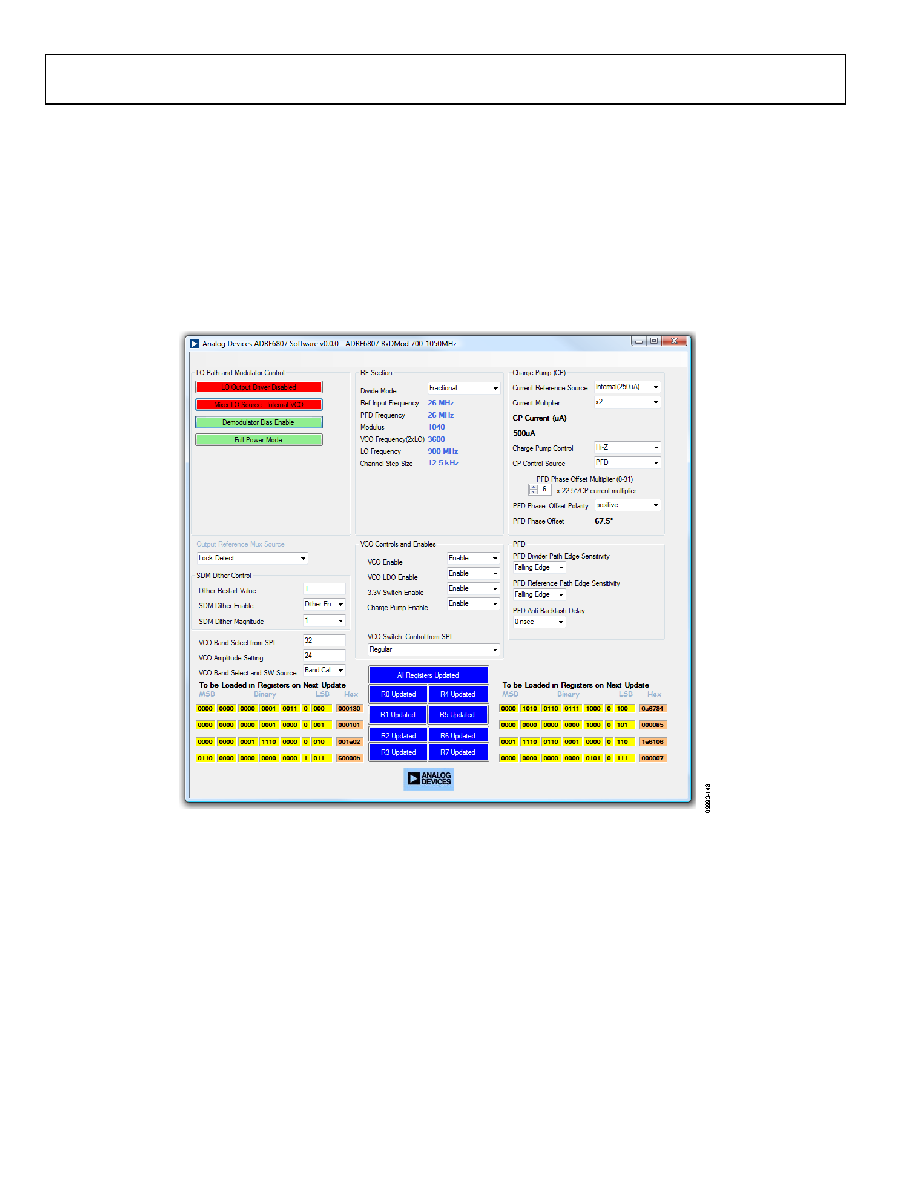

Figure 48. Evaluation Board Software Main Window
