Data Sheet
ADRF6807
Rev. B | Page 27 of 36
The package for the ADRF6807 features an exposed paddle on
the underside that should be well soldered to an exposed opening
in the solder mask on the evaluation board. Figure 45 illustrates
the dimensions used in the layout of the ADRF6807 footprint on
the ADRF6807 evaluation board (1 mil = 0.0254 mm).
Note the use of nine via holes on the exposed paddle. These
ground vias should be connected to all other ground layers on
the evaluation board to maximize heat dissipation from the device
package. Under these conditions, the thermal impedance of the
ADRF6807 was measured to be approximately 30°C/W in still air.
0.168
0.232
0.177
0.035
0.050
0.012
0.025
0.020

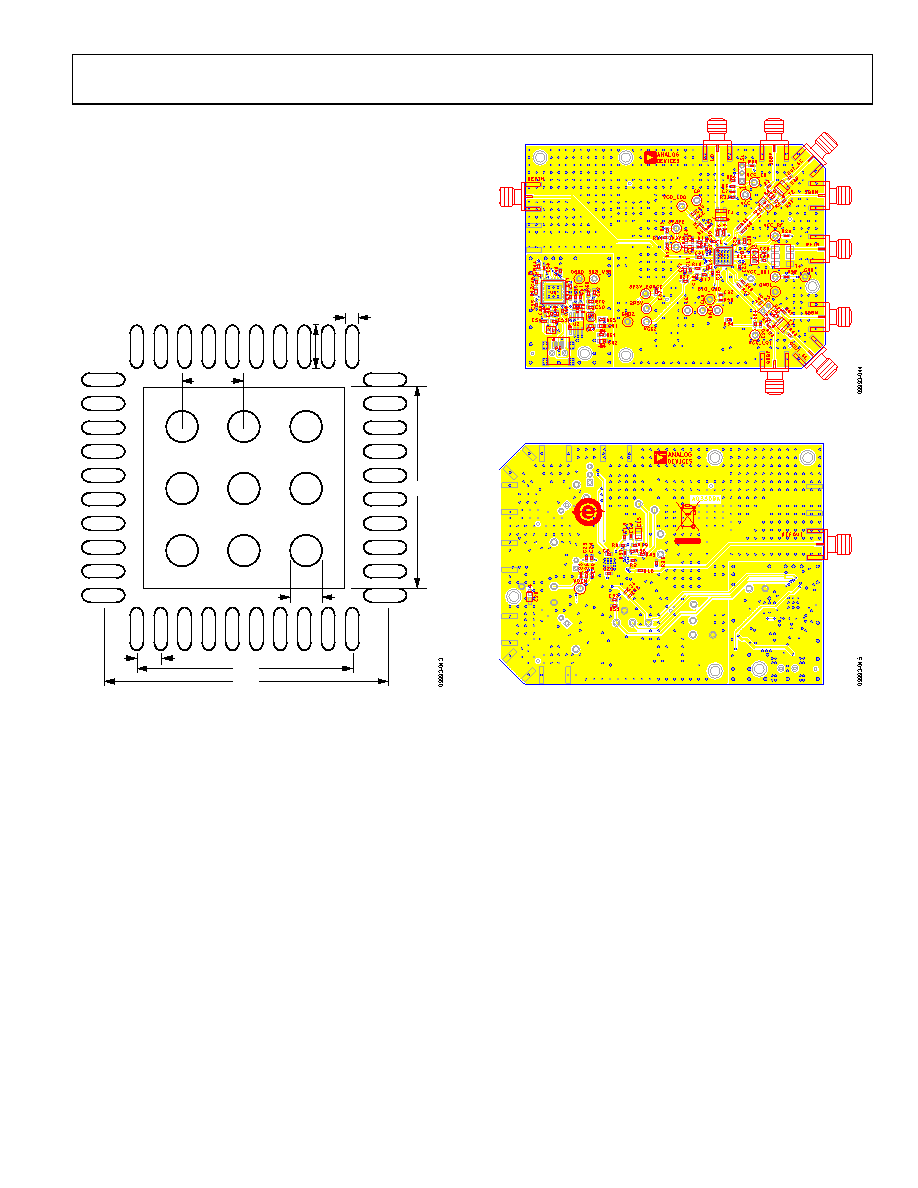

Figure 45. Evaluation Board Layout Dimensions for the ADRF6807 Package
Figure 46. ADRF6807 Evaluation Board Top Layer
Figure 47. ADRF6807 Evaluation Board Bottom Layer
