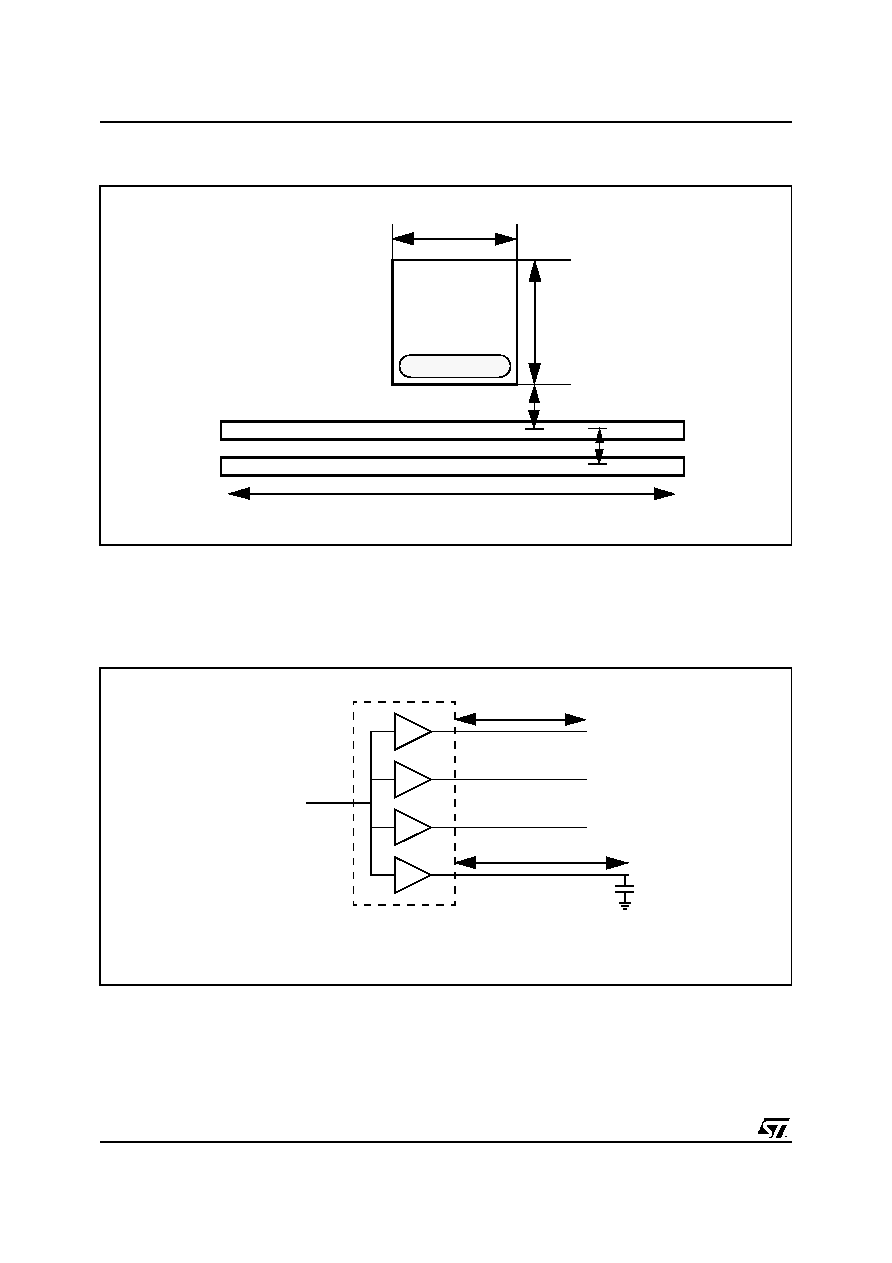

94 / 111 page ![]() DESIGN GUIDELINES 94/111 Issue 1.0 - July 24, 2002 memory clock input (MCLKI) and any other component using the memory clock are individually driven from a low skew clock driver with matched routing lengths. In other words, all clock line lengths that go from the buffer to the memory chips (MCLKx) and from the buffer to the STPC (MCLKI) must be identical. This is shown in Figure 6-23. Figure 6-22. DIMM placement DIMM2 DIMM1 STPC 35mm 35mm 15mm 10mm 116mm SDRAM I/F Figure 6-23. Clock Routing MCLKO DIMM CKn input STPC MCLKI DIMM CKn input DIMM CKn input Low skew clock driver: L L+75mm* 20pF * No additional 75mm when SDRAM directly soldered on board |
|
