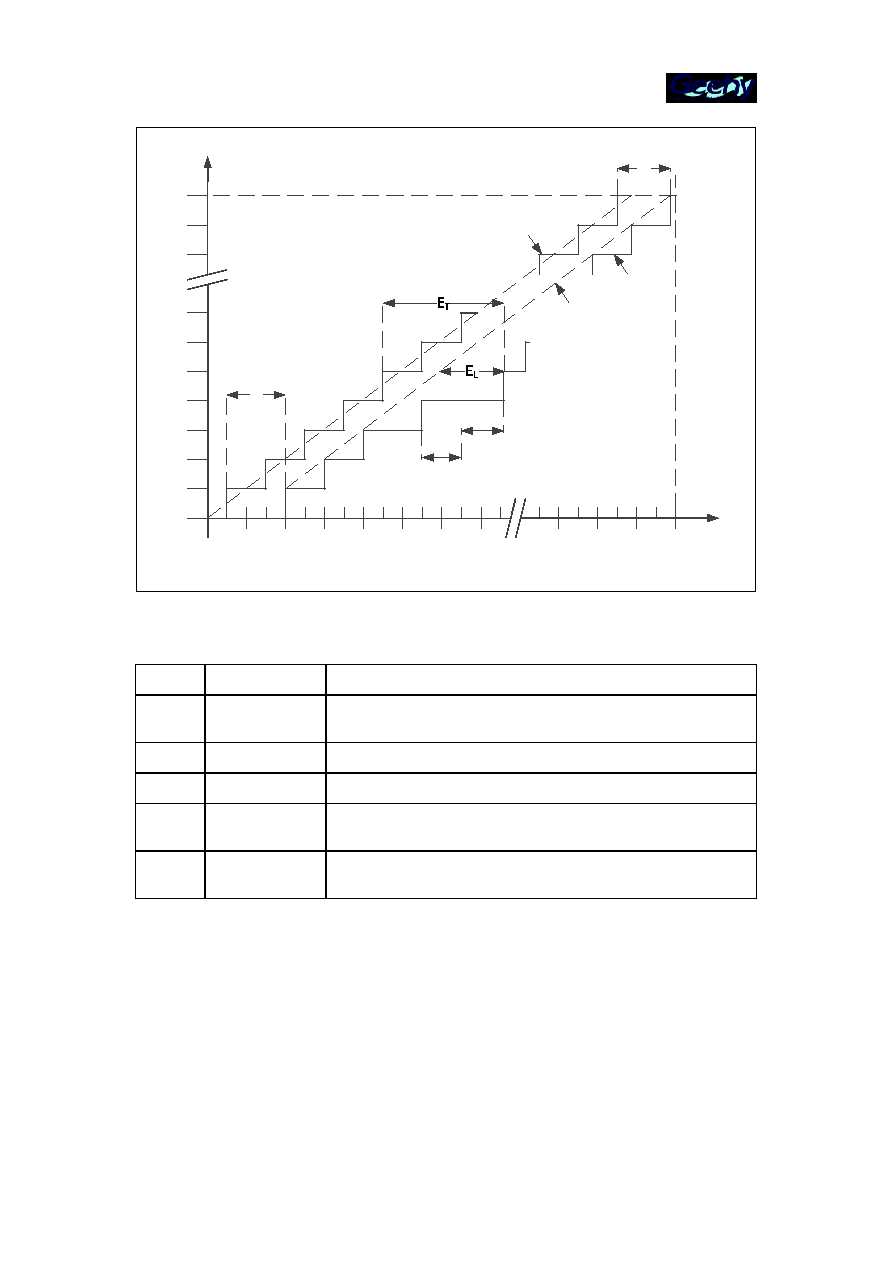

Figure 13 ADC Accuracy Characteristics
1021
1
2
3
4
5
6
7
1022 1023
1024
7
1
2
3
4
5
6
1021
1022
1023
EO
EG
(1)
(3)
(2)
ED
1 LSB IDEAL
VDD
0
VSS
Note: (1)
The ideal transfer curve,(2)End point correlation line,
(3)
Example of an actual transfer curve
1LSBIDEAL Formula : 1LSBIDEAL=（VDD-VSS）/1024
Table 44 Explanation of the Parameter Meaning of ADC Accuracy Characteristics
Symbol
Parameter
Description
ET
Total Unadjusted
Error
maximum deviation between the actual and the ideal transfer curves
EO
Offset Error
deviation between the first actual transition and the first ideal one
EG
Gain Error
deviation between the last ideal transition and the last actual one
ED
Differential
Linearity Error
maximum deviation between actual steps and the ideal one
EL
Integral Linearity
Error
maximum deviation between any actual transition and the end point
correlation line
