28 / 44 page

GL646USB

Command : motor moving.

Start motor farward/backward moving.

7.12. Reg : 10,11H

(Write)

Default : 00H,00H

EXPR[15:0]: Red-LED array of CIS or Red channel TG of CCD exposure time setting.

7.13. Reg : 12H,13H

(Write)

Default : 00H,00H

EXPG[15:0]: Green-LED array of CIS or Green channel TG of CCD exposure time setting.

7.14. Reg : 14H,15H

(Write)

Default : 00H,00H

EXPB[15:0]: Blue-LED array of CIS or Blue channel TG of CCD exposure time.

7.15. Reg : 16H

(Write)

Defalut : 32H

B7:CTRLHI

: set: CCD CP & RS are high under TG high position.

: reset: CCD CP & RS are low under TG high position.

B6:SELINV

: set: inverse CCD RGBSEL selection pins.

: reset: don’t inverse.

B5:TGINV

: set: inverse CCD TG.

: reset: don’t inverse.

B4:CK1INV

: set: inverse CCD Clock 1.

: reset: don’t inverse.

B3:CK2INV

: set: inverse CCD Clock 2.

: reset: don’t inverse.

B2:CTRLINV : set: inverse CCD CP & RS.

: reset: don’t inverse.

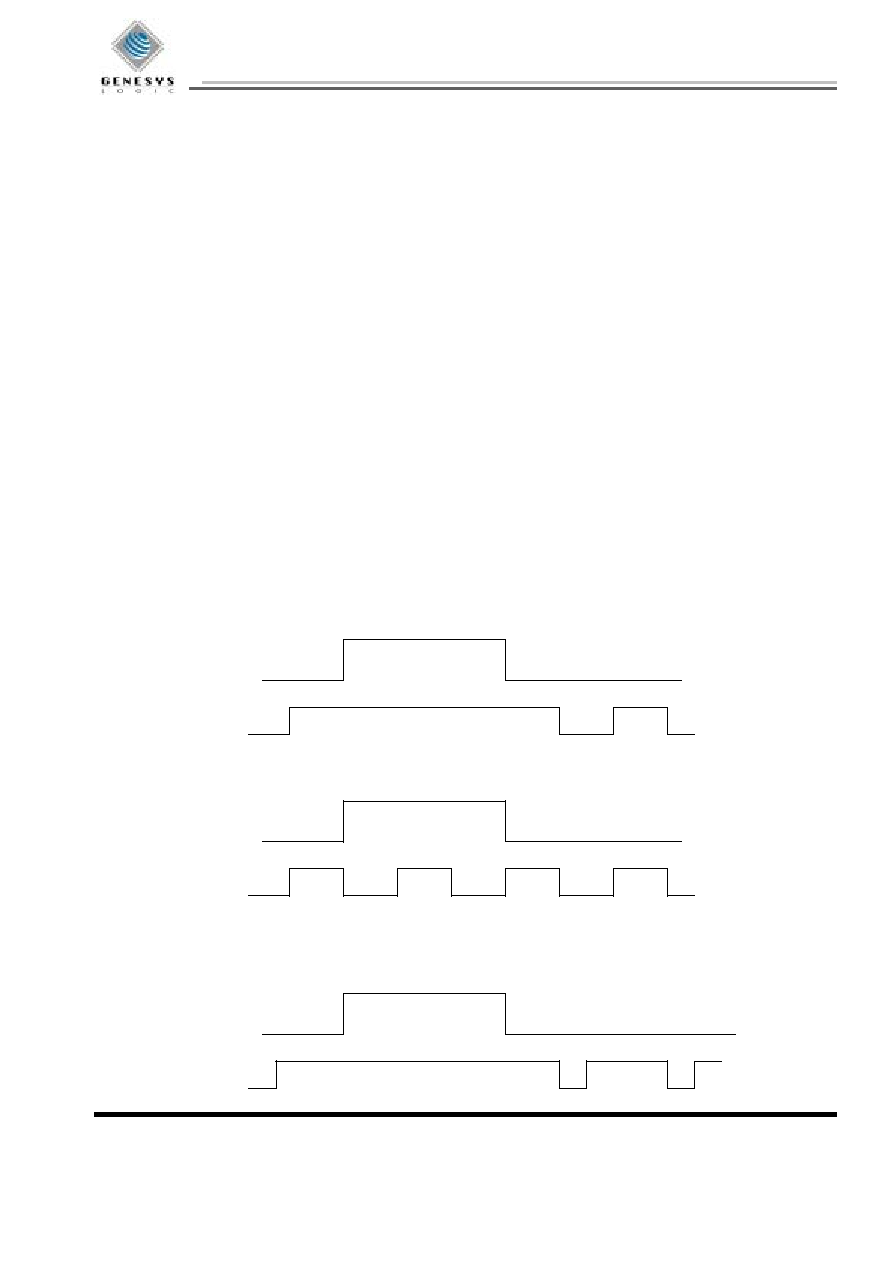

B1:CKDIS

: set: disable CCD TG position Clock 1/2 signals.

Rev. 1.4

-27-

CCD TG

CCD Clock

: reset: enable CCD TG position Clock 1/2 signals.

CCD TG

CCD Clock

B0:CTRLDIS : set: disable CCD TG position CP & RS signals.

CCD TG

CCD CP/RS
