PBLS2003S

20 V PNP BISS loadswitch

9.

Package outline

10. Packing information

[1]

For further information and the availability of packing methods, see Section 14.

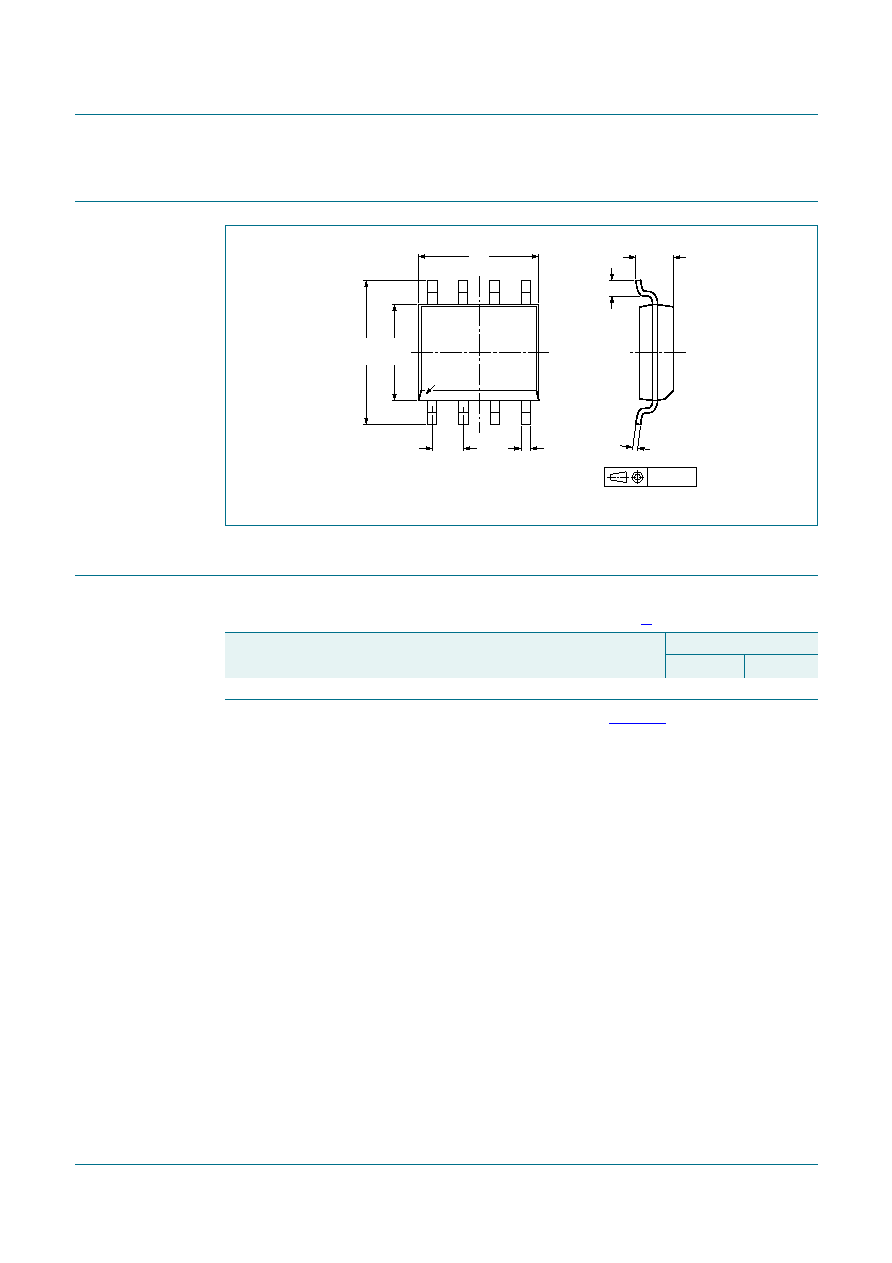

Fig 19. Package outline SOT96-1 (SO8)

03-02-18

Dimensions in mm

1.0

0.4

1.75

pin 1 index

0.49

0.36

0.25

0.19

5.0

4.8

4.0

3.8

6.2

5.8

1.27

Table 8.

Packing methods

The indicated -xxx are the last three digits of the 12NC ordering code.[1]

Type number

Package

Description

Packing quantity

1000

2500

PBLS2003S

SOT96-1

8 mm pitch, 12 mm tape and reel

-115

-118
