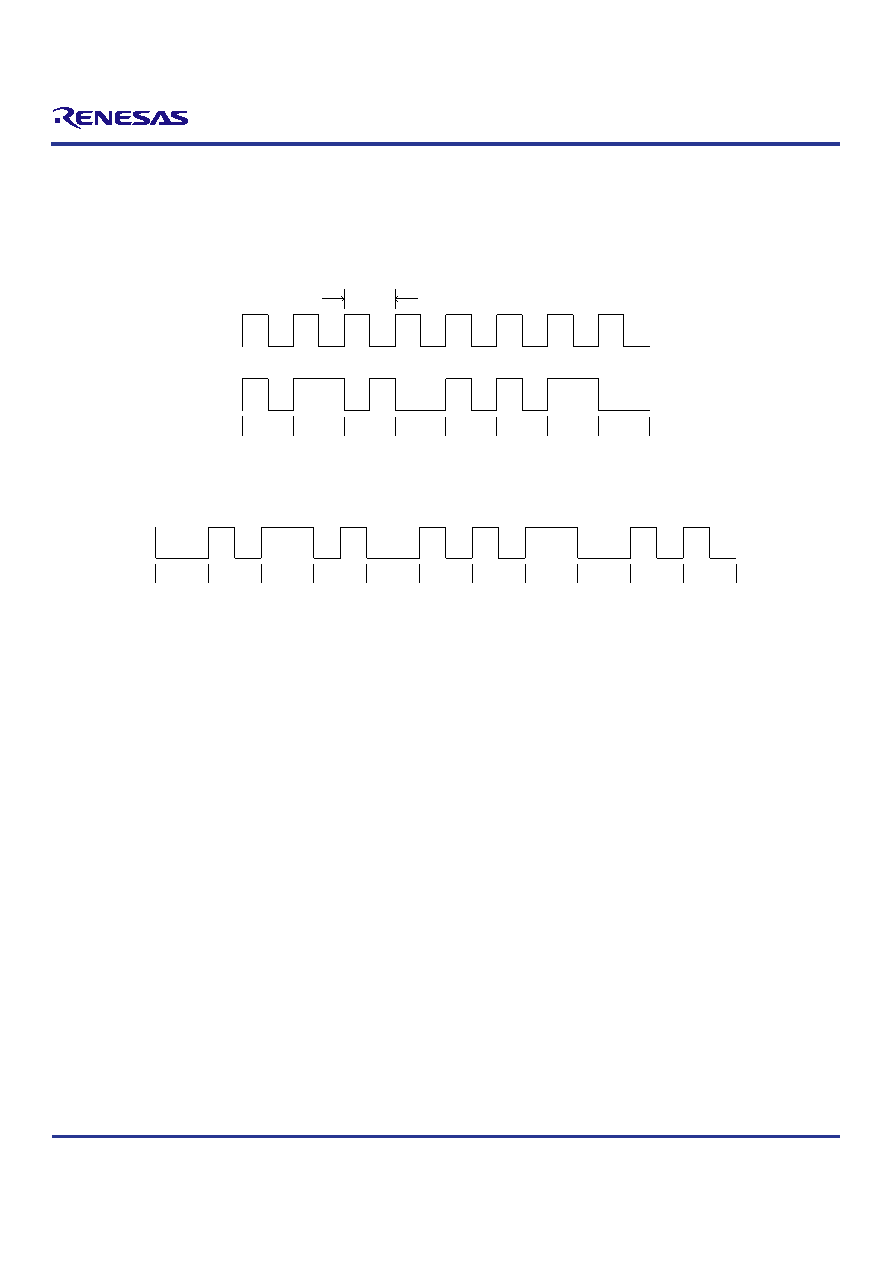

24 / 62 page ![]() P9415-R Datasheet © 2021 Renesas Electronics Corporation 24 May 4, 2021 8.2.6 Bit Encoding Scheme As required by the WPC, the P9415-R uses a differential bi-phase encoding scheme to modulate data bits onto the power signal. A clock frequency of 2kHz is used for this purpose. A logic ONE bit is encoded using two narrow transitions, whereas a logic ZERO bit is encoded using two wider transitions as shown below: Figure 18. Bit Encoding Scheme tCLK ONE ZERO ONE ZERO ONE ONE ZERO ZERO Each byte in the communication packet comprises 11 bits in an asynchronous serial format, as shown below: Figure 19. Byte Encoding Scheme Start Stop Parity b0 1 2 3 4 5 6 7 b b b b b b b Each byte has a start bit, 8 data bits, a parity bit, and a single stop bit. 8.2.7 System Feedback Control The P9415-R is fully compatible with WPC (latest specification) and has all necessary circuitry to communicate with the base station or with a receiver via WPC communication packets. The overall WPC system behavior between the transmitter and the receiver follows the state machine in Figure 20. |
|
