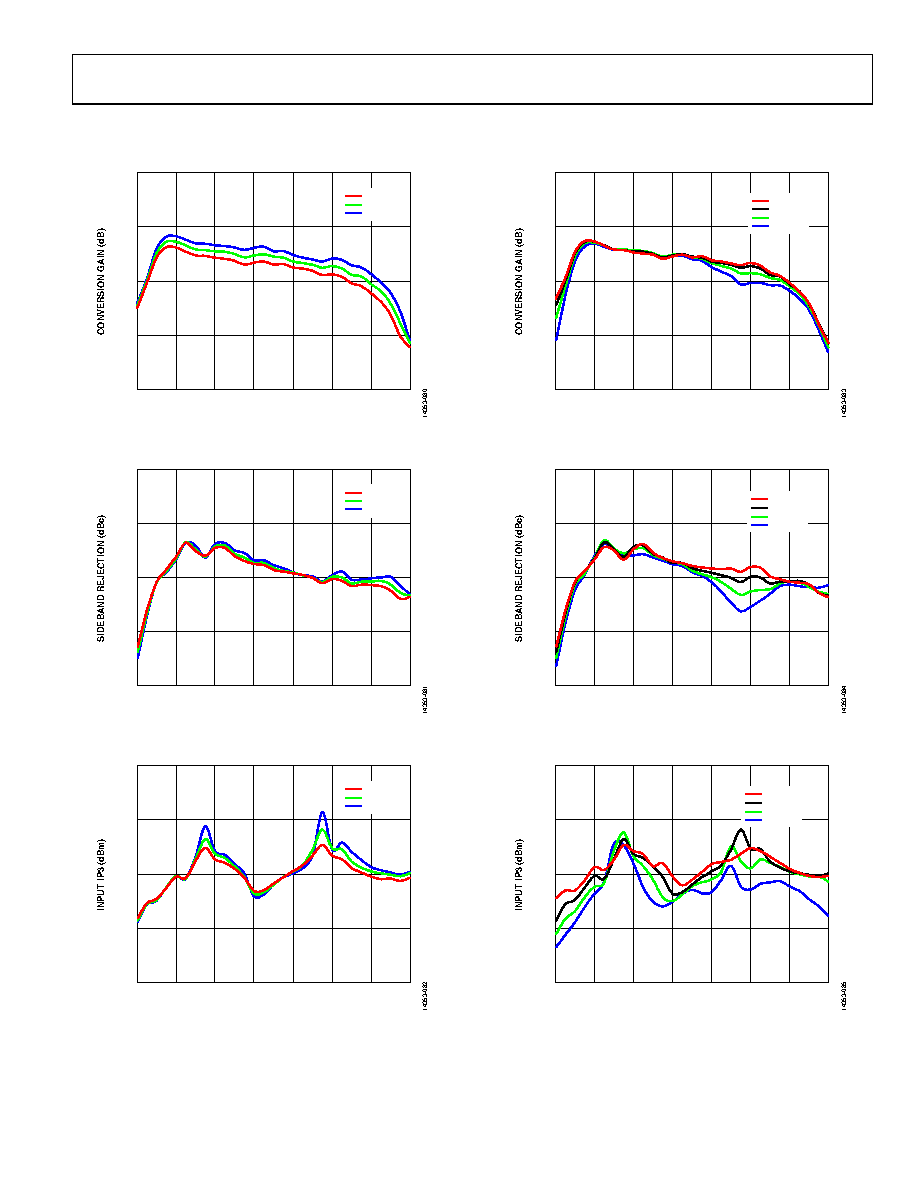

Upconverter Performance at IF = 100 MHz, Upper Sideband

Data taken at LO drive = 18 dBm and TA = 25°C, unless otherwise noted.

–5

–10

–15

–20

RF FREQUENCY (GHz)

+85°C

+25°C

–40°C

Figure 78. Conversion Gain vs. RF Frequency at Various Temperatures

RF FREQUENCY (GHz)

+85°C

+25°C

–40°C

Figure 79. Sideband Rejection vs. RF Frequency at Various Temperatures

RF FREQUENCY (GHz)

+85°C

+25°C

–40°C

Figure 80. Input IP3 vs. RF Frequency at Various Temperatures

–5

–10

–15

–20

RF FREQUENCY (GHz)

20dBm

18dBm

16dBm

14dBm

Figure 81. Conversion Gain vs. RF Frequency at Various LO Drives

RF FREQUENCY (GHz)

20dBm

18dBm

16dBm

14dBm

Figure 82. Sideband Rejection vs. RF Frequency at Various LO Drives

RF FREQUENCY (GHz)

20dBm

18dBm

16dBm

14dBm

Figure 83. Input IP3 vs. RF Frequency at Various LO Drives
