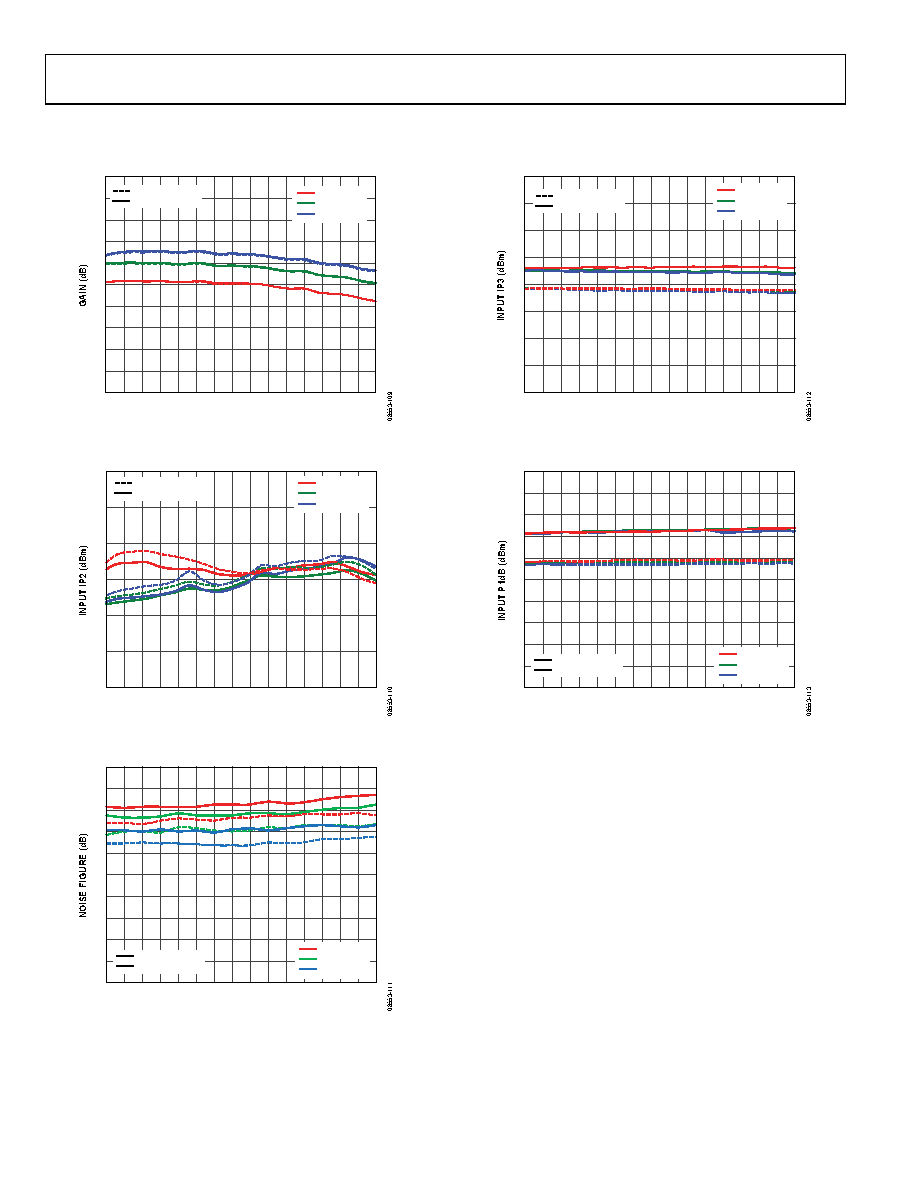

IF FREQUENCY SWEEP

CDAC = 0xC, internally generated swept low-side LO, fRF = 2490 MHz, RFIN = −5 dBm, unless otherwise noted.

–1

–2

–3

–4

–5

25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400

IF FREQUENCY (MHz)

IP3SET = OPEN

IP3SET = 3.3V

TA = +85°C

TA = +25°C

TA = –40°C

Figure 9. Gain vs. IF Frequency

25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400

IF FREQUENCY (MHz)

IP3SET = OPEN

IP3SET = 3.3V

TA = +85°C

TA = +25°C

TA = –40°C

Figure 10. Input IP2 vs. IF Frequency, RFIN = −5 dBm

25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400

IF FREQUENCY (MHz)

IP3SET = OPEN

IP3SET = 3.3V

TA = +85°C

TA = +25°C

TA = –40°C

Figure 11. Noise Figure vs. IF Frequency

25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400

IF FREQUENCY (MHz)

IP3SET = OPEN

IP3SET = 3.3V

TA = +85°C

TA = +25°C

TA = –40°C

Figure 12. Input IP3 vs. IF Frequency, RFIN = −5 dBm

25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400

IF FREQUENCY (MHz)

IP3SET = OPEN

IP3SET = 3.3V

TA = +85°C

TA = +25°C

TA = –40°C

Figure 13. Input P1dB vs. IF Frequency
