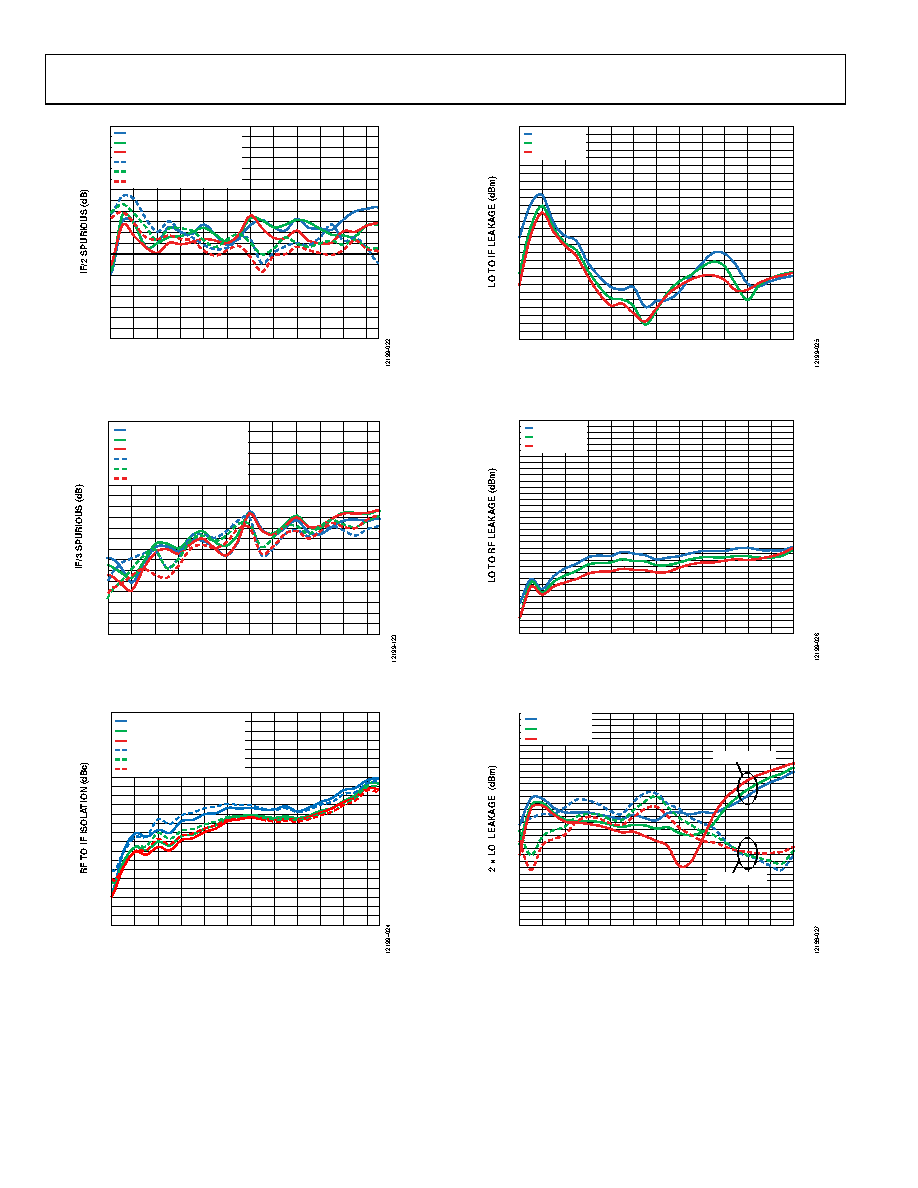

16 / 57 page  ADRF6612 Data Sheet Rev. A | Page 16 of 57 –90 –88 –86 –84 –82 –80 –78 –76 –74 –72 –70 –68 –66 –64 –62 –60 –58 –56 –54 –52 –50 700 900 1100 1300 1500 1700 1900 2100 2300 2500 2700 2900 RF FREQUENCY (MHz) TA = –40°C, HIGH-SIDE LO TA = +25°C, HIGH-SIDE LO TA = +85°C, HIGH-SIDE LO TA = –40°C, LOW-SIDE LO TA = +25°C, LOW-SIDE LO TA = +85°C, LOW-SIDE LO Figure 22. IF/2 Spurious vs. RF Frequency over Three Temperatures –90 –88 –86 –84 –82 –80 –78 –76 –74 –72 –70 –68 –66 –64 –62 –60 –58 –56 –54 –52 –50 700 900 1100 1300 1500 1700 1900 2100 2300 2500 2700 2900 RF FREQUENCY (MHz) TA = –40°C, HIGH-SIDE LO TA = +25°C, HIGH-SIDE LO TA = +85°C, HIGH-SIDE LO TA = –40°C, LOW-SIDE LO TA = +25°C, LOW-SIDE LO TA = +85°C, LOW-SIDE LO Figure 23. IF/3 Spurious vs. RF Frequency over Three Temperatures 700 900 1100 1300 1500 1700 1900 2100 2300 2500 2700 2900 RF FREQUENCY (MHz) –46 –44 –42 –40 –38 –36 –34 –32 –30 –28 –26 –24 –22 –20 –18 –16 –14 –12 –10 –8 –6 –4 –2 0 TA = –40°C, HIGH-SIDE LO TA = +25°C, HIGH-SIDE LO TA = +85°C, HIGH-SIDE LO TA = –40°C, LOW-SIDE LO TA = +25°C, LOW-SIDE LO TA = +85°C, LOW-SIDE LO Figure 24. RF to IF Isolation vs. RF Frequency over Three Temperatures –52 –48 –44 –40 –36 –32 –28 –24 –20 –16 –12 –8 –4 0 300 500 700 900 1100 1300 1500 1700 1900 2100 2300 2500 2700 LO FREQUENCY (MHz) TA = –40°C TA = +25°C TA = +85°C Figure 25. LO to IF Leakage vs. LO Frequency over Three Temperatures –68 –64 –60 –56 –52 –48 –44 –40 –36 –32 –28 –24 –20 –16 –12 –8 –4 0 300 500 700 900 1100 1300 1500 1700 1900 2100 2300 2500 2700 LO FREQUENCY (MHz) TA = –40°C TA = +25°C TA = +85°C Figure 26. LO to RF Leakage vs. LO Frequency over Three Temperatures –64 –60 –56 –52 –48 –44 –40 –36 –32 –28 –24 –20 –16 –12 –8 –4 0 300 500 700 900 1100 1300 1500 1700 1900 2100 2300 2500 2700 LO FREQUENCY (MHz) 2 × LO TO IF TA = –40°C TA = +25°C TA = +85°C 2 × LO TO RF Figure 27. 2 × LO Leakage vs. LO Frequency (2 × LO to RF and 2 × LO to IF) |
|
