Data Sheet

ADRF6612

Rev. A | Page 57 of 57

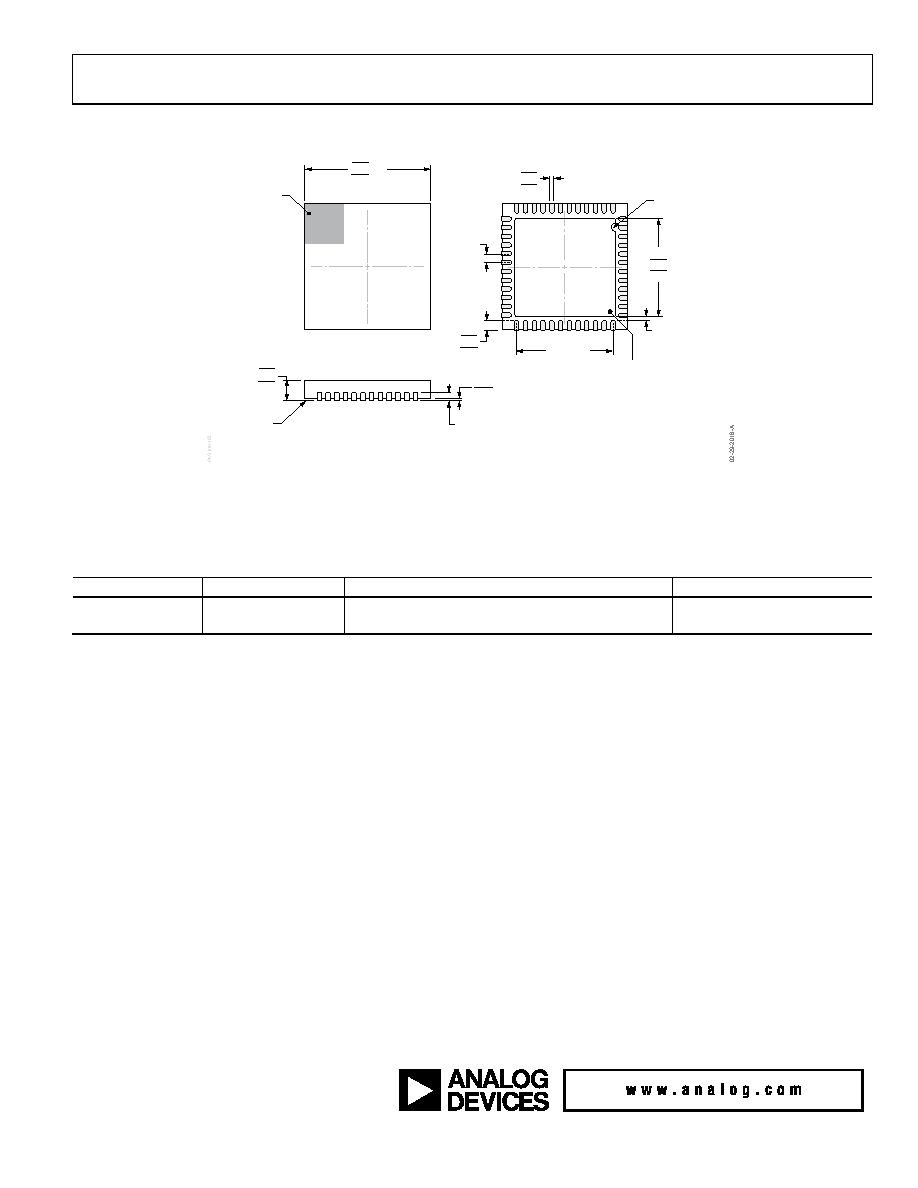

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MO-220-WKKD-4.

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

0.50

BSC

BOTTOM VIEW

TOP VIEW

PIN 1

INDICATOR

PIN 1

INDICATOR

5.70

5.60 SQ

5.50

0.50

0.40

0.30

SEATING

PLANE

0.80

0.75

0.70

0.05 MAX

0.02 NOM

0.203 REF

COPLANARITY

0.08

0.30

0.25

0.18

7.10

7.00 SQ

6.90

0.20 MIN

5.50 REF

END VIEW

EXPOSED

PAD

Figure 107. 48-Lead Lead Frame Chip Scale Package [LFCSP]

7 mm × 7 mm Body and 0.75 mm Package Height

(CP-48-13)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

ADRF6612ACPZ-R7

−40°C to +85°C

48-Lead Lead Frame Chip Scale Package [LFCSP]

CP-48-13

ADRF6612-EVALZ

Evaluation Board

Z = RoHS Compliant Part.

registered trademarks are the property of their respective owners.

D12199-0-5/16(A)
