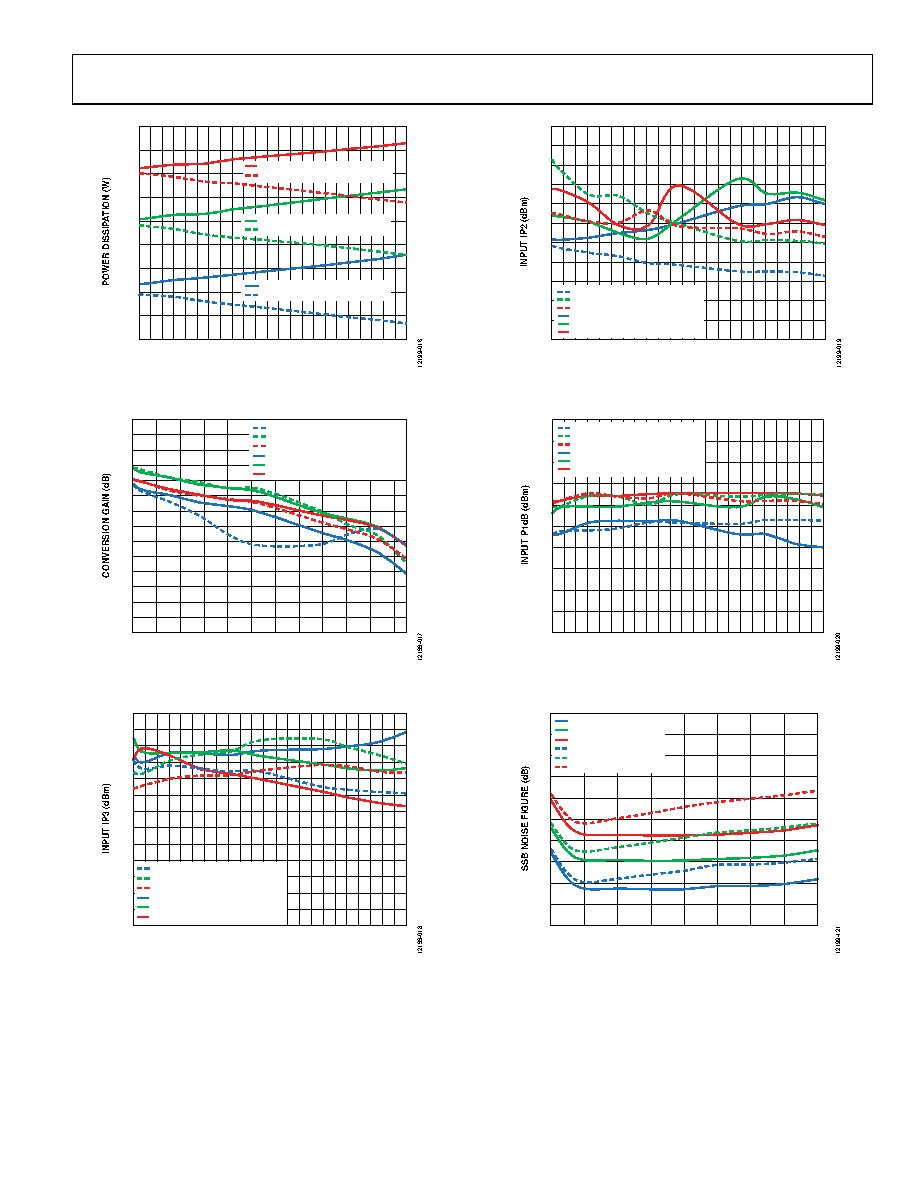

Data Sheet
ADRF6612
Rev. A | Page 15 of 57
2.10
2.15
2.20
2.25
2.30
2.35
2.40
2.45
2.50
2.55
40
80
120
160
200
240
280
320
360
400
440
480
IF FREQUENCY (MHz)
RF = 2500MHz, LOW-SIDE LO
RF = 2500MHz, HIGH-SIDE LO
RF = 1900MHz, LOW-SIDE LO
RF = 1900MHz, HIGH-SIDE LO
RF = 900MHz, LOW-SIDE LO
RF = 900MHz, HIGH-SIDE LO
Figure 16. Power Dissipation vs. IF Frequency for Three RF Frequencies
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
40
80
120
160
200
240
280
320
360
400
440
480
IF FREQUENCY (MHz)
RF = 900MHz, LOW-SIDE LO
RF = 1900MHz, LOW-SIDE LO
RF = 2500MHz, LOW-SIDE LO
RF = 900MHz, HIGH-SIDE LO
RF = 1900MHz, HIGH-SIDE LO
RF = 2500MHz, HIGH-SIDE LO
Figure 17. Power Conversion Gain vs. IF Frequency for Three RF Frequencies
10
12
14
16
18
20
22
24
26
28
30
32
34
36
40
80
120
160
200
240
280
320
360
400
440
480
IF FREQUENCY (MHz)
RF = 900MHz, LOW-SIDE LO
RF = 1900MHz, LOW-SIDE LO
RF = 2500MHz, LOW-SIDE LO
RF = 900MHz, HIGH-SIDE LO
RF = 1900MHz, HIGH-SIDE LO
RF = 2500MHz, HIGH-SIDE LO
Figure 18. Input IP3 vs. IF Frequency for Three RF Frequencies
30
35
40
45
50
55
60
65
70
75
80
85
40
80
120
160
200
240
280
320
360
400
440
480
IF FREQUENCY (MHz)
RF = 900MHz, LOW-SIDE LO
RF = 1900MHz, LOW-SIDE LO
RF = 2500MHz, LOW-SIDE LO
RF = 900MHz, HIGH-SIDE LO
RF = 1900MHz, HIGH-SIDE LO
RF = 2500MHz, HIGH-SIDE LO
Figure 19. Input IP2 vs. IF Frequency for Three RF Frequencies
5
6
7
8
9
10
11
12
13
14
15
40
80
120
160
200
240
280
320
360
400
440
480
IF FREQUENCY (MHz)
RF = 900MHz, LOW-SIDE LO
RF = 1900MHz, LOW-SIDE LO
RF = 2500MHz, LOW-SIDE LO
RF = 900MHz, HIGH-SIDE LO
RF = 1900MHz, HIGH-SIDE LO
RF = 2500MHz, HIGH-SIDE LO
Figure 20. Input P1dB vs. IF Frequency for Three RF Frequencies
8
9
10
11
12
13
14
15
16
17
18
50
100
150
200
250
300
350
400
450
IF FREQUENCY (MHz)
–40°C, LOW SIDE LO
–40°C, HIGH-SIDE LO
+25°C, LOW SIDE LO
+25°C, HIGH-SIDE LO
+85°C, LOW SIDE LO
+85°C, HIGH-SIDE LO
Figure 21. SSB Noise Figure vs. IF Frequency for Three RF Frequencies
