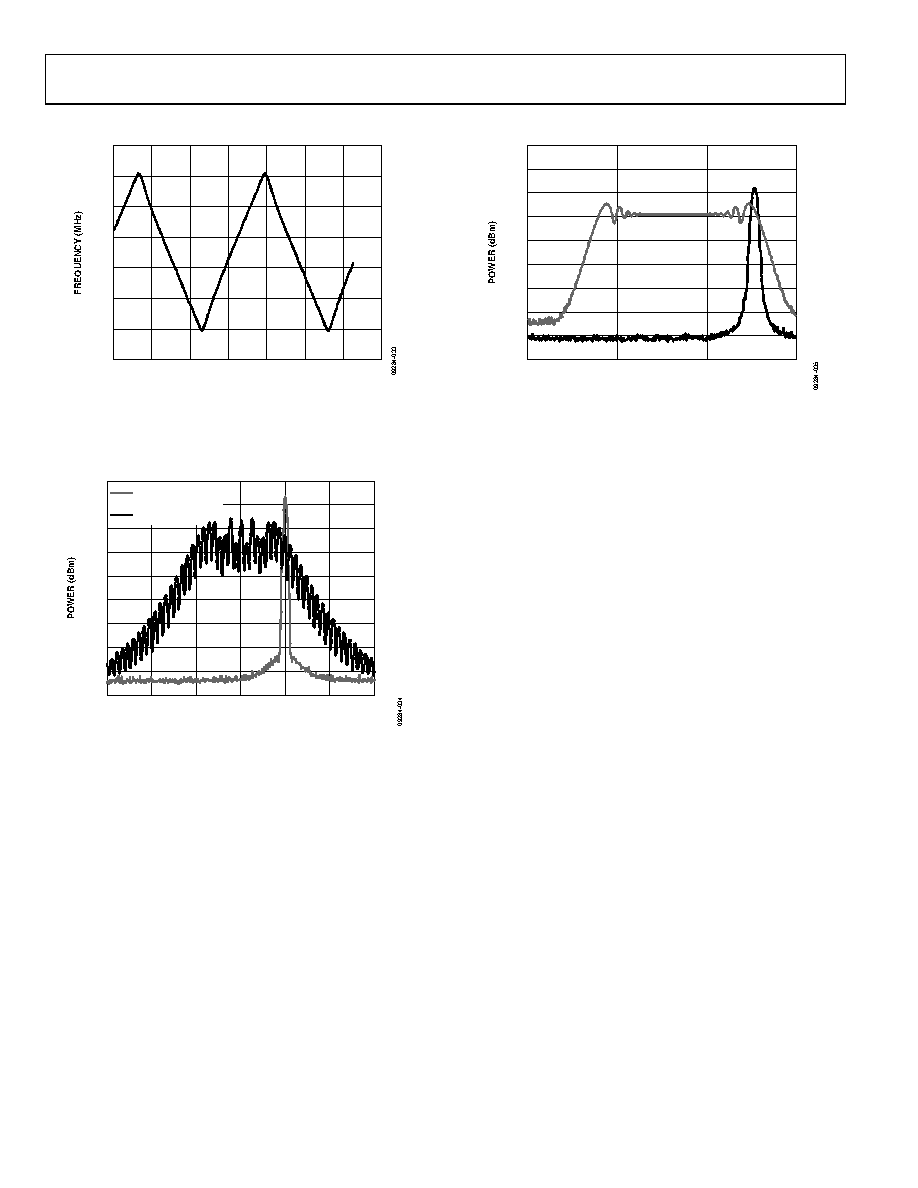

TYPICAL SPREAD SPECTRUM PERFORMANCE CHARACTERISTICS

100.1

100.0

99.4

99.5

99.6

99.7

99.8

99.9

TIME (10µs/DIV)

Figure 29. Typical Spread Spectrum Frequency Modulation Profile OUT2,

Nb = 96, FRAC = 0, MOD = 1000, CkDiv = 7, NumSteps = 59, FracStep = −8,

fOUT = 100 MHz with −0.5% Downspread at 30.2 kHz, MAX_BW set to 0

–10

–20

–80

–70

–60

–50

–40

–30

99.00

100.50

100.25

100.00

99.75

99.50

99.25

FREQUENCY (MHz)

UNMODULATED

CLOCK SPECTRUM

MODULATED

CLOCK

Figure 30. Typical Nonspread and Spread Spectrum Power Spectra, OUT2,

Nb = 96, FRAC = 0, MOD = 1000, CkDiv = 7, NumSteps = 59, FracStep = −8,

fOUT = 100 MHz with −0.5% Downspread at 30.2 kHz, MAX_BW set to 0,

First Harmonic Shown, Spectrum Analyzer Resolution Bandwidth =10 kHz,

Maximum Hold On

–10

–20

–90

–80

–70

–60

–50

–40

–30

695

701

699

697

FREQUENCY (MHz)

Figure 31. Typical Nonspread and Spread Spectrum Power Spectra, OUT2,

Nb = 96, FRAC = 0, MOD = 1000, CkDiv = 7, NumSteps = 59, FracStep = −8,

fOUT = 100 MHz with −0.5% Downspread at 30.2 kHz, MAX_BW set to 0,

Seventh Harmonic Shown, Spectrum Analyzer Resolution Bandwidth =

120 kHz, Maximum Hold On
