HMC974LC3C

Data Sheet

Rev. E | Page 6 of 12

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

1

RT

2

WIN

3

WIT

4

RB

12 ORB

11 WOUTB

10 URB

HMC974LC3C

TOP VIEW

(Not to Scale)

PACKAGE

BASE

NOTES

1. EXPOSED PAD. THE EXPOSED PAD MUST

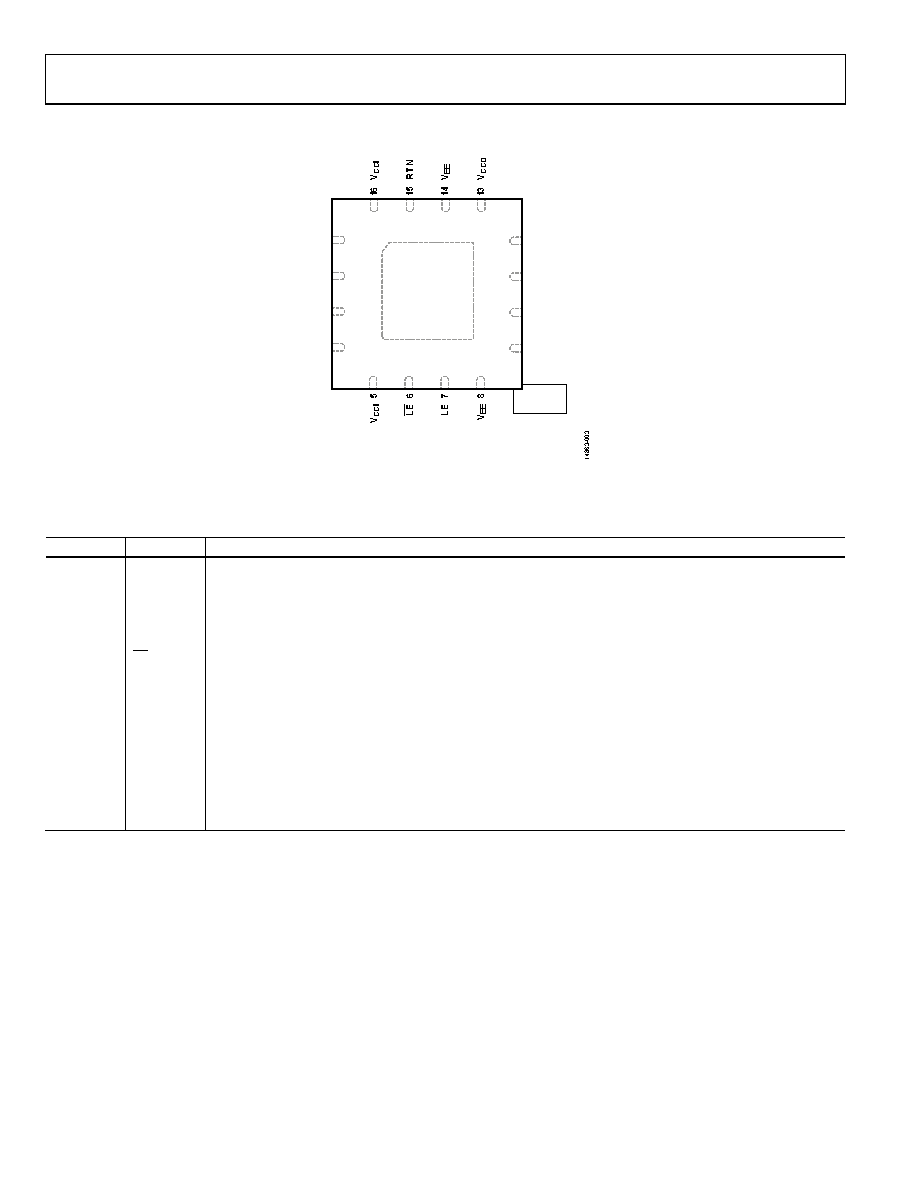

Figure 3. Pin Configuration

Table 3. Pin Function Descriptions

Pin No.

Mnemonic

Description

1

RT

Termination Resistor for Reference Top.

2

WIN

Analog Input Window.

3

WIT

Common Mode Window for Termination Resistors.

4

RB

Termination Resistor Return for Reference Bottom.

5, 16

Positive Supply Voltage Input Stage.

6

LE

Inverting Latch Enable Input.

7

LE

Noninverting Latch Enable Input.

8, 14

Negative Power Supply

9, 13

Positive Supply Voltage Output Stage.

10

URB

Underange Output. URB is asserted low when the analog input voltage is below the RB pin voltage.

11

WOUTB

Window Output. WOUTB is asserted low when the analog input voltage is between the RB pin voltage and the

RT pin voltage.

12

ORB

Overrange output. ORB is asserted low when the analog input voltage range is above the RT pin voltage.

15

RTN

ESD Protection Return.

EPAD
