QPD1025L

1500 W, 65 V, 1.0

– 1.1 GHz, GaN RF Input-Matched Transistor

Datasheet Rev. B

│ Subject to change without notice

- 1 of 18 -

www.qorvo.com

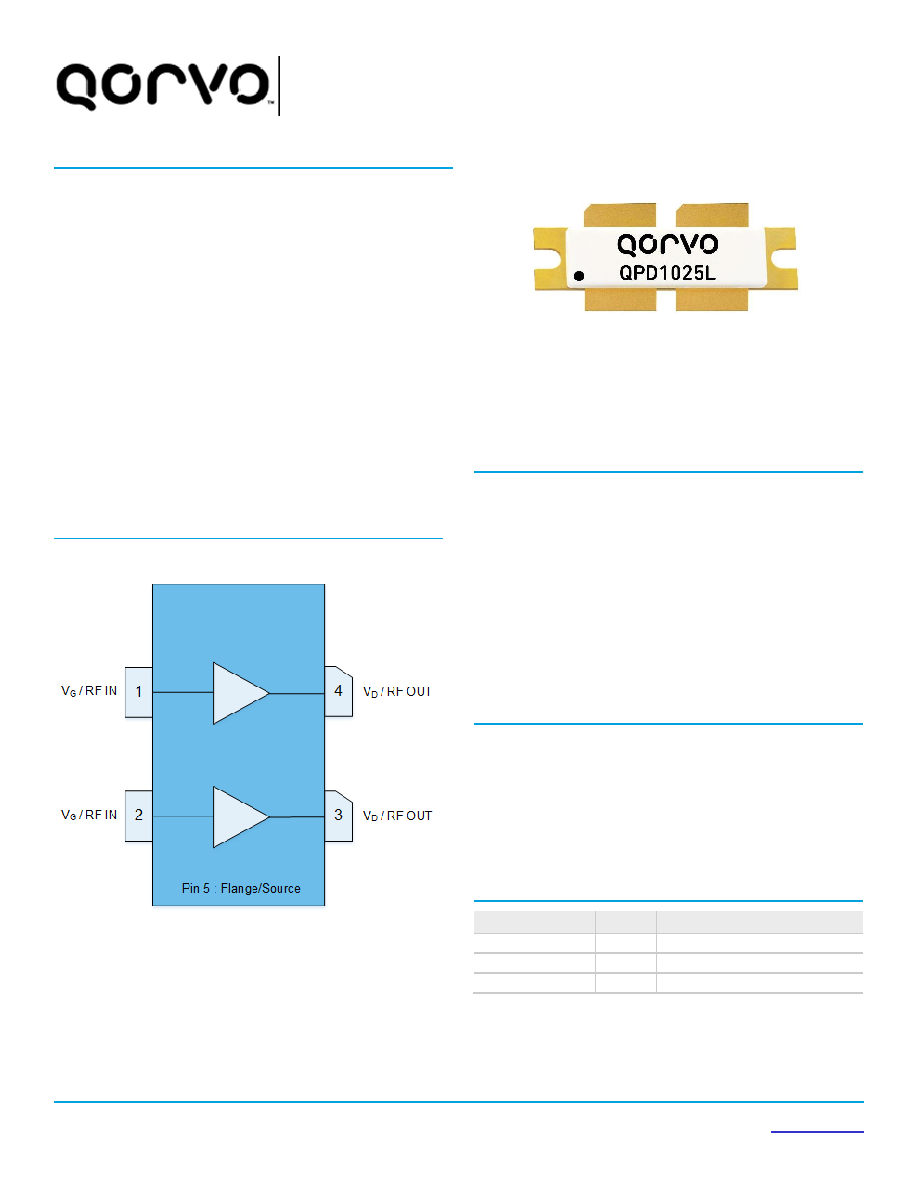

4-lead NI-1230 Package (Eared)

Product Overview

The Qorvo QPD1025L is a 1500 W (P3dB) discrete GaN on

SiC HEMT which operates from 1.0 to 1.1 GHz. Input pre-

match within the package results in ease of external board

match and saves board space. The device is in an industry

standard air cavity package and is ideally suited for IFF,

avionics and test instrumentation. The device can support

both CW and pulsed operations.

Lead-free and ROHS compliant

Evaluation boards are available upon request.

Functional Block Diagram

Key Features

• Frequency: 1.0 to 1.1 GHz

• Output Power (P3dB)1: 1660 W

• Linear Gain1: 22.9 dB

• Typical PAE3dB1: 78.5%

• Operating Voltage: 65 V

• CW and Pulse capable

Note 1: @ 1.0 GHz Load Pull

Applications

• IFF Transponders

• Avionics

Ordering info

Part No.

ECCN Description

QPD1025L

EAR99

1.0

– 1.1 GHz Transistor

QPD1025LS2

EAR99

2 Piece Sample Bag

QPD1025LEVB1

EAR99

1.0

– 1.1 GHz Evaluation Board
