Copyright © Future Technology Devices International Limited
25
FT260 HID-CLASS USB TO UART/I2C BRIDGE IC
Version 1.1
Document No.: FT_001272 Clearance No.: FTDI#484

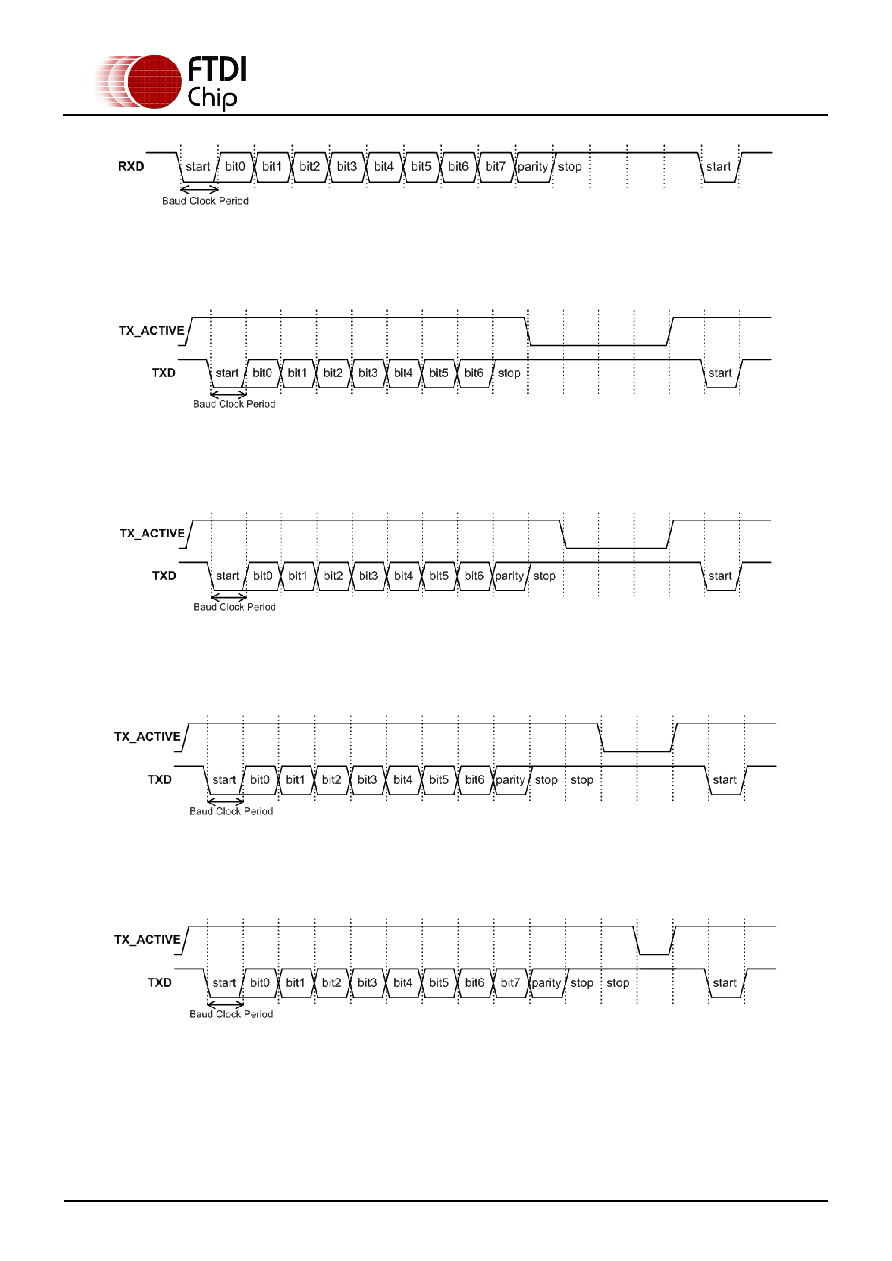

Figure 5.3 UART RX Waveform consist of 8 data bits, 1 optional parity bit and 1 stop bit
Figure 5.4 UART TX Waveform consist of 7 data bits, no parity bit and 1 stop bit
Figure 5.5 UART TX Waveform consist of 7 data bits, 1 optional parity bit and 1 stop bit
Figure 5.6 UART TX Waveform consisting 7 data bits, 1 optional parity bit and 2 stop bits
Figure 5.7 UART TX Waveform consisting 8 data bits, 1 optional parity bit and 2 stop bits
TX_ACTIVE is default function of the pin DIO0 as the transmitting indicator for UART; this output may be
used in RS485 designs to control the transmitting of the line driver.
