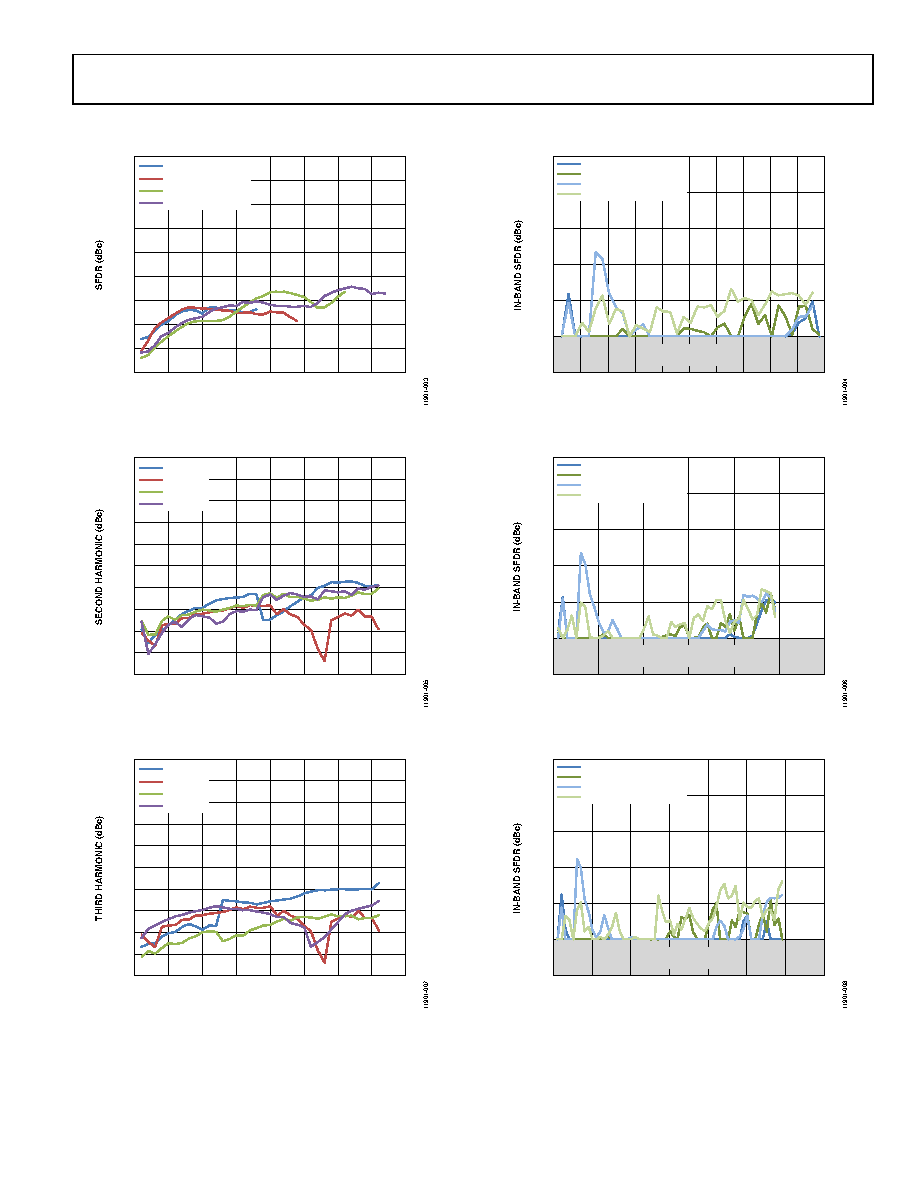

16 / 73 page  Data Sheet AD9142A TYPICAL PERFORMANCE CHARACTERISTICS Figure 3. Single Tone (0 dBFS) SFDR vs. fOUT in the First Nyquist Zone over fDAC Figure 4. Single Tone Second Harmonic vs. fOUT in the First Nyquist Zone over Digital Back Off, fDAC = 1474.56 MHz Figure 5. Single Tone Third Harmonic vs. fOUT in the First Nyquist Zone over Digital Back Off, fDAC = 1474.56 MHz Figure 6. In-Band, Single Tone SFDR (Excluding Second Harmonic) vs. fOUT in 80 MHz and 300 MHz Bandwidths, fDAC = 737.28 MHz Figure 7. In-Band, Single Tone SFDR (Excluding Second Harmonic) vs. fOUT in 80 MHz and 300 MHz BW, fDAC = 983.04 MHz Figure 8. In-Band, Single Tone SFDR (Excluding Second Harmonic) vs. fOUT in 80 MHz and 300 MHz Bandwidths, fDAC = 1228.8 MHz 0 –90 –80 –70 –60 –50 –40 –30 –20 –10 0 100 200 300 400 500 600 700 800 fOUT (MHz) fDAC = 737.28MHz fDAC = 983.04MHz fDAC = 1228.8MHz fDAC = 1474.56MHz 0 –100 –90 –80 –70 –60 –50 –40 –30 –20 –10 0 100 200 300 400 500 600 700 800 fOUT (MHz) 0dBFS –6dBFS –12dBFS –16dBFS 0 –100 –90 –80 –70 –60 –50 –40 –30 –20 –10 0 100 200 300 400 500 600 700 800 fOUT (MHz) 0dBFS –6dBFS –12dBFS –16dBFS –60 < –85 –85 –80 –75 –70 –65 0 20 40 60 80 100 140 180 120 160 200 fOUT (MHz) BW = 80MHz, –6dBFS BW = 80MHz, –12dBFS BW = 300MHz, –6dBFS BW = 300MHz, –12dBFS –85 MEANS ≤ –85 –60 < –85 –85 –80 –75 –70 –65 0 300 250 200 150 100 50 fOUT (MHz) BW = 80MHz, –6dBFS BW = 80MHz, –12dBFS BW = 300MHz, –6dBFS BW = 300MHz, –12dBFS –85 MEANS ≤ –85 –60 < –85 –85 –80 –75 –70 –65 0 350 300 250 200 150 100 50 fOUT (MHz) BW = 80MHz, –6dBFS BW = 80MHz, –12dBFS BW = 300MHz, –6dBFS BW = 300MHz, –12dBFS –85 MEANS ≤ –85 Rev. A | Page 15 of 72 |
|
