Clock provided by CC1021
FSK modulating signal (Manchester
encoded), internal in CC1021
Data provided by microcontroller
Transmitter side:
Clock provided by CC1021
Demodulated signal (Manchester
encoded), internal in CC1021
Data provided by CC1021
DCLK
DIO
“RF”
“RF”
DCLK
DIO
Receiver side:
Clock provided by CC1021
FSK modulating signal (Manchester
encoded), internal in CC1021
Data provided by microcontroller
Transmitter side:
Clock provided by CC1021
Demodulated signal (Manchester
encoded), internal in CC1021
Data provided by CC1021
DCLK
DIO
“RF”
“RF”
DCLK
DIO
Receiver side:
Clock provided by CC1021
FSK modulating signal (NRZ),
internal in CC1021
Data provided by microcontroller
Transmitter side:
Clock provided by CC1021
Demodulated signal (NRZ),
internal in CC1021
Data provided by CC1021
DCLK
DIO
“RF”
“RF”
DCLK
DIO
Receiver side:
Clock provided by CC1021
FSK modulating signal (NRZ),
internal in CC1021
Data provided by microcontroller
Transmitter side:
Clock provided by CC1021
Demodulated signal (NRZ),
internal in CC1021
Data provided by CC1021
DCLK
DIO
“RF”
“RF”
DCLK
DIO
Receiver side:
Not Recommended for New Designs NRND
CC1021
SWRS045D – JANUARY 2006 – REVISED JANUARY 2015
www.ti.com

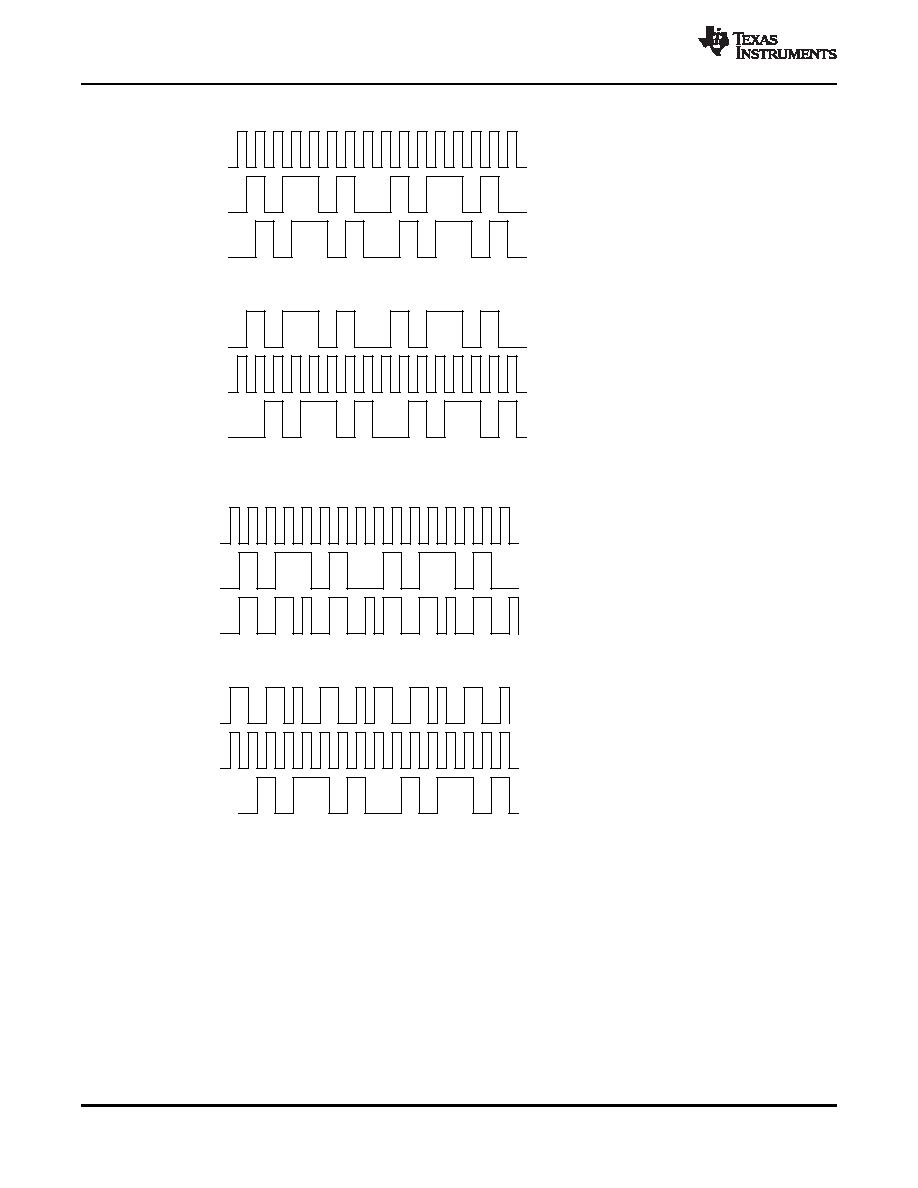

Figure 5-6. Synchronous NRZ Mode (SEP_DI_DO = 0)
Figure 5-7. Synchronous Manchester Encoded Mode (SEP_DI_DO = 0)
22
Detailed Description
Copyright © 2006–2015, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: CC1021
