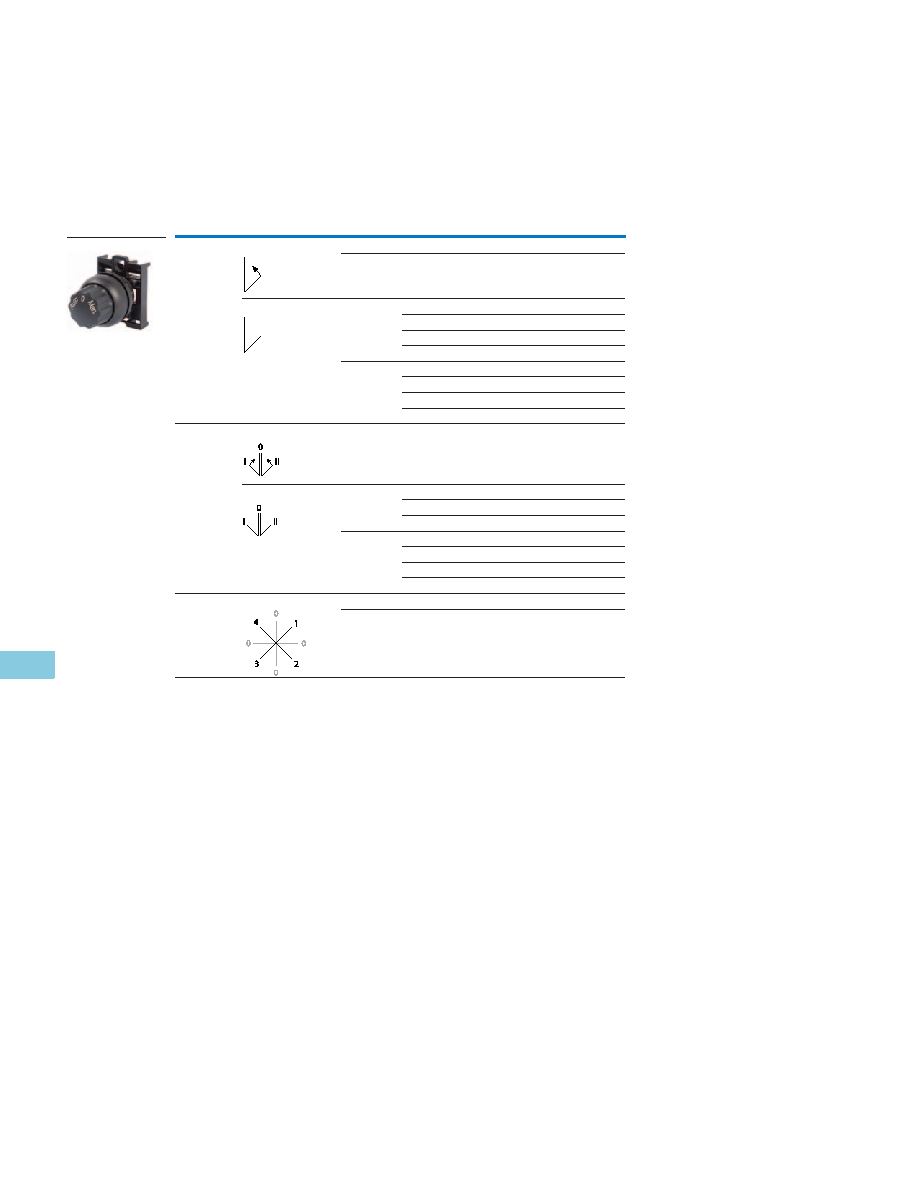

Pushbuttons and Indicating Lights CA04716001E—March 2009

www.eaton.com

47.4 Pushbuttons and Indicating Lights

M22 Modular Pushbuttons

Non-Illuminated Selector Switches

Components

Operators Only, Rotary Type

Notes

Includes contact block mounting adapter.

Momentary selector switches can be converted in the ﬁeld to maintained operation with the removal of a color

coded adapter. See Page 66.

When ordering, specify inscription per catalog number sufﬁx from the symbols library (see Pages 77–84) into the

Order Notes. For example, M22-WR3-ETCH; Order Notes: Mark with symbol X88, Line item #_.

Discount Symbol: 1CD1.

Type

Switching Position

Bezel

Rotary Type

Catalog

Number

Price

U.S. $

2-Position

Momentary

Silver

I-O

M22-W

19.40

Black

I-O

M22S-W

17.90

Maintained

Silver

—

M22-WR

15.40

Custom

M22-WR-ETCH

15.40

AUTO-HAND

M22-WR-X91

15.40

II-I

M22-WR-X92

15.40

Black

—

M22S-WR

13.90

Custom

M22S-WR-ETCH

13.90

AUTO-HAND

M22S-WR-X91

13.90

II-I

M22S-WR-X92

13.90

3-Position

Momentary

Silver

I-O-II

M22-W3

19.40

Maintained

Silver

—

M22-WR3

14.40

Custom

M22-WR3-ETCH

15.40

AUTO-O-MAN

M22-WR3-X94

15.40

Black

I-O-II

M22S-W3

17.90

—

M22S-WR3

12.90

Custom

M22S-WR3-ETCH

13.90

AUTO-O-MAN

M22S-WR3-X94

13.90

4-Position

Maintained

Silver

—

M22-WR4

45.00

Black

—

M22S-WR4

43.50

M22S-WR3-X94
